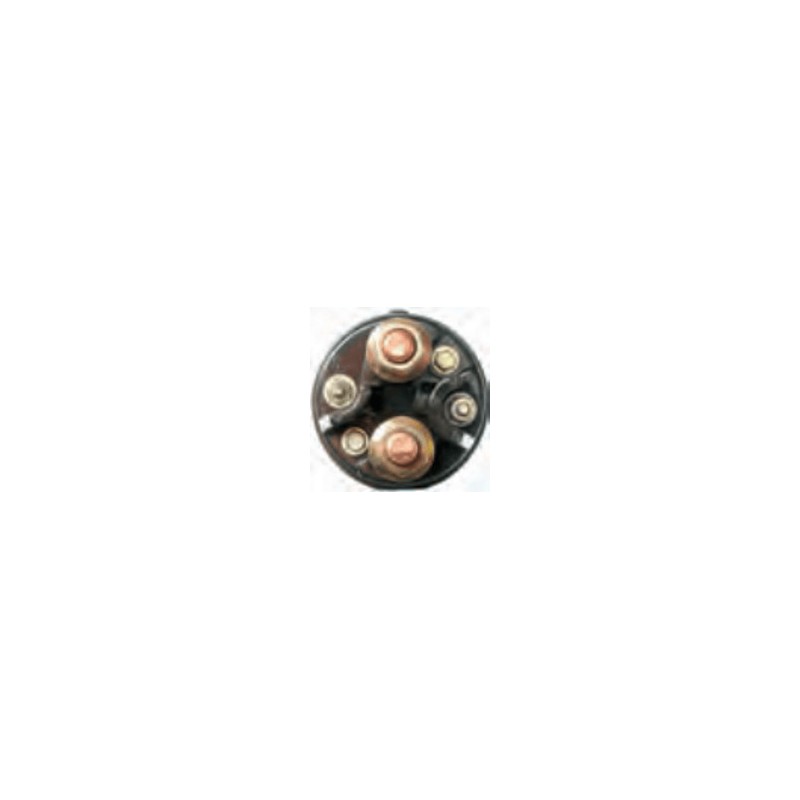

Solenoid for starter DELCO REMY 1990330 / 1990331 / 1990332
Solenoid for starter DELCO REMY 1990330 / 1990331 / 1990332 / 1990499 / 1993701 / 1993702
1993707 / 1993711 / 1993729 / 1993732 / 1993741 / 1993742 / 37MT
More info
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |

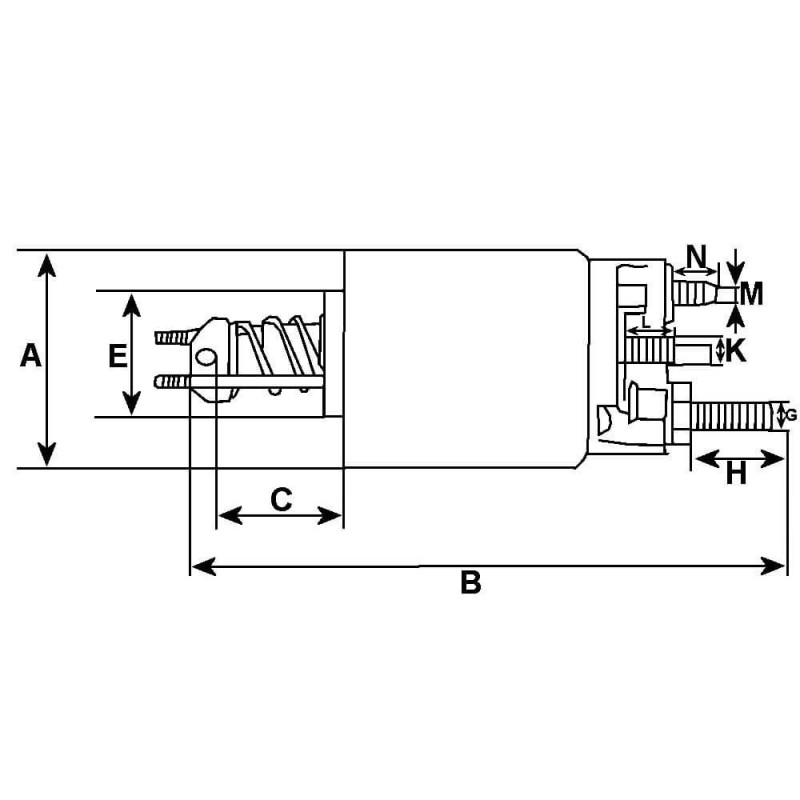

Physical Information | ||
|---|---|---|
| A | DE mm | 68.75 |
| B | Total length mm | 176.80 |
Support | ||
|---|---|---|
| M | Bolt Coil | 1/2" UNC |
| D | OD/cover mm | 77.15 |
| E | DI capot mm | 33.20 |
| G | B+ | 1/2" UNC |
| I | Kl. 15a/mm | 10-32 UNF |
| K | Kl. 50/mm | 10-32 UNF |
| No./terminals | 4 | |
generic brand
Replacing | |
|---|---|
| 1115594 | DELCO REMY |
| 1115604 | DELCO REMY |
| 1115605 | DELCO REMY |
| zm-459 | ZM |
| ZM-7459 | ZM |
for starter :
Case 104213A2, A169694; CATERPILLAR 9L2507
CUMMINS 3910644; DELCO REMY 10461015, 10461015, 10461016, 10461018, 10461040, 1990330, 1990331, 1990332, 1990499, 1993701, 1993702, 1993707, 1993711, 1993721, 1993729, 1993732, 1993741, 1993742, 1993744, 1993771, 1993773, 1993829, 1993861, 1993862, 1993906
JOHN DEERE SE501455, SE501455; PRESTOLITE MS3-500, MS3-500, MS3-500, MS3-500
