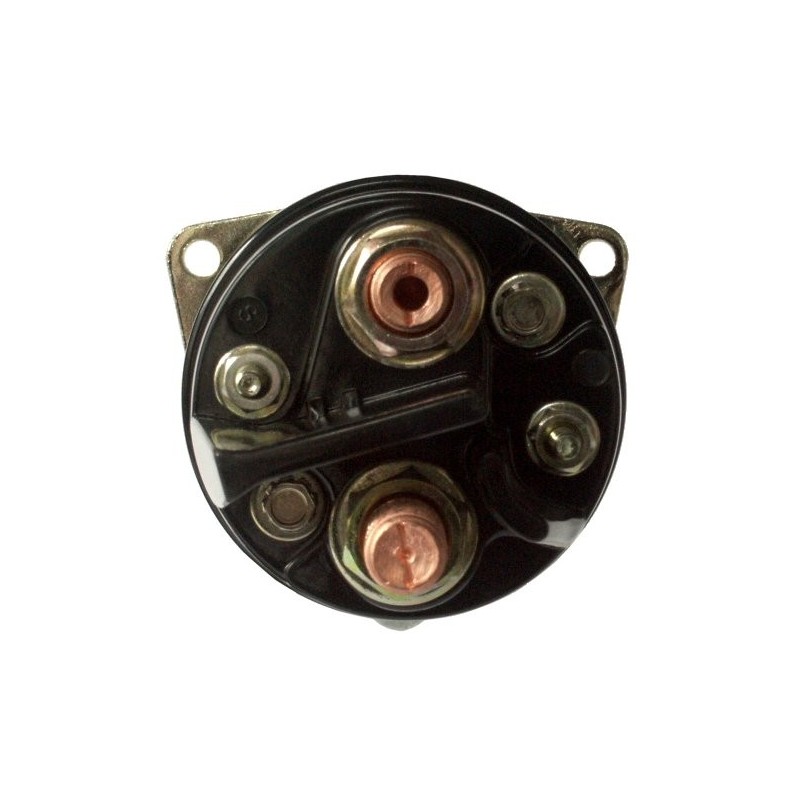

Solenoid for starter DELCO REMY 37MT / 10478805 / 10478927

Information:

Voltage 12

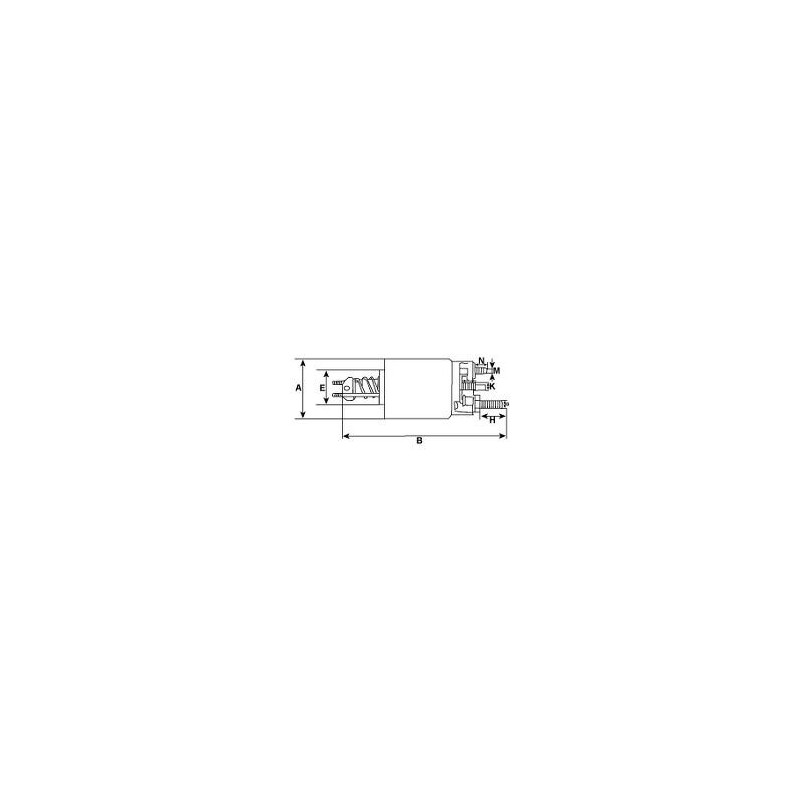

A = DE 69.00

B = Total length mm 176.45

Bolt Coil 1/2" UNC

D = DE/capot 70.25

E = DI capot 32.35

B+ 1/2" UNC

Kl. 15a/mm 10-32 UNF

Kl. 50/mm 10-32 UNF

Bolt Coil l. 9.15

Height/kl. 15a 11.70

For 37MT

Height/kl. 50 15.95

No./terminals 4

for starter DELCO REMY :

 10478805
 10478927
 10478928
 10478929
 10478930
 10478957
 10479014
 10479015
 10479016
 10479034
 10479054
 10479135
 1993851
 1993894
 1993956
 1993957
 1993958
 1993967
 1993981
 1993988
 1993992

Allis-Chalmers 72163150-5; CATERPILLAR 1463505, 6V4212, 6V4237, 7X5987, 7X5996, 9X1490; CUMMINS 3675167RX; DELCO REMY 10461299, 10461416, 10478805, 10478927, 10478928, 10478929, 10478930, 10478957, 10479014, 10479015, 10479016, 10479034, 10479054, 10479186, 1993851, 1993894, 1993956, 1993957, 1993958, 1993967, 1993981, 1993988, 1993992; JOHN DEERE RE37961, RE41755, RE52955, RE53217, RE65190, SE501409, TY6729; NEW HOLLAND 9802720, 9842667
