Rotor for alternator VALEO SG12B038 / SG14B010 / SG14B011 / SG14B012
for alternator VALEO 2542494, 2542494A, 2542496,2542496B, 2542496C, 2542497, 2542497B,
2542497C, 2542587, 2542739, 2542739A, 2542739B,SG14B012 SP, SG14B013, SG14B016, SG14B019, SG14B020, SG14B022
More info

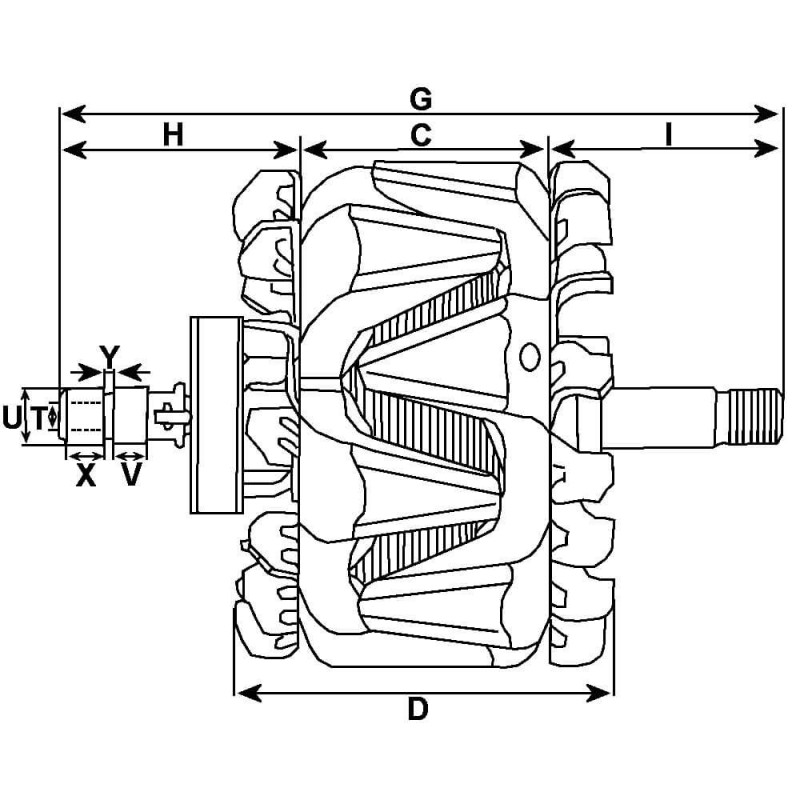

Core information | ||
|---|---|---|
| A | OD mm | 105.30 |
| C | Height mm | 54.00 |
| Cooling fan | w/ | |
| Rotation | CW | |
Shaft information | ||
|---|---|---|
| G | Total length mm | 148.50 |
| J | Shaft dia. | 17.00 |
| M | Thread size | M16-1.50 |
| N | Thread length mm | 11.00 |
Coil information | ||
|---|---|---|
| Windings | 370 | |
Slip ring information | ||
|---|---|---|
| T | ID mm | 7.00 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 140 | |
generic brand
Replacing | ||
|---|---|---|
| 593569 | Valeo | |
for alternator :
Audi, Volkswagen 028-903-029R, 028-903-029RX, 06B 903 016 AF, 06B 903 016AA, 06C-903-016B, 06C-903-016BX, 06D 903 016 A, 078-903-016AC, 078-903-018, 078-903-018AX, 078-903-018AX, 078-903-018X, 078-903-018X, 4Z7-903-015, 4Z7-903-015; BMW 12-31-7-530-086, 12-31-7-532-627, 12-31-7-551-252, 12-31-7-551-253; Dacia 7701477001; Renault 6001548553, 6001548554, 7701473614, 7711134313, 7711497093, 8200022774, 8200523616; Valeo SG12B038, SG14B010, SG14B011, SG14B012, SG14B012 SP, SG14B013, SG14B016, SG14B019, SG14B020, SG14B022
