Rectifier for alternator :
0123320043, 0123320044, 0123320045, 0123320046, 0123320047, 0123320049, 0123320051, 0123320057, 0123320061, 0123320062, 0123320065, 0123325007, 0123335002, 0123335003, 0123335004, 0123335005, 0123335006, 0123335008, 0123340006, 9123320045, 9123335002

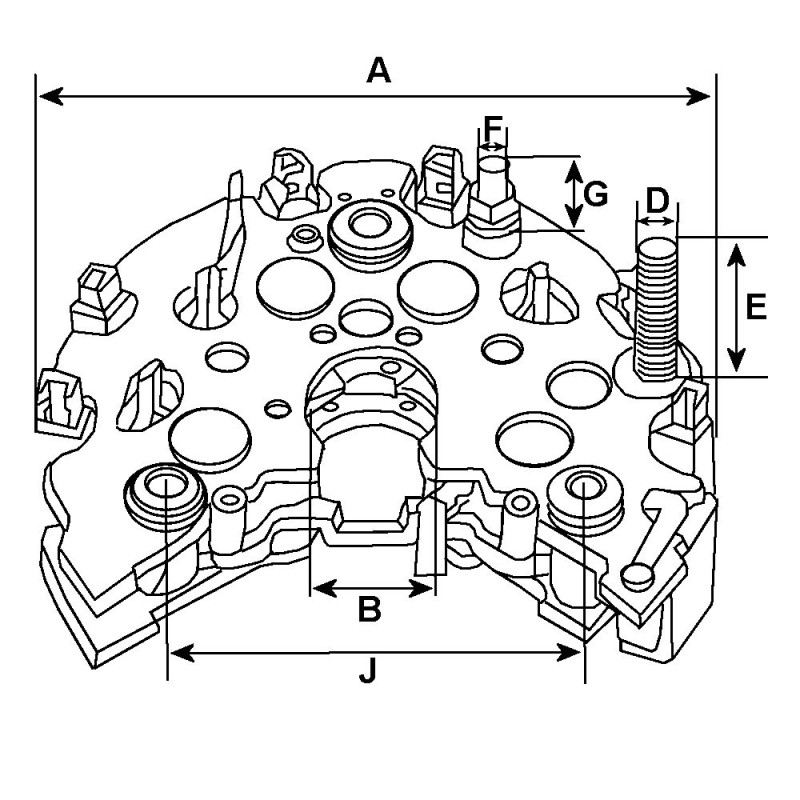

Physical Information | ||
|---|---|---|
| B+ type | Vis | |
| A | DE mm | 112.00 |
| B | DI mm | 22.75 |
| J | Mount. dist. | 65.00 |
| D | B+/Thread | M8/23.50 |
| F | D+/Threaded | M5/12.50 |
| H | Thread W | 6.30 |
| Diode type | Avalanche | |
| Capacitor | With | |
| Plug D+ | Vis | |
| Tipo W | Spade | |
| Number of Diodes | 6 | |
Replacing | ||
|---|---|---|
| 1127319510 | BOSCH | |
| 1127319593 | BOSCH | |
| 1127319729 | BOSCH | |
| 1127319730 | BOSCH | |
| 1127320807 | BOSCH | |
| 1127320844 | BOSCH | |
| 1127320864 | BOSCH | |
| 135175 | CARGO | |
| RB-121H | MOBILETRON | |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Diode A | 50 | |
generic brand
= IBR844
for alternator :
| A0005 | AS-PL | 8548943 | SAAB |
| A0032 | AS-PL | 8549438 | SAAB |
| A0032(P) | AS-PL | 4434056 | SCANIA |
| A0114 | AS-PL | ALT2031 | UNIPOINT |
| A0133 | AS-PL | ALT2033 | UNIPOINT |
| A0172 | AS-PL | ALT2034 | UNIPOINT |
| A0263 | AS-PL | ||
| A0385 | AS-PL | ||
| 0113320040 | BOSCH | ||
| 0120485011 | BOSCH | ||
| 0120485012 | BOSCH | ||
| 0120485022 | BOSCH | ||
| 0123310005 | BOSCH | ||
| 0123310008 | BOSCH | ||
| 0123310041 | BOSCH | ||
| 0123315005 | BOSCH | ||
| 0123315501 | BOSCH | ||
| 0123315506 | BOSCH | ||
| 0123320010 | BOSCH | ||
| 0123320011 | BOSCH | ||
| 0123320029 | BOSCH | ||
| 0123320039 | BOSCH | ||
| 0123320040 | BOSCH | ||
| 0123320041 | BOSCH | ||
| 0123320042 | BOSCH | ||
| 0123320043 | BOSCH | ||
| 0123320044 | BOSCH | ||
| 0123320045 | BOSCH | ||
| 0123320046 | BOSCH | ||
| 0123320047 | BOSCH | ||
| 0123320049 | BOSCH | ||
| 0123320051 | BOSCH | ||
| 0123320057 | BOSCH | ||
| 0123320060 | BOSCH | ||
| 0123320061 | BOSCH | ||
| 0123320062 | BOSCH | ||
| 0123320065 | BOSCH | ||
| 0123325007 | BOSCH | ||
| 0123335002 | BOSCH | ||
| 0123335003 | BOSCH | ||
| 0123335004 | BOSCH | ||
| 0123335005 | BOSCH | ||
| 0123335006 | BOSCH | ||
| 0123335008 | BOSCH | ||
| 0123340006 | BOSCH | ||
| 0123340007 | BOSCH | ||
| 0132315501 | BOSCH | ||
| 0986036810 | BOSCH | ||
| 0986036820 | BOSCH | ||
| 0986038160 | BOSCH | ||
| 0986038230 | BOSCH | ||
| 0986038960 | BOSCH | ||
| 9123320045 | BOSCH | ||
| 9123335002 | BOSCH | ||
| 9123369044 | BOSCH |
