Pulley for alternator BOSCH 0123320041 / 0123320046 / 0123320049

Information:

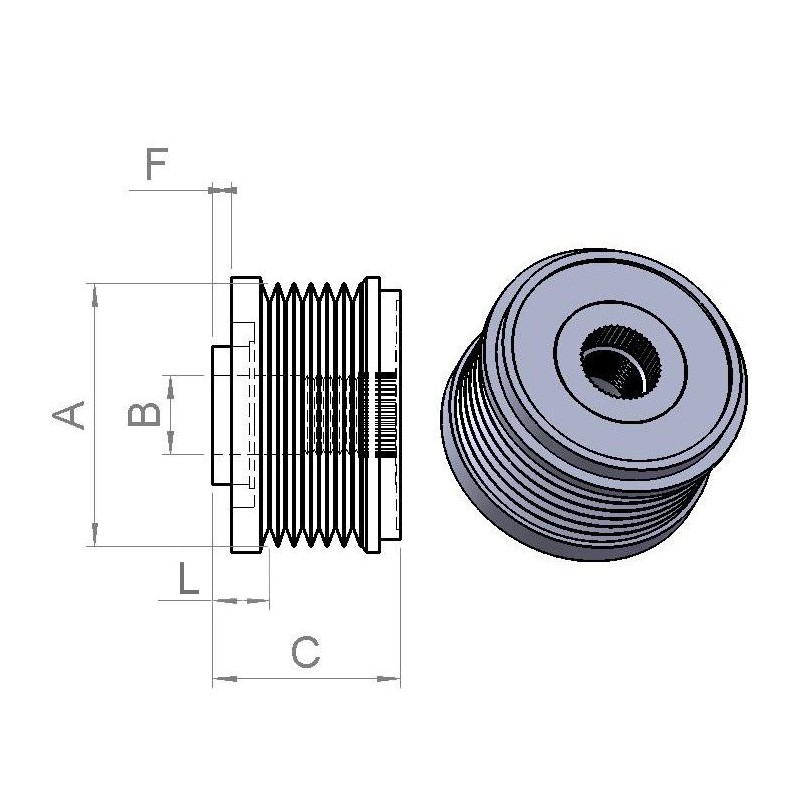

A = DE mm 56.00

C = Height mm 42.80/3.50

Pulley type Serpentine Pulley/ Freewheel pulley

Grooves 6

Belt type Multi Belt

Fan Without

Free run With

B = Bore dia. 17.00

F = Distance / Back 1.00

Thread size M16-1.50

Rotation Clockwise

L = Measurement 1. groove 15.60/19.10

brand / transpo

= BOSCH f00m991391 / 6033gd5036 / 1126601568

= INA f-225644 / F-225644.04 / F-225644.05 / F-225644.06 / F-225644.07 / f-225644.4 / f-225644.5

 f-225644.6 / f-225644.7 / f-228215 / F-228215.01 / F-228215.02 / f-228215.03 / F-228215.04

 f-228215.2 / F-561338

= LUK 5350003000 / 535000310 / 5350013000 / 535001310

= MERCEDES-BENZ 6021500060 / 6041500060

for alternator BOSCH :

0123320041

0123320046

0123320049

0123340007

0123510038

0123510049

0123510072

0123510080

0123510101

0124325024

for alternator VALEO :

2541995

2542411

2542473

a13vi222

sg10b016

sg10b020
