Dynastarter replacing J38-81100-10-00 / J38-81100-11 club car
€199.90

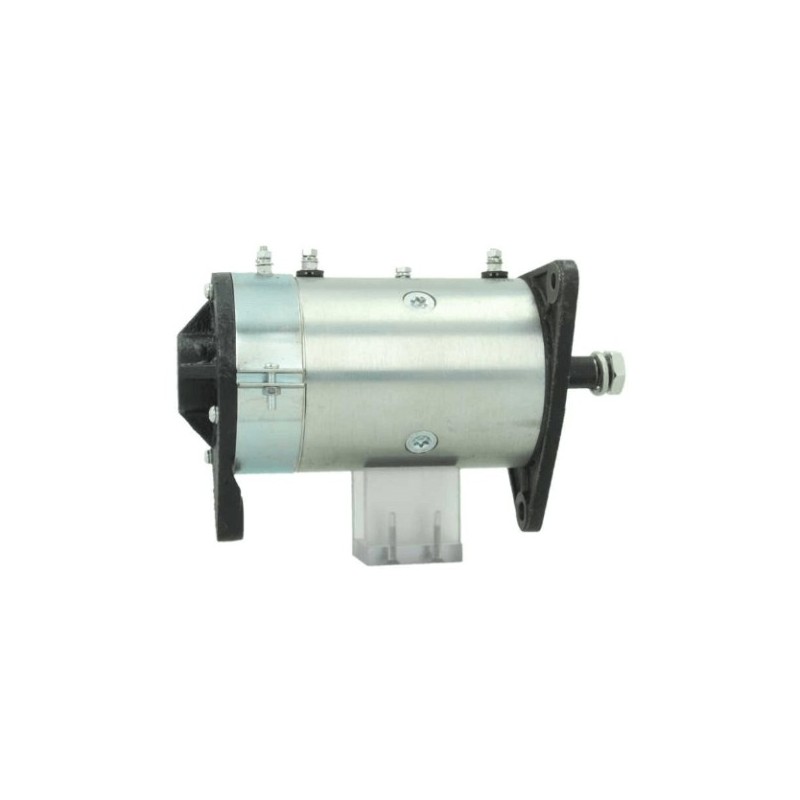

Dynastarter replacing 0010300003 / 0010350005 / 0010350102
w670001011070
BE SURE TO CHECK YOUR CONTROLLER BEFORE INSTALLATION
| 06030 | Efel |
| 110061 | Cargo |
| 1101689 | Delco |
| 1101945 | Delco |
| 1101960 | Delco |
| 1101970 | Delco |
| 1101980 | Delco |
| 1101992 | Delco |
| 1101995 | Delco |
| 130047 | Cargo |
| 19025601 | Remy |
| 19025602 | Remy |
the controller is under the reference w235781
Features
generic brand

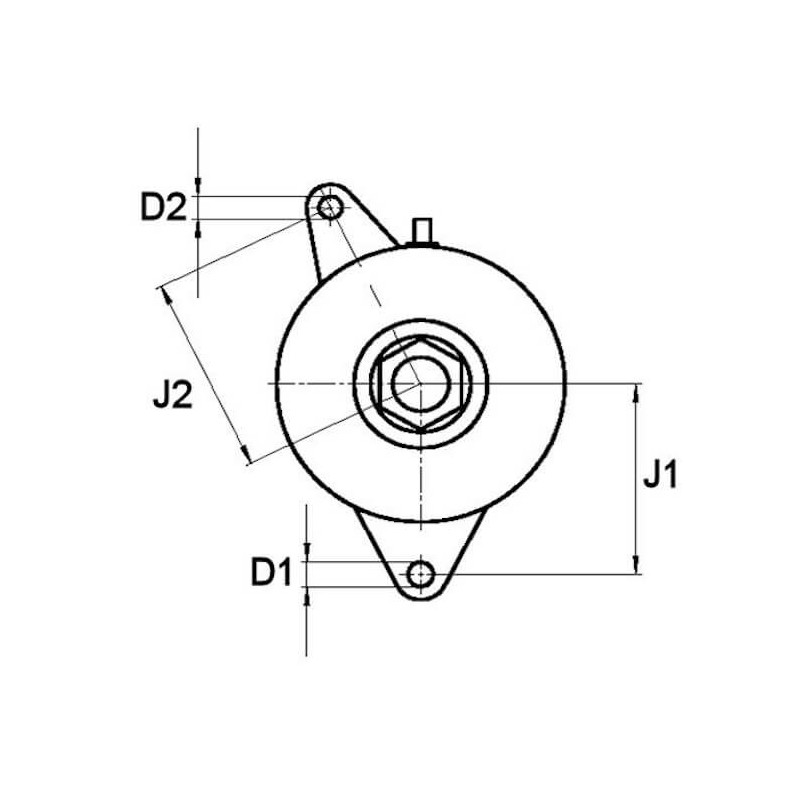

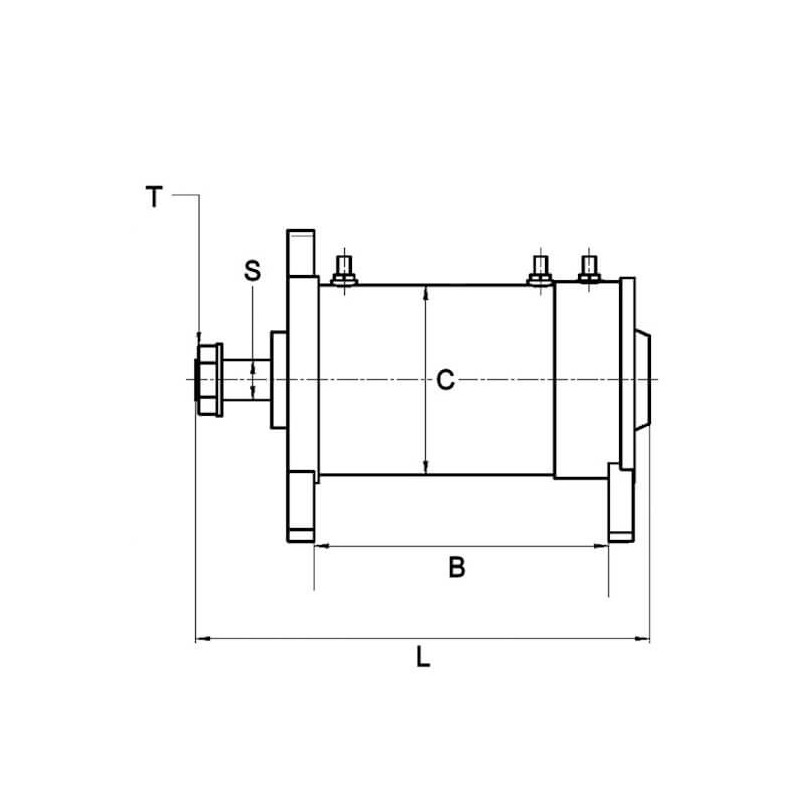

Physical information | ||
|---|---|---|
| B | Mount. bracket dist. | 150.00 |
| D | Mount. hole d1 | 10.30 |
| D | Mount. hole d2 | 8.30 |
| D | Mount. hole d3 | 10.00 |
| C | OD mm | 102.50 |
| L | Length mm | 237.00 |
| Pulley | w/o | |
| Regulator plug | w/o | |
| S | Shaft dia. | 17.00 |
| T | Thread size | M16-1.00 |
| Rotation | CW | |
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Amp | 11 | |
| kW | 0.9 | |
| Insulated return | No | |
replacing
| 0010300001 | Bosch |
| 0010300003 | Bosch |
| 0010300101 | Bosch |
| 0010350005 | Bosch |
| 0010350102 | Bosch |
| 06030 | Efel |
| 110061 | Cargo |
| 1101689 | Delco |
| 1101945 | Delco |
| 1101960 | Delco |
| 1101970 | Delco |
| 1101980 | Delco |
| 1101992 | Delco |
| 1101995 | Delco |
| 130047 | Cargo |
| 19025601 | Remy |
| 19025602 | Remy |
| 6030 | Efel |
| 670001011 | PSH |
| 861096 | Prestolite |
| DC1012 | HC-Parts |
| DST10004 | Wood Auto |
| DST10005 | Wood Auto |
| RNL19025602 | RNL |
| WOODST10004 | Wood Auto |
