Drive for starter DELCO REMY 10465293 / 8000193 / 8000321 / 9000786 / 9000798

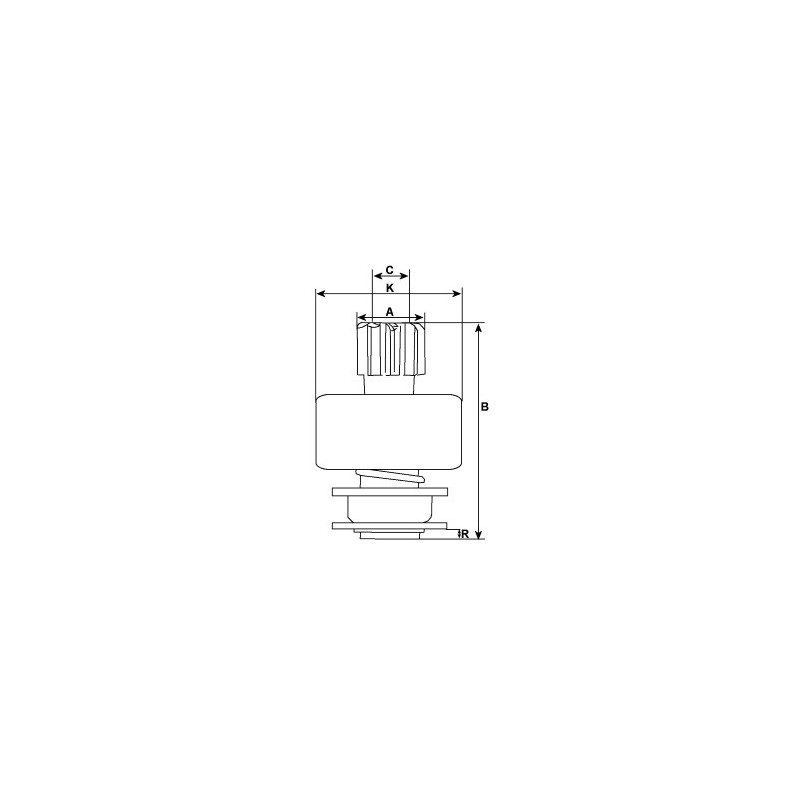

Physical Information
OD mm 29.70
B Total length mm 61.55
C DI mm 12.00
    No./teeth 11
    Grooves A 6
K OD/ housing mm 46.30
    Rotation Cr
    Key Without
    Locking Without

generic brand

replaces delco 10475616

for starter :

AM General 6007674; CLARK 2817056, 923045, 930707; DAEWOO A232158

DELCO REMY 10465167, 10465293, 10465309, 10465385, 10465386, 10465461, 10465554, 12301334, 19136222, 19136231, 21019219, 8000193, 8000599, 8000727, 9000786, 9000796, 9000798, 9000804, 9000806, 9000819, 9000820, 9000821, 9000822, 9000834, 9000835, 9000850, 9000851, 9000853, 9000860, 9000861, 9000863, 9000866, 9000886, 9000899, 9000945, CM9806; GM 10465167, 10465293, 10465309, 10465385, 10465386, 10465554, 12560019, 12563829, 12563830, 12563852, 12563907, 12563970, 12564088, 12570230, 33000173

HYSTER 1457047, 1486530, 1486530; ISUZU 8104651670; LETRIKA Old IS 9313, IS 9313; Marine Power 0172-000, 0174-000; MERCURY MARINE 50-12121A2, 50-806963A2, 50-806963A4, 50-806964A2, 50-806964A3, 50-806964A4, 50-806965A2, 50-806965A4, 50-807907, 50-864340A2; OPEL 12606096; Original Reference Number 09000835, RM33000173; OUTBOARD MARINE CORP (OMC) 3850526, 3854750, 3854751, 3855882, 3856003, 3856004, 988217

PLEASURECRAFT MARINE RA122015; PRESTOLITE 35261180, 35261180, 35261180, 35261180; VOLVO-PENTA 3587625-10, 3854750-1, 3854751-9, 3856003-3, 3856004-1, 3860764; Yale 5800022-10, 5800197-25
