Armature for starter LUCAS 26148 / 26186 / 26196 / 26213A / 26215H
Armature for starter LUCAS 26148, 26157, 26167, 26167A/D, 26167E/L, 26196, 26215, 26215A/F, 26215H, 26236L, 26238, 26259L/N, 26264H/K, 26275, 26275A, 26275E, 26275F, 26275H, 26275J, 26275K, 26278, 26278A/F, 26278H, 26278U, 26280, 26280D, 26280H, 26283, 26283H/K, 26287F/J, 26288F/J, 26301, 26301A/E
More info
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 2.1 | |

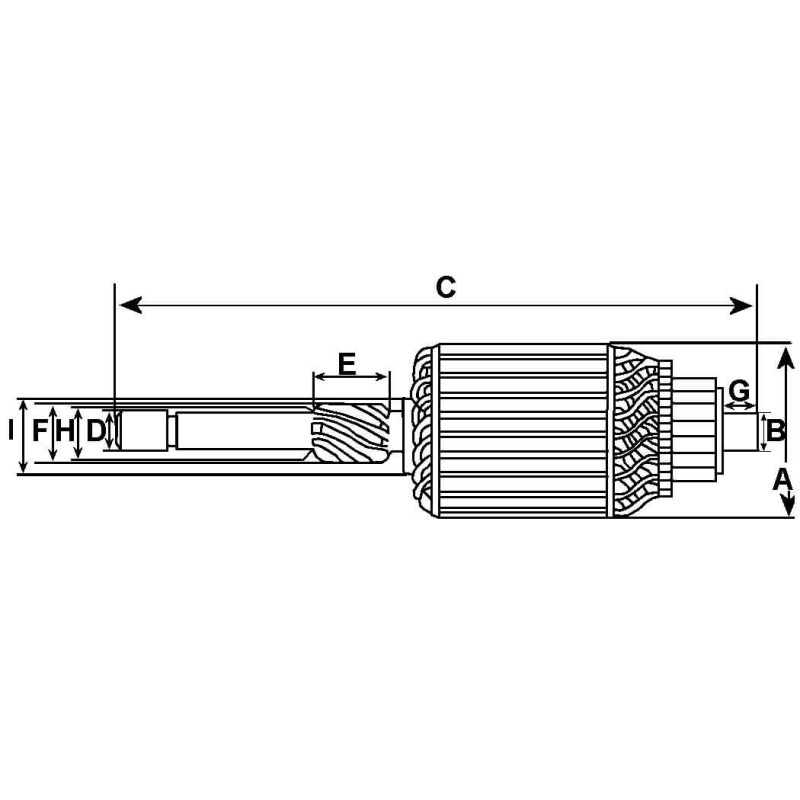

Physical information | ||
|---|---|---|
| A | Core thickness | 74.50 |
| C | Shaft length | 303.60 |
| No./splines | 12 | |
| Rotation | CW | |
| E | Bar dist. | 3.00 |
| F | Bar length | 8.60 |
| G | Bar cross dist. | 49.60 |
| H | Height/bar lane | 26.30 |
| I | Height/bar | 6.40 |
| No./bars | 23 | |
generic brand
replacing
LUCAS 54247379, 54292953, 60251462, TIB108
for starter :
Case 140898A1, E36646, K763904, K89772, K913007; FORD D4NN-11000-A, D8NN-11000-DA; FORD ENGINEERING D4NN-A, D8NN-DA;LAND ROVER ADU3781
LETRIKA (ISKRA) Tech. AZJ3148, AZJ3148, AZJ3151, AZJ3198, AZJ3203, AZJ3204, AZJ3204, AZJ3205, AZJ3205, AZJ3447
Leyland Auto S122, S122; Lister Petter 204-13270
LUCAS 26148, 26157, 26167, 26167A/D, 26167E/L, 26196, 26215, 26215A/F, 26215H, 26236L, 26238, 26259L/N, 26264H/K, 26275, 26275A, 26275E, 26275F, 26275H, 26275J, 26275K, 26278, 26278A/F, 26278H, 26278U, 26280, 26280D, 26280H, 26283, 26283H/K, 26287F/J, 26288F/J, 26301, 26301A/E, 26301H, 26306, 26306B, 26306E, 26364, 26364A/F, 26370, 26371, 26371A/D, 26371E/F, 26375, 26375A/D, 26400, 26400A, 26400A/B, 26400A/B, 26400B, 26400D, 26412, 26412A, 26413, 26413A, 26422, 26422A, 26435, 26435A, 26925, 26925A, 27409, 27409A/B, 27411, 27411A/B, 27412, 27412A, 27412B, 27412C, 27412D, 27413, 27413A/D, 27415, 27416, 27416D, 27417, 27417A/B, 27417A/E, 27421, 27421A, 27421A/B, 27423, 27425, 27425B, 27426, 27426A/D, 27431, 27431A, 27432, 27432A, 27433, 27433A, 27435, 27435A, 27446, 27452, 27459, 27459A, 27460, 27460A, 27468, 27469, 27470, 27473, 27474, 27475, 27478, 27479, 27480, 27482, 27486, 27487, 27488, 27490, NSB503, NSB509; MAGNETON 9-142-720, 9-142-728, 9-142-804, 9-142-804; MAGNETI MARELLI 063227470010, 063227486010, 063227488010, 63227421, 63227470, 63227486, 63227487, MSN178, MSN180, MSN184
MASSEY FERGUSON 1015-181-M91, 1447-586-M91, 1680-065-M1, 1680064M1, 888346M1, 888346M2, 8972-69-M1; NEW HOLLAND 83943890; PERKINS Engine 2873121, 2873121T, 2873125, 2873141, 2873188, 2873A010, 2873A010R, 2873A017, 2873A017R, 2873A101, 2873A102, 2873A103, 2873A104, 2873A104, 2873B149, 2873D003, 31179; PRESTOLITE 20500124, 20500190, 20500190, 20500261, 20500261, 66925051
