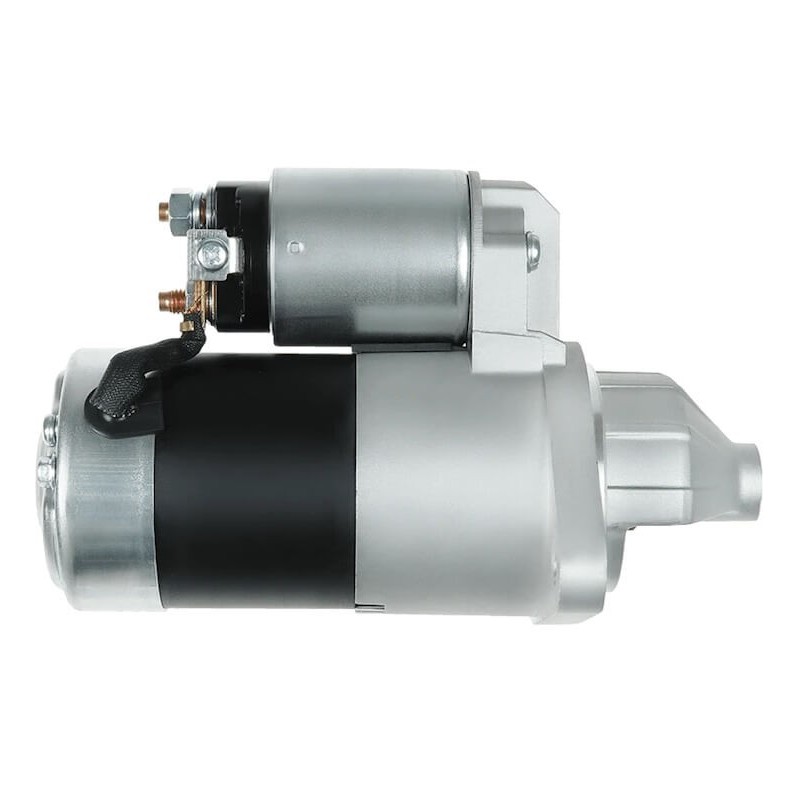

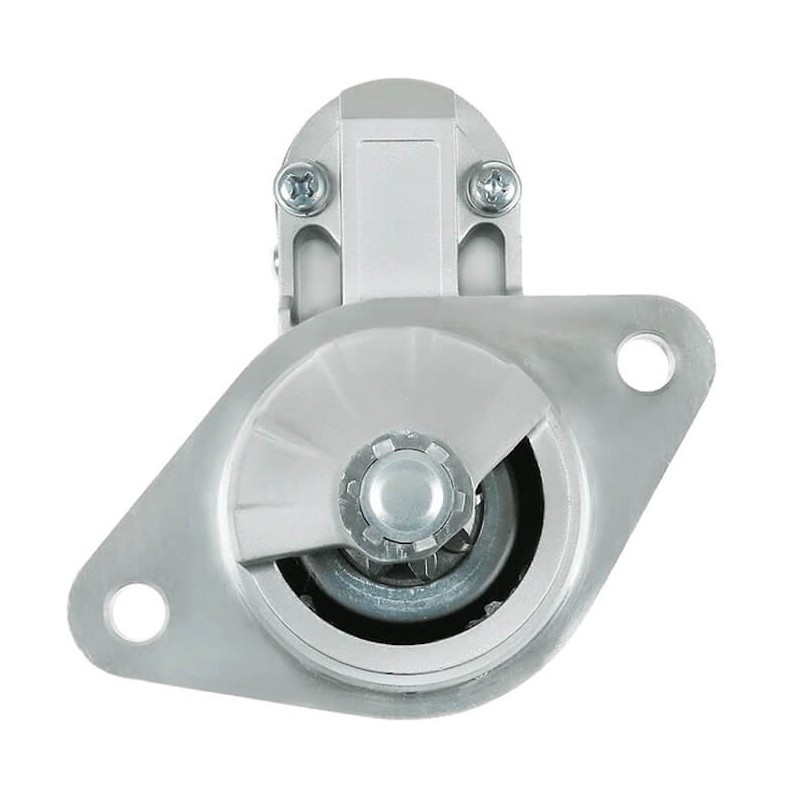

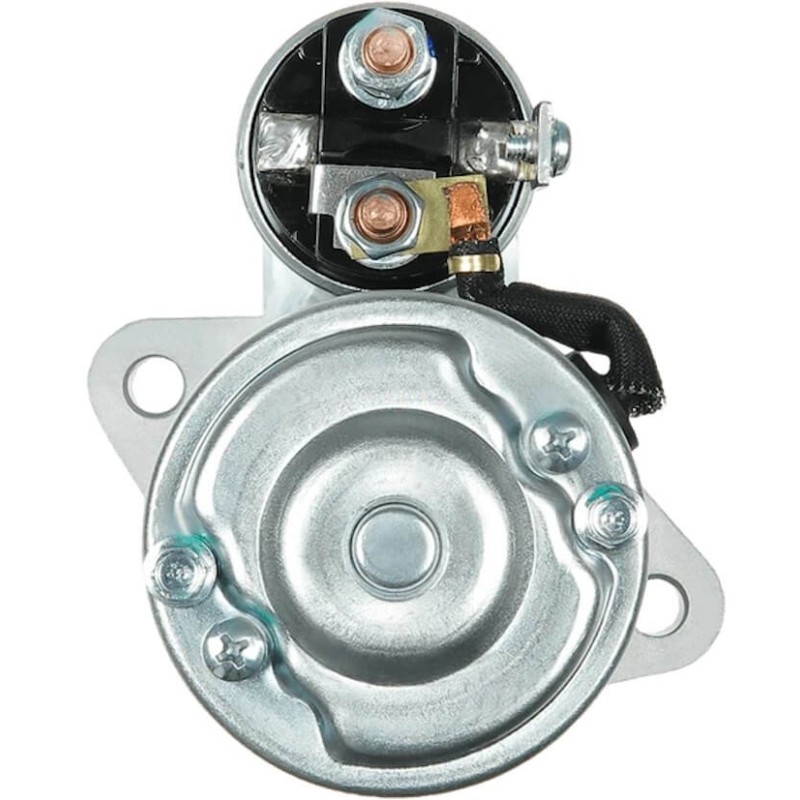

12-volt / 1 kW / 9-tooth starter motor for Yanmar 2GM20-F / 3GM30-F / 2GM-F
You can find the correct cross-references and applications in the tabs below.
Starter for YANMAR
= YANMAR 128170-77010 / 128170-77010d
= HITACHI S114-303 / S114-303a
Engine / Engine 1GM / 1GM10 / 2GM / 2GM20 / 2GMF / 2QM30 / 3GM / 3GM30 / 3GMD / 3GM30
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
| 104-10211 | ROBERT'S |
| 111706 | CARGO |
| 128170-77010 | YANMAR |
| 128170-77010D | YANMAR |
| 18209N | WAI |
| 18209R | WAI |
| 201145 | KUHNER |
| 201145V | KUHNER |
| 20445831 | REAL |
| 243-12124 | DIXIE |
| 25-1081 | ELSTOCK |
| 71-25-18209 | WILSON |
| 8531 | CEVAM |
| 88212343 | POWERMAX |
| 8EA737-681-001 | HELLA |
| 91-25-1103 | WILSON |
| 980.520.092 | WAI |
| CGB-23203 | AINDE |
| JS1145 | HC PARTS |
| LRS01128 | LUCAS |
| LRS1128 | LUCAS |
| MAV221380 | SIOM |
| S114-303A | HITACHI |
| STH1145 | KRAUF |
| STR23018 | WOODAUTO |
| STRL195 | 3EFFE |
| UD20458S | AS-PL |
| S2085S | AS-PL |
| S114-303 | HITACHI |
| STR3240 | ELECTROLOG |
| 980.520.092.461 | WAI |
| F032111706 | CARGO |
| S136.289 | WAI |
| S145.746 | WAI |
| AM-2303 | AUTO MAGNETO |
All of our alternators and starters are new and come with a two-year warranty.
About Us
WAGENDASS is a French company based north of Lyon.
WAGENDASS is a registered trademark recognized by the European Union.
Our Logistics
Thanks to our numerous warehouses across Europe and our partnerships with suppliers,
orders are shipped quickly via various carriers.
Product Quality
Our alternators and starters are sold new, come with a two-year warranty, and require no return of the old unit
to simplify the ordering process for the customer
there is therefore no need to return the old product
Our Suppliers
Thanks to our extensive experience in the electrical field
and a partnership spanning some forty years with our suppliers
we are able to ensure high-quality products for our customers
Electrical Information |
||
|---|---|---|
| Voltage | 12 | |
| KW | 1.0 | |

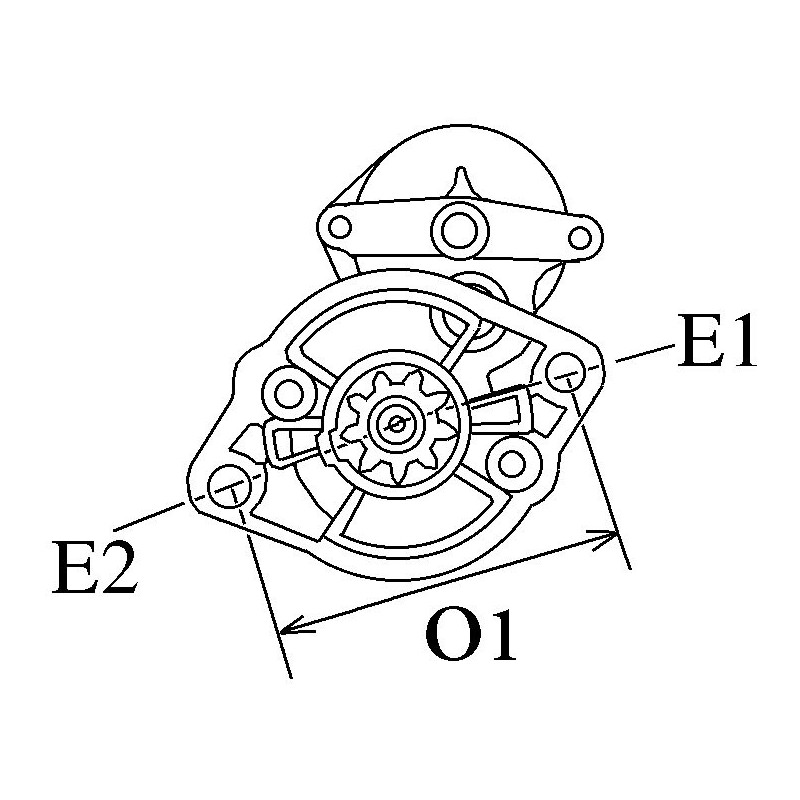

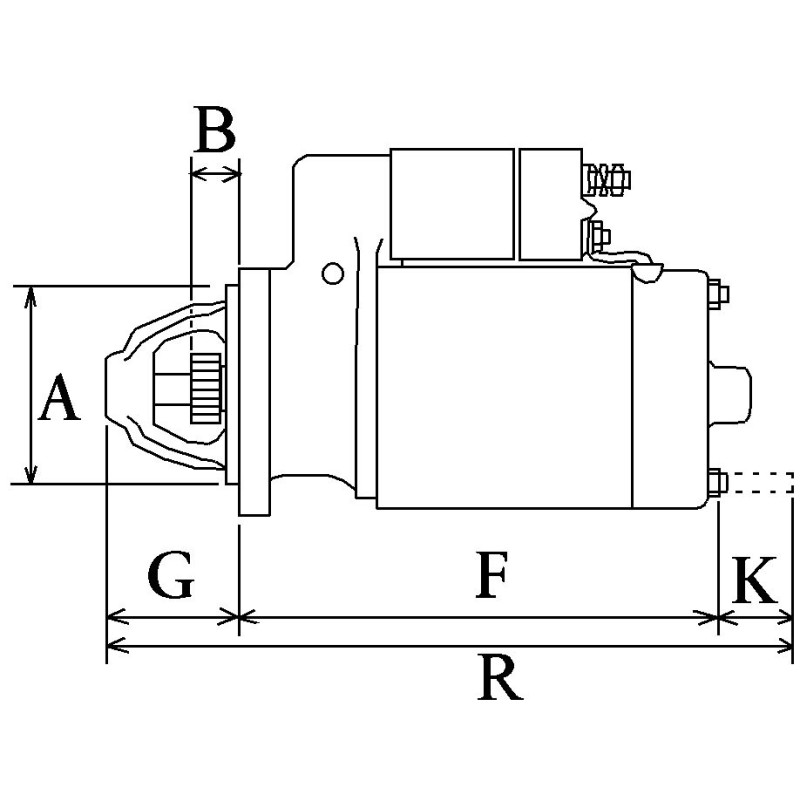

Physical Information |
||
|---|---|---|
| A | Mount flange | 70.00 |
| E | Mounting holes | 10.70 |
| E | Mounting holes 2 | 10.70 |
| B | Drive distance | 17.50 |
| F | Distance / Back | 150.00 |
| G | Distance / Front | 52.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Dd/gr |
| O | Distance mm | 109.70 |
| P | Rotation | CW |
| R | Total length mm | 206.00 |
Generic brand
fits :
|
Motor |
Type |
|
YANMAR |
1GM |
|
YANMAR |
2GM |
|
YANMAR |
3GM |
|
YANMAR Marine |
1GM |
|
YANMAR Marine |
1GM10 |
|
YANMAR Marine |
20GM |
|
YANMAR Marine |
2GM |
|
YANMAR Marine |
2GM20 |
|
YANMAR Marine |
2GMF |
|
YANMAR Marine |
30GM |
|
YANMAR Marine |
3GM30 |
|
YANMAR Marine |
3GMD |
|
YANMAR Marine |
3GMF |
|
YANMAR Marine |
GMF |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
| Brand | Model | Year |
| YANMAR | 2GM20-F | 01/01/84 |
| YANMAR | 3GM-F | 01.1980 - 12.1984 |
| YANMAR | 2GM | 01.1980 - 12.1984 |
| YANMAR | 3GM30-F | 01/01/84 |
| YANMAR | 2GM20 | 01/01/84 |
| YANMAR | 3GM | 01.1980 - 12.1984 |
| YANMAR | 3GM30 | 01/01/84 |
| YANMAR | 2GM-F | 01.1980 - 12.1984 |
| YANMAR | 1GM 0.3 | 01.1980 - 12.1984 |
| YANMAR | 1GM10 0.3 | 01/01/84 |
Pierre L.
The ordered starter matched its description perfectly and seems seriously designed (delivered with a test sheet). Assembled and put into operation: impeccable. Identical to the original. Really nothing to complain about, or rather: THANK YOU! (Translated review)
Lionel B.
It is set, it works perfectly. (Translated review)
Bernard L.
Corresponds exactly to the original starter. I recommend this seller who delivers very quickly. (Translated review)
MARC E.
very good service (Translated review)
Marc L.
very suitable (Translated review)
Swann k.
Fits Myanmar 1GM10 very well. BUT BE CAREFUL, not marinière and less solid. Mine snapped and smoked a little when I first turned it on. Then it worked fine. It's adaptable, not original. But you pay 4x less, so you still get what you pay for. (Translated review)
Joao L.
Identical to the original, except for the small excitation screw, which is larger than the original, but can be easily adapted by drilling into the original lug. (Translated review)
Bertrand R.
Compliant product (Translated review)
Acheteur Vérifié
Perfect. (Translated review)
Acheteur Vérifié
(Translated review)
