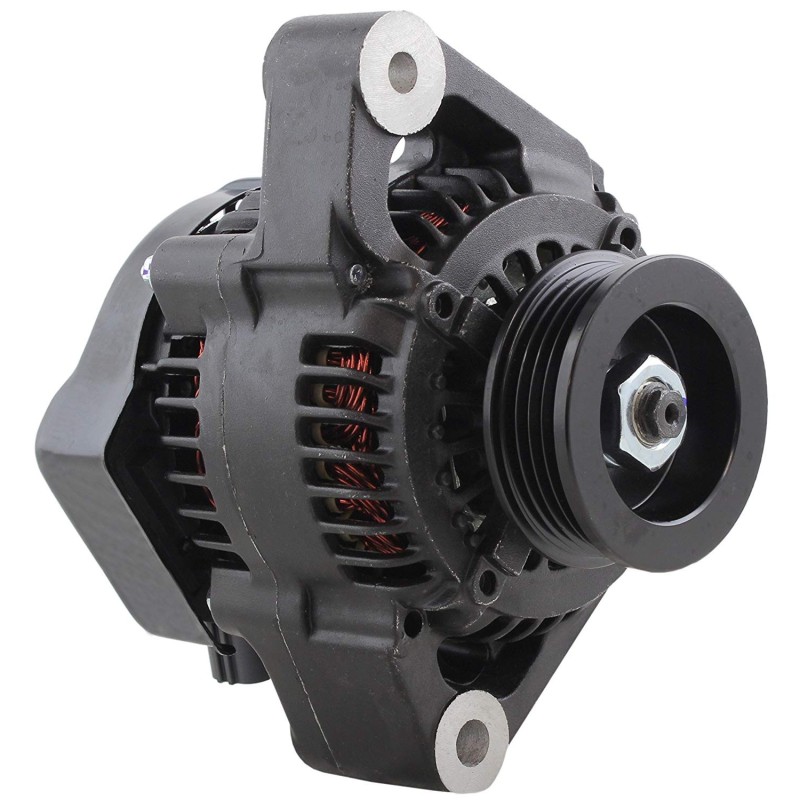

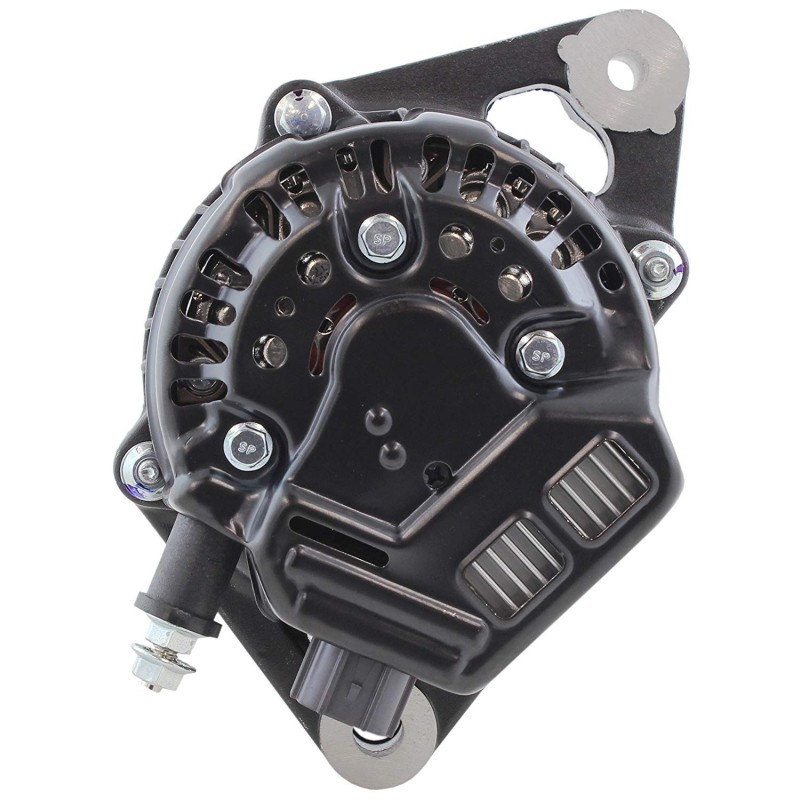

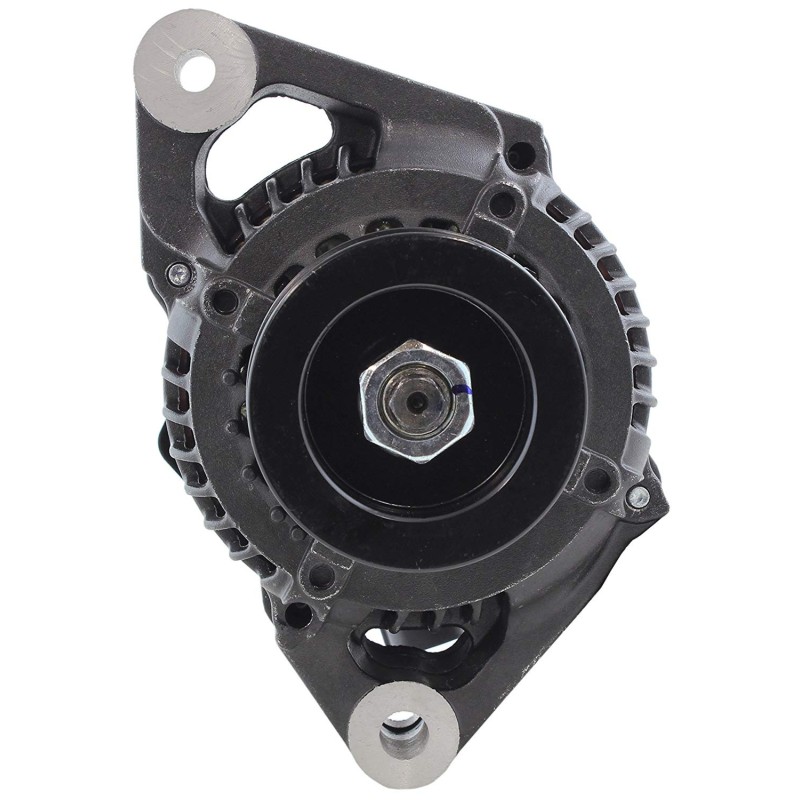

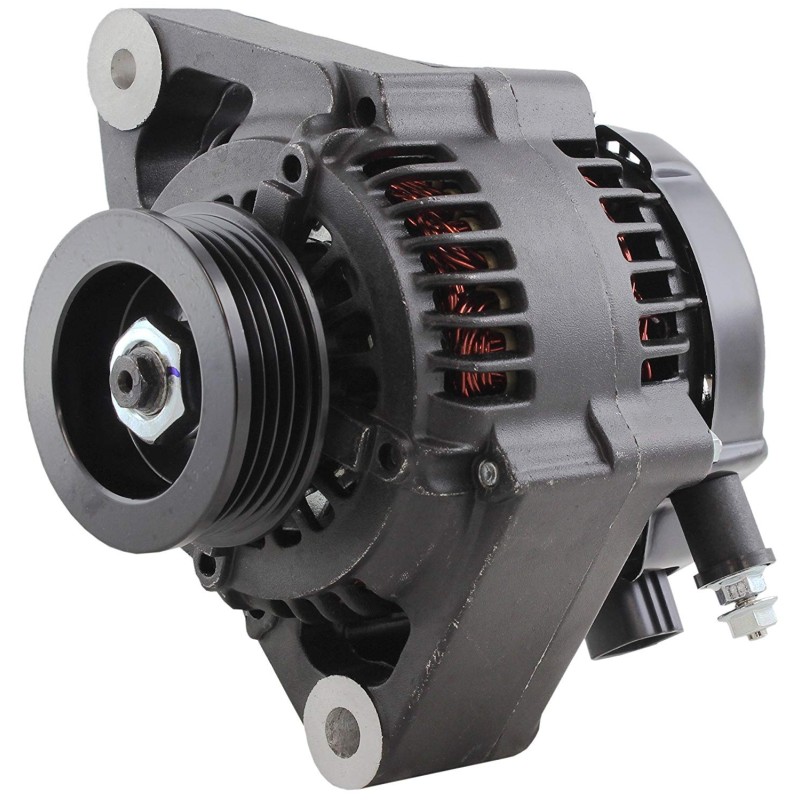

Alternator NEW replacing Denso 101211-8740, Honda 31630-ZY6-003, CGM25
For HONDA MARINE models BF150 A 2.3 / BF135 A 2.3 / BF115 A 2.3 (R4-DOHC type), 2004–2014
55-amp alternator, 4-groove pulley
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
| ALTL646 | 3EFFE |
| UD104289A | AS-PL |
| ADN375A | AUTOTEAM |
| G101534 | BTS TURBO |
| F032115803 | CARGO |
| 115803 | CARGO |
| BREF032115803 | CARWOOD GROUP |
| CAL40375AS | CASCO |
| 032197 | DA SILVA |
| 101211-8740 | DENSO |
| 115469 | FARCOM |
| 31630-ZY6-003 | HONDA |
| CGM-25 | HONDA |
| 20040375AV | ITAB AUTOMOTIVE |
| ALN2700 | KRAUF |
| 554237RI | KUHNER |
| 447047 | LOGISTIK |
| 125.594.055.050 | WAI |
| 125.594.055.440 | WAI |
| A129.641 | WAI |
| 20132573BN | REAL |
| 290-10388N | ROBERT'S |
| 2040375.0 | SANDO |
| ALT423750A | SIOM |
| 12756N | WAI |
| ALT30624 | WOODAUTO |
| WOOALT30624 | WOODAUTO |
| PRAL646 | 3EFFE |
All of our alternators and starters are new and come with a two-year warranty.
About Us
WAGENDASS is a French company based north of Lyon.
WAGENDASS is a registered trademark recognized by the European Union.
Our Logistics
Thanks to our numerous warehouses across Europe and our partnerships with suppliers,
orders are shipped quickly via various carriers.
Product Quality
Our alternators and starters are sold new, come with a two-year warranty, and require no return of the old unit
to simplify the ordering process for the customer
there is therefore no need to return the old product
Our Suppliers
Thanks to our extensive experience in the electrical field
and a partnership spanning some forty years with our suppliers
we are able to ensure high-quality products for our customers
Information:
Electrical Information |
||
|---|---|---|
| Voltage | 14 | |
| Amp | 55 | |
Physical Information |
||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 46.00 |
| E | Belt. adj. brackethole pos. | 5 |
| H | Pulley dia. | 62.00 |
| A | Pulley dist. | 76.50 |
| i | Grooves/pulley | 4 |
| j | Radius | 75.00 |
| j | Radius 2 | 80.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

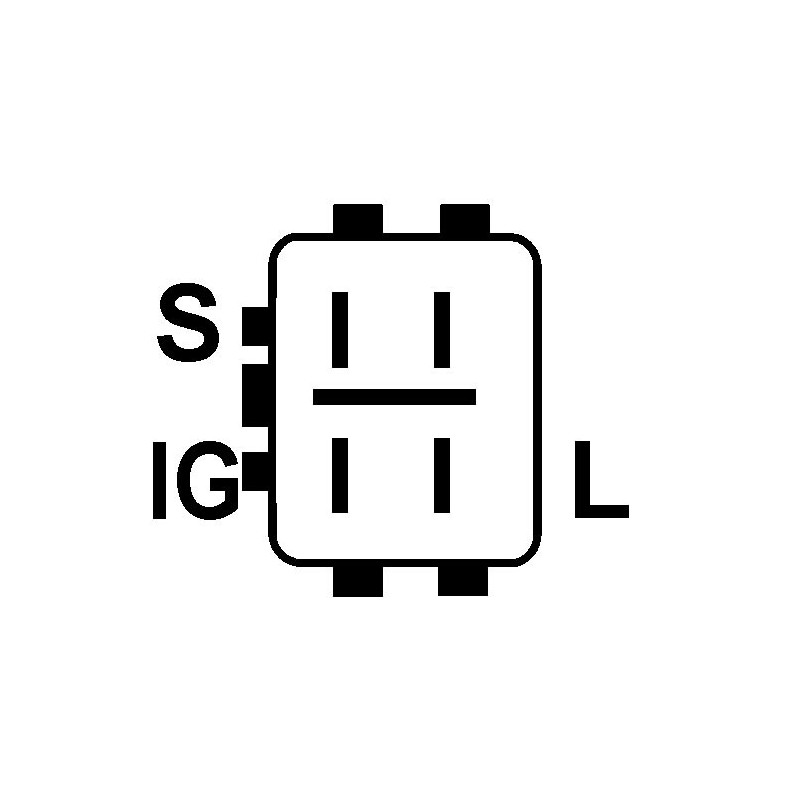

| o | Plug no. 1 | pl186 |
| R | Total length mm | 146.00 |
Replacing |
|
|---|---|
| 101211-8740 | DENSO |
| CGM25 | HONDA |
generic brand
Mounted on :
HONDA MARINE
| BF135 | BF150 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
