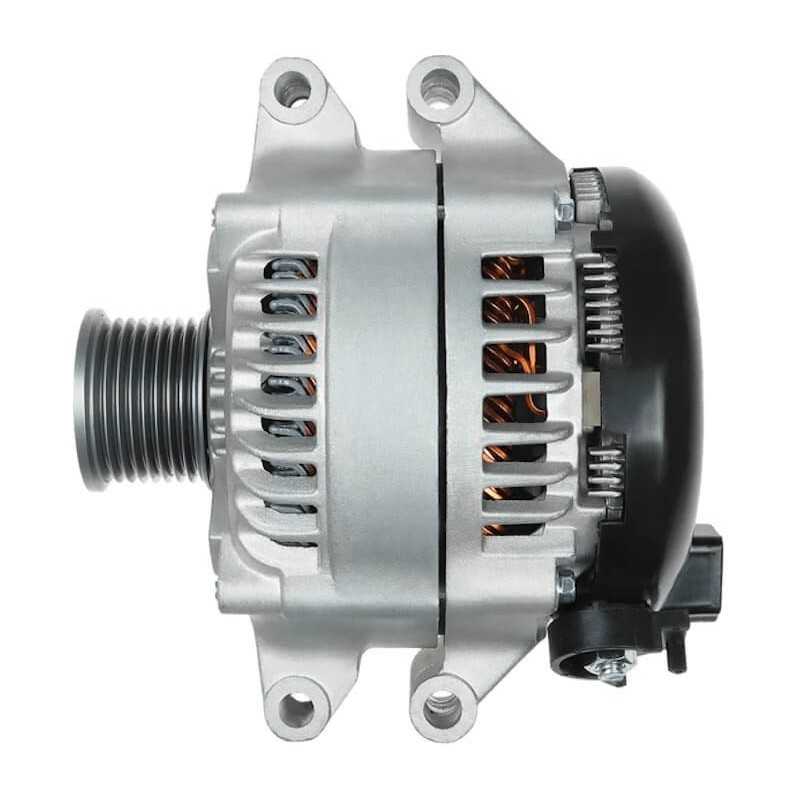

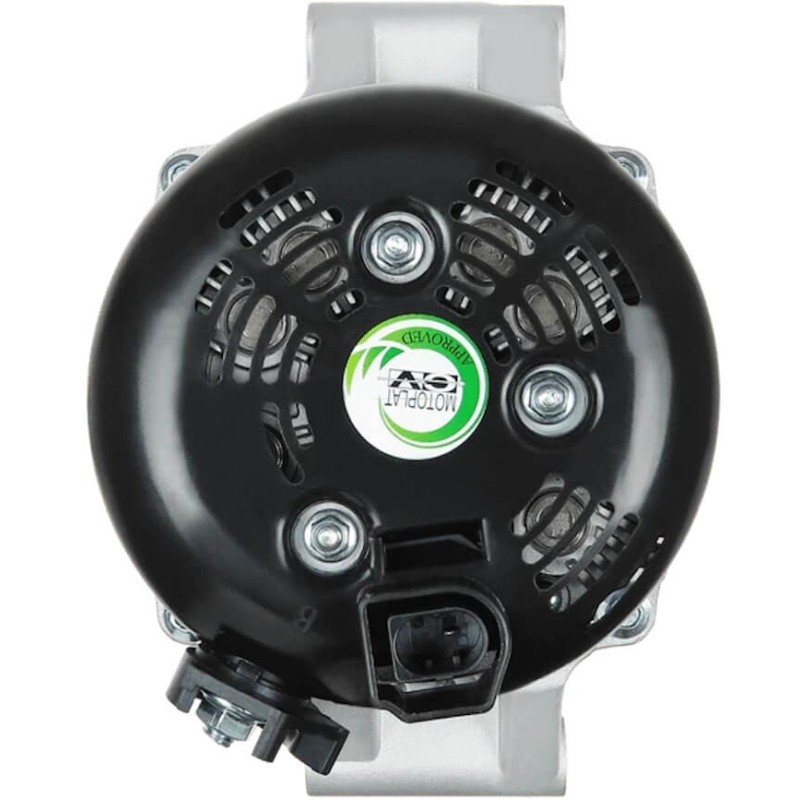

Alternator replacing 104210-6510 / 104210-6511 / 12317616120
| 104210-6510 | DENSO | 7616120 | BMW |
| 104210-6511 | DENSO | 7616122 | BMW |
| 104210-6512 | DENSO | 89215137 | POWERMAX |
| 104210-6513 | DENSO | AEK4141 | AUTOELECTRO |
| 104210-6514 | DENSO | ALN7661 | KRAUF |
| 12317616120 | BMW | ALTE953 | 3EFFE |
| 12317616122 | BMW | CAL40463 | CASCO |
| 2040463 | SANDO | CAL40463AS | CASCO |
More info

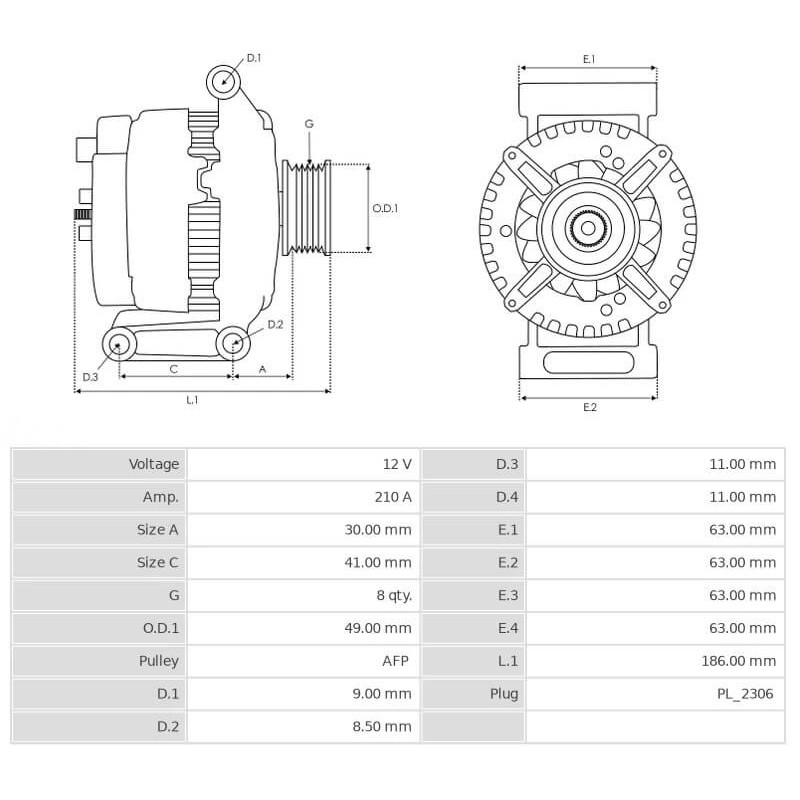

Specifications
| Voltage [ V ] | 12 |
| Amp. [ A ] | 210 |
| Size A [ mm ] | 30.00 |
| Size C [ mm ] | 41.00 |
| G [ qty. ] | 8 |
| O.D.1 [ mm ] | 49.00 |
| Pulley | AFP |
| D.1 [ mm ] | 9.00 |
| D.2 [ mm ] | 8.50 |
| D.3 [ mm ] | 11.00 |
| D.4 [ mm ] | 11.00 |
| E.1 [ mm ] | 63.00 |
| E.2 [ mm ] | 63.00 |
| E.3 [ mm ] | 63.00 |
| E.4 [ mm ] | 63.00 |
| L.1 [ mm ] | 186.00 |

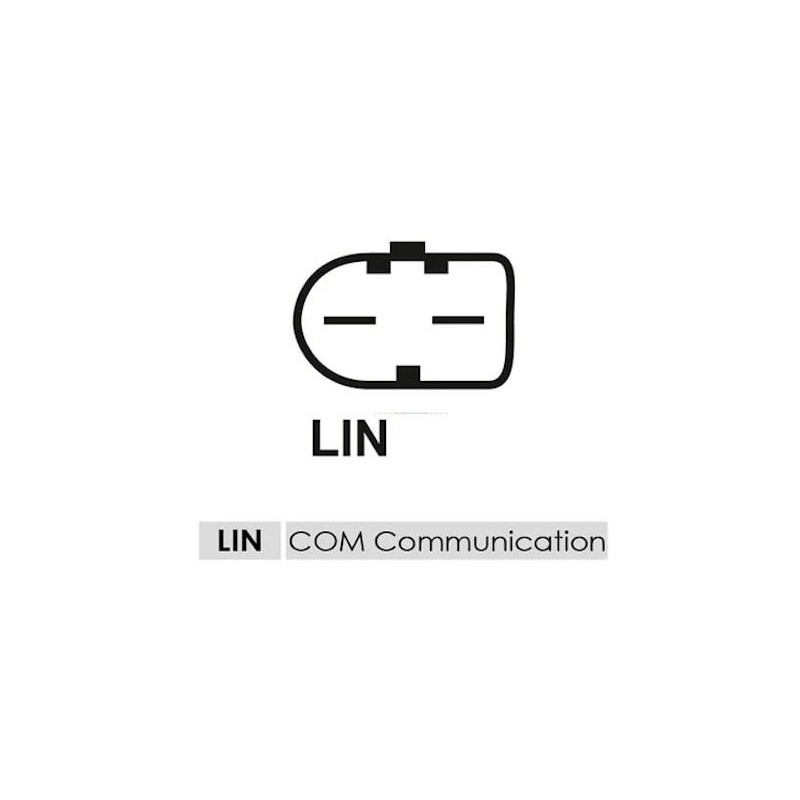

| Plug | PL_2306 |
generic brand
replacing
| 104210-6510 | DENSO | 7616120 | BMW |
| 104210-6511 | DENSO | 7616122 | BMW |
| 104210-6512 | DENSO | 89215137 | POWERMAX |
| 104210-6513 | DENSO | AEK4141 | AUTOELECTRO |
| 104210-6514 | DENSO | ALN7661 | KRAUF |
| 12317616120 | BMW | ALTE953 | 3EFFE |
| 12317616122 | BMW | CAL40463 | CASCO |
| 2040463 | SANDO | CAL40463AS | CASCO |
| 209454 | ERA | CAL40463ES | CASCO |
| 215.555.210.260 | PSH | CAL40463GS | CASCO |
| 28-7750 | ELSTOCK | CAL40463OS | CASCO |
| 32118810 | HERTH+BUSS | CAL40463RS | CASCO |
| 40212 | CEVAM | DAN1137 | DENSO |
| 554478RID | KUHNER | LRA04141 | LUCAS |
| UD15404A | AS-PL | LRA4141 | LUCAS |
| ALT6473 | ELECTROLOG |
Fits
| Brand | Model | typ | Year |
| BMW | 335 3.0 i xDrive | (F30)[N55B30A] | 01/01/12 |
| BMW | 335 3.0 i xDrive | (F31)[N55B30A] | 01/01/12 |
| BMW | 335 3.0 i xDrive | (F35)[N55B30A] | 01/01/12 |
| BMW | 535 3.0 i | (F10)[N55B30A] | 01/01/12 |
| BMW | 535 3.0 i | (F11)[N55B30A] | 01/01/12 |
| BMW | 535 3.0 i xDrive | (F10)[N55B30A] | 01/01/12 |
| BMW | 535 3.0 i xDrive | (F11)[N55B30A] | 01/01/12 |
| BMW | 435 3.0 i | (F32)[N55B30A] | 01.2013-12.2016 |
| BMW | 435 3.0 i | (F33)[N55B30A] | 01.2013-12.2016 |
| BMW | 435 3.0 i | (F36)[N55B30A] | 01.2013-12.2016 |
| BMW | 435 3.0 i xDrive | (F32)[N55B30A] | 01.2013-12.2016 |
| BMW | 435 3.0 i xDrive | (F33)[N55B30A] | 01.2013-12.2016 |
| BMW | 435 3.0 i xDrive | (F36)[N55B30A] | 01.2013-12.2016 |
| BMW | M 135 3.0 i | (F20)[N55B30A] | 01/01/12 |
| BMW | M 135 3.0 i | (F21)[N55B30A] | 01/01/12 |
| BMW | M 135 3.0 i xDrive | (F20)[N55B30A] | 01/01/12 |
| BMW | 335 3.0 i | (F30)[N55B30A] | 01/01/12 |
| BMW | 335 3.0 i | (F31)[N55B30A] | 01/01/12 |
| BMW | M 135 3.0 i xDrive | (F21)[N55B30A] | 01/01/12 |
| BMW | 335 3.0 i | (F35)[N55B30A] | 01/01/12 |
| BMW | M 2 3.0 | (F87)[N55B30A] | 01/01/16 |
| BMW | M 235 3.0 i | (F22)[N55B30A] | 01/01/13 |
| BMW | 335 3.0 i GT | (F34)[N55B30A] | 01.2013-12.2016 |
| BMW | M 235 3.0 i | (F23)[N55B30A] | 01/01/13 |
| BMW | 335 3.0 i GT xDrive | (F34)[N55B30A] | 01.2016-12.2016 |
| BMW | M 235 3.0 i xDrive | (F22)[N55B30A] | 01/01/14 |
| BMW | M 235 3.0 i xDrive | (F23)[N55B30A] | 01/01/14 |
