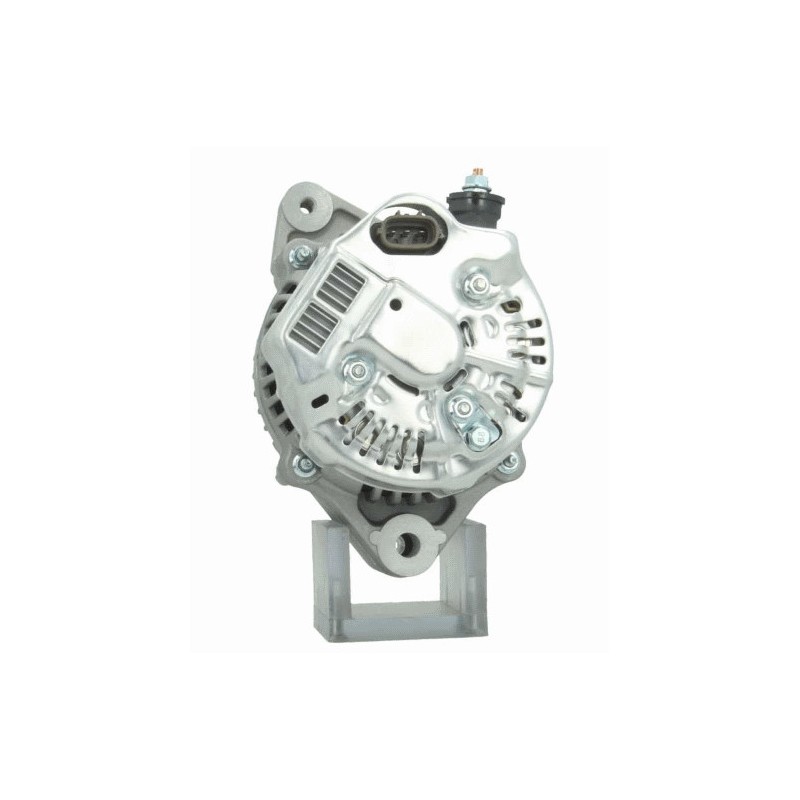

Alternator replacing 101211-5260 / 101211- 5261 / 27060-17170 / 27060-17171
| 0210800410 | Denso |
| 0986083720 | Bosch ruil |
| 0986AN0593 | Bosch ruil |
| 1012115260 | Denso |
| 1012115261 | Denso |
| 1022111360 | Denso |
| 1022111361 | Denso |
| 1022111362 | Denso |
| 119948 | FARC |
| 12048150 | EuroTec |
| 12060592 | EuroTec |
| 2706017150 | Toyota |
| 2706017170 | Toyota |
| 2706017171 | Toyota |
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 80 | |
Catalogue information | ||
|---|---|---|
| Pulley | DP | |
| Regulator type | IR | |
| Vac. pump | No | |
| Servicing | TOYOTA | |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 93.00 |
| B | Width/holder arm | 58.10 |
| D | Bracket hole | 10.30 |
| E | Belt. adj. brackethole pos. | 5 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 77.00 |
| I | Grooves/pulley | 2 |
| J | Radius | 79.00 |
| J | Radius 2 | 83.00 |
| K | B+ position | M6 |
| K | Position/B+ in min. | 5 |
| N | Rotation | CW |

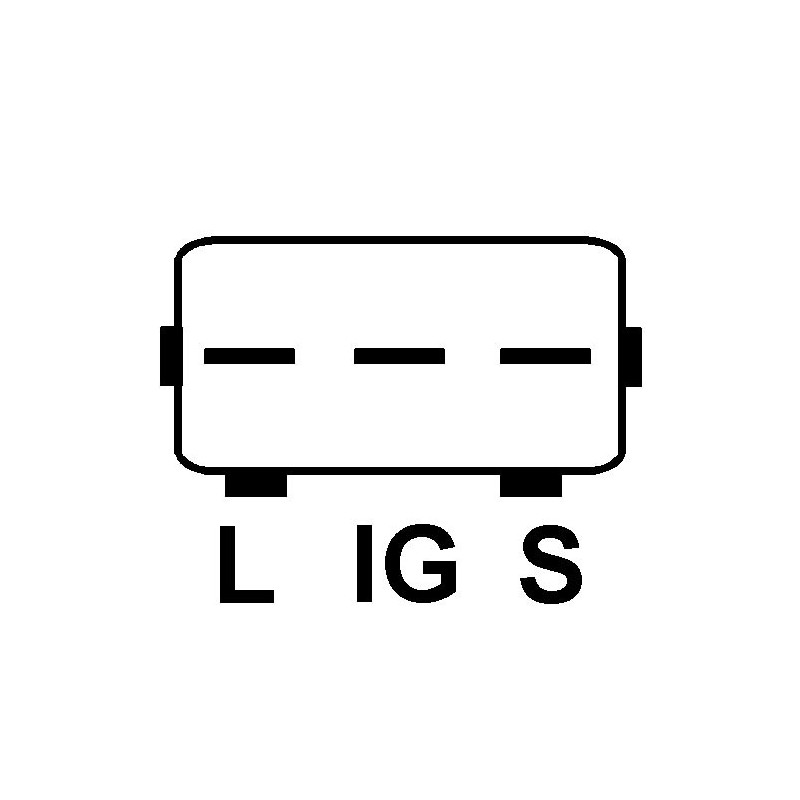

| O | Plug no. 1 | PL42 |
| R | Total length mm | 167.00 |
generic brand
Replacing | |
|---|---|
| 101211-5260 | DENSO |
| 101211-5261 | DENSO |
| 101211-5330 | DENSO |
| 102211-1360 | DENSO |
| 102211-1361 | DENSO |
| 27060-17170 | TOYOTA |
| 27060-17171 | TOYOTA |
| 27060-17220 | TOYOTA |
| JA1534IR | HC-PARTS |
| 0986083720 | BOSCH |
| 1012115260 | DENSO |
| 1012115261 | DENSO |
| 1022111360 | DENSO |
| 1022111361 | DENSO |
| 1022111362 | DENSO |
| 112356 | Cargo |
| 119948 | FARC |
| 12048150 | EuroTec |
| 12060592 | EuroTec |
| 195942080 | PSH |
| 2706017170 | TOYOTA |
| 2706017171 | TOYOTA |
| 2706017220 | TOYOTA |
| 282750 | Elstock |
| 57276 | EAI |
| 8EL737837001 | HELLA |
| ALTH096 | UNIPOINT |
| CAL40217AS | Casco |
| DAN1114 | DENSO |
| F042A0H096 | BOSCH |
| F042A0H096HNC | BOSCH |
| HJA1534IR | HC |
| JA1534IR | HC |
| LRA01598 | LUCAS |
| LRA1598 | LUCAS |
| SP5885 | Spidan |
| TRA203 | TWA |
| WSD24319 | Stabeco |
NPS A-8530, ATA-622
