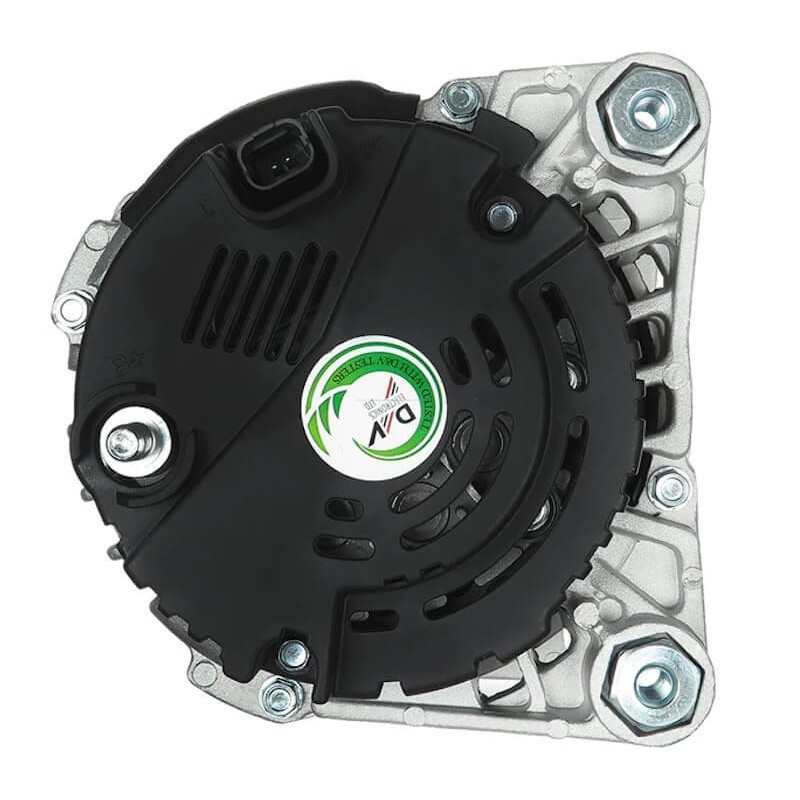

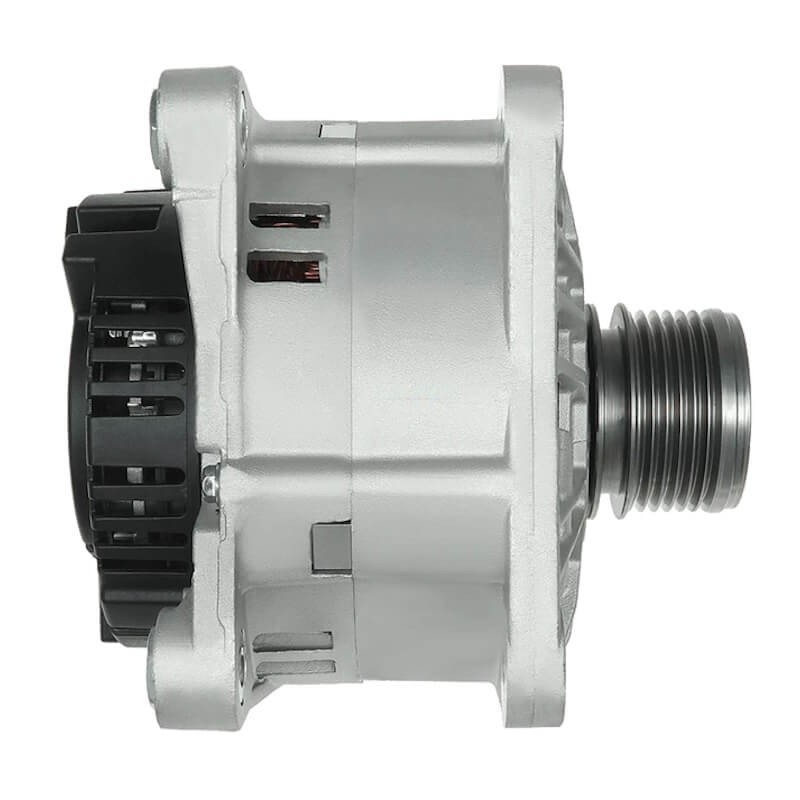

Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553
Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553
Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553
Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553
Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553
Previous
Next
Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553
Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553
Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553
Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553
Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553

Alternator replacing TG12C094 / TG12C151 / 8200537415 / 6001548553

w116325

231003831R Nissan
231007707R Nissan
2607395A Valeo
439562 Valeo
439680 Valeo
440265 Valeo
4678 CEVAM
57192 EAI
575902120 PSH
617345 Valeo
9090412 Friesen
930293 EDR
LRA2974 Lucas
SP6384 Spidan
TG12C094 Valeo
TG12C094SEL +line
Read more
€139.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Physical information
A Pulley dist. 34.00
B Width/holder arm 13.50
C Mount. bracket dist. 60.00
D Bracket hole 8.50
E Belt. adj. brackethole pos. 60
G Belt. adj. bracket hole 8.50
H Pulley dia. 55.00
I Grooves/pulley 8
J Radius 90.00
J Radius 2 90.00
K B+ M8
K Position/B+ in min. 10
N Rotation CW

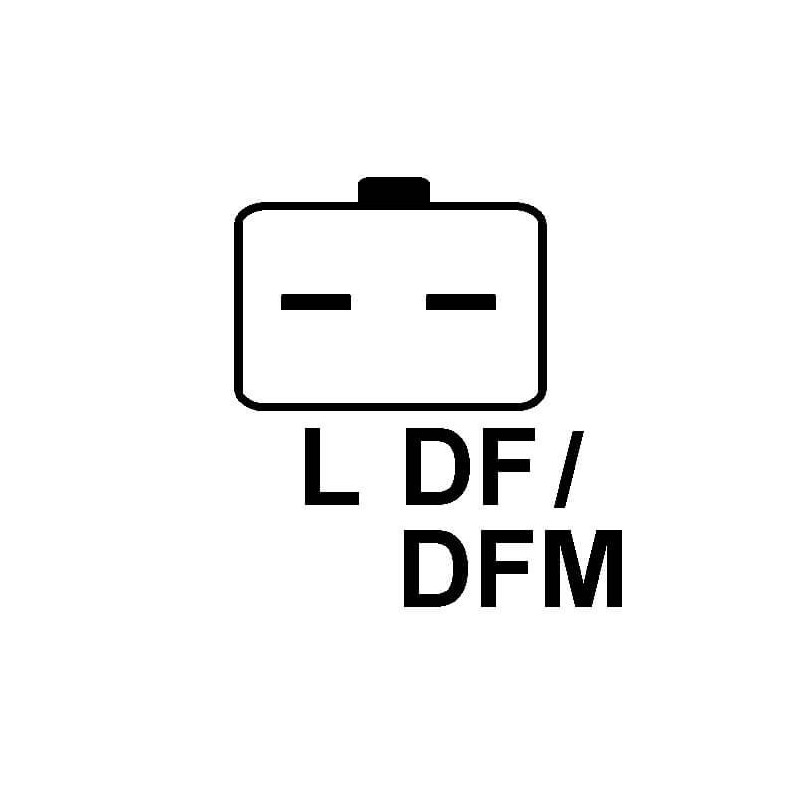

O Plug no. 1 PL72
Electrical information
Voltage 14
Amp 125
Catalogue information
Pulley SP/FW
Fan IF
Regulator type IR

generic brand

Replacing
1320024 CAV
1320G028 CAV
23100-3831R Nissan
231007707R Renault
231008017R Renault
2542946 Valeo
2543378 Valeo
2543378C Valeo
2607395 Valeo
2607395A Valeo
2617345A Valeo
6001548553 Renault
8200537415 Renault
SG12B105 Valeo
TG12C094 Valeo
TG12C151 Valeo

for

Brand Model Typ Year
DACIA Duster 1.5 DCi [K9K796] 04.2010-01.2018
DACIA Duster 1.5 DCi [K9K884] 01/04/11
DACIA Duster 1.5 DCi [K9K892] 10.2010-01.2018
DACIA Duster 1.5 DCi [K9K892] 01/04/11
DACIA Duster 1.5 DCi [K9K896] 06.2010-01.2018
DACIA Duster 1.5 DCi 4x4 [K9K884] 01/04/11
DACIA Duster 1.5 DCi 4x4 [K9K892] 01/04/11
DACIA Duster 1.5 DCi 4x4 [K9K894] 10.2010-01.2018
DACIA Duster 1.5 DCi 4x4 [K9K898] 10.2010-01.2018
DACIA Lodgy 1.5 Blue dCi 115 01/08/18
DACIA Lodgy 1.5 Blue dCi 95 01/08/18
DACIA Logan 1.5 DCi [K9K790] 01/09/05
DACIA Logan 1.5 DCi [K9K792] 01/01/06
DACIA Logan 1.5 DCi [K9K792] 01/02/07
DACIA Logan 1.5 DCi [K9K792] 01/03/08
DACIA Logan 1.5 DCi [K9K796] 01/09/07
DACIA Logan 1.5 DCi [K9K796] 01/03/08
DACIA Logan 1.5 DCi [K9K892] 01/05/10
DACIA Logan 1.5 DCi [K9K892] 01/05/10
DACIA Logan 1.5 DCi [K9K892] 01/05/10
DACIA Logan 1.5 DCi [K9K892] 01/05/10
DACIA Logan 1.5 DCi [K9K892] 01/05/10
DACIA Logan 1.5 DCi [K9K892] 01/05/10
DACIA Logan 1.5 DCi [K9K892] 01/05/10
DACIA Logan 1.5 DCi [K9K892] 01/05/10
DACIA Logan 1.5 DCi Express [K9K792] 01/03/09
DACIA Logan 1.5 DCi Express [K9K796] 01/03/09
DACIA Logan 1.5 DCi MCV [K9K796] 01/09/07
DACIA Sandero 1.5 DCi [K9K790] 01/11/08
DACIA Sandero 1.5 DCi [K9K792] 01/11/08
DACIA Sandero 1.5 DCi [K9K796] 01/11/08
DACIA Sandero 1.5 DCi [K9K892] 01/05/10
DACIA Sandero 1.5 DCi [K9K892] 01/05/10
NISSAN Kubistar 1.5 DCi [K9K710] 08.2003-10.2009
NISSAN Kubistar 1.5 DCi [K9K714] 08.2003-10.2009
NISSAN Kubistar 1.5 DCi X76 [K9K702] 01/08/03
NISSAN Kubistar 1.5 DCi X76 [K9K704] 01/08/03
NISSAN Kubistar 1.5 DCi X76 [K9K710] 01/08/03
NISSAN Kubistar 1.5 DCi X76 [K9K710] 01/08/05
NISSAN Kubistar 1.5 DCi X76 [K9K714] 01/08/05
NISSAN Kubistar 1.5 DCi X76 [K9K718] 01/08/03
NISSAN Kubistar 1.5 DCi X76 [K9K722] 01/08/03
RENAULT Clio 1.5 DCi [K9K702] 06.2001-10.2003
RENAULT Clio 1.5 DCi [K9K702] 01/11/03
RENAULT Clio 1.5 DCi [K9K710] 06.2001-10.2004
RENAULT Clio 1.5 DCi [K9K710] 01/11/03
RENAULT Clio 1.5 Diesel [K9K714] 01/08/04
RENAULT Kangoo 1.5 DCi [K9K700] 04.2005-06.2010
RENAULT Kangoo 1.5 DCi [K9K702] 01/07/02
RENAULT Kangoo 1.5 DCi [K9K702] 04.2005-06.2010
RENAULT Kangoo 1.5 DCi [K9K710] 01/07/02
RENAULT Kangoo 1.5 DCi [K9K718] 01/06/05
RENAULT Kangoo 1.5 DCi Express [K9K702] 01/04/03
RENAULT Kangoo 1.5 DCi Express [K9K702] 01/04/03
RENAULT Kangoo 1.5 DCi Express [K9K710] 01/04/03
RENAULT Kangoo 1.5 DCi Express [K9K714] 01/06/05
RENAULT Kangoo 1.5 DCi Express [K9K716] 01/10/05
RENAULT Kangoo 1.5 DCi Express [K9K716] 01/10/05
RENAULT Kangoo 1.5 DCi Express [K9K718] 01/06/05
RENAULT Logan 1.5 DCi 01/06/11
RENAULT Logan 1.5 DCi [K9K796] 02.2008-06.2015
RENAULT Thalia 1.5 DCi [K9K702] 06.2001-02.2009
