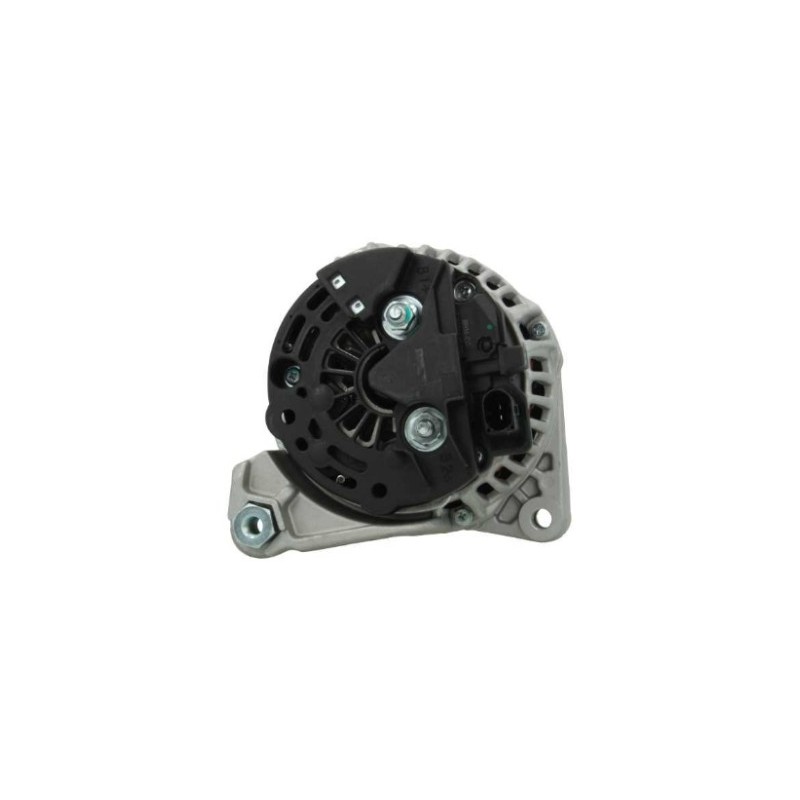

Alternator replacing 0124525026 / 0986046220 / 0986046227
| 12317519721 | BMW | |
| 12317519723 | BMW | |
| 12317546284 | BMW | |
| 12317546285 | BMW | |
| 215533150 | PSH | |
| 2205117 | PIC | |
| 284849 | Elstock | |
| 57224 | EAI | |
| 6258SP | Spidan | |
| 90156454 | Wilson | |
| 9046220F | Friesen | |
| AL0814N | Bosch (USA) | |
| AL0814X | Bosch (USA) | |
| CA1825IR | HC | |
| DRB6220 | Remy |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 68.50 |
| B | Width/holder arm | 28.00 |
| C | Mount. bracket dist. | 75.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 10.50 |
| H | Pulley dia. | 50.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 93.00 |
| J | Radius 2 | 93.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 57 |
| N | Rotation | CW |

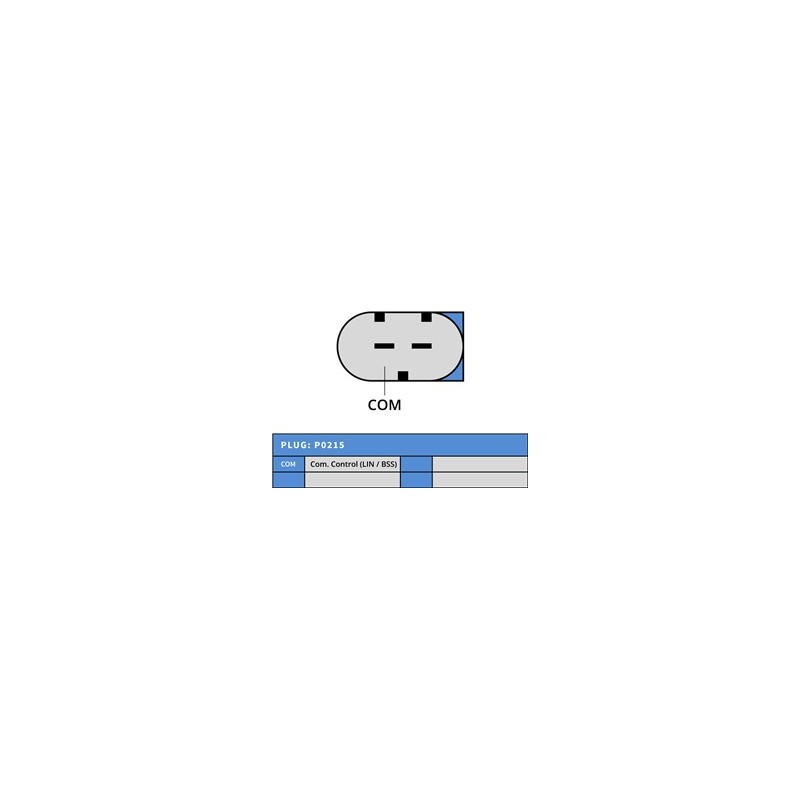

| O | Plug no. 1 | PL86 |
| R | Total length mm | 176.00 |
| Terminal type | COM | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
| Remarks | This Alternator has a COM terminal on the regulator, It is recommended that the OEM number is used to check suitability before ordering |
Replacing | |
|---|---|
| 0124525026 | Bosch |
| 0124525080 | Bosch |
| 12317519721 | BMW |
| 12317521135 | BMW |
| 12317521137 | BMW |
| 12317541694 | BMW |
| 12317541696 | BMW |
| 12317546284 | BMW |
| 12317546285 | BMW |
| 12317836610 | BMW |
| 12317837691 | BMW |
| 2542685 | Valeo |
| 2542685B | Valeo |
| 2542685C | Valeo |
| 2543292 | Valeo |
| 2543413 | Valeo |
| 2543413A | Valeo |
| CA1825IR | HC-PARTS |
