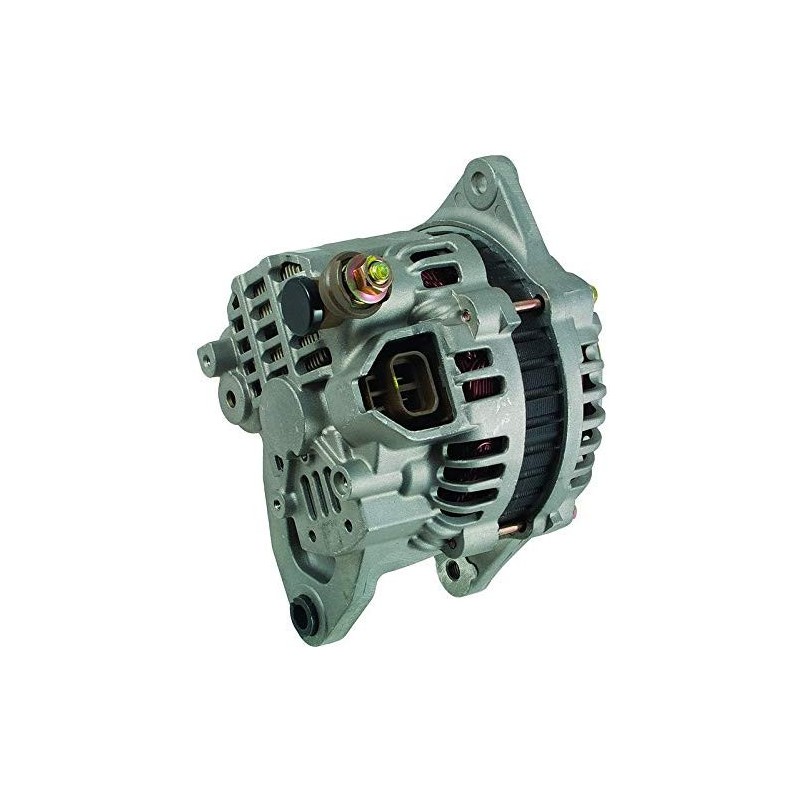

Alternator replaces A002T39391 / A002T39391A / A002T80391 / A002T80891

Physical Information
A Dist. pulley 38.00
B Arm width 13.50
C Distance between supports 66.50
D Hole diameter M10
E Tension paste angle 60
G Leg hole diameter 8.50
H Pulley dia. 55.00
I Pulley grooves 4
J Radius 89.50
J Radius 2 84.50
K Position B + M8
K Position B+ in min. 5
N Rotation Cr

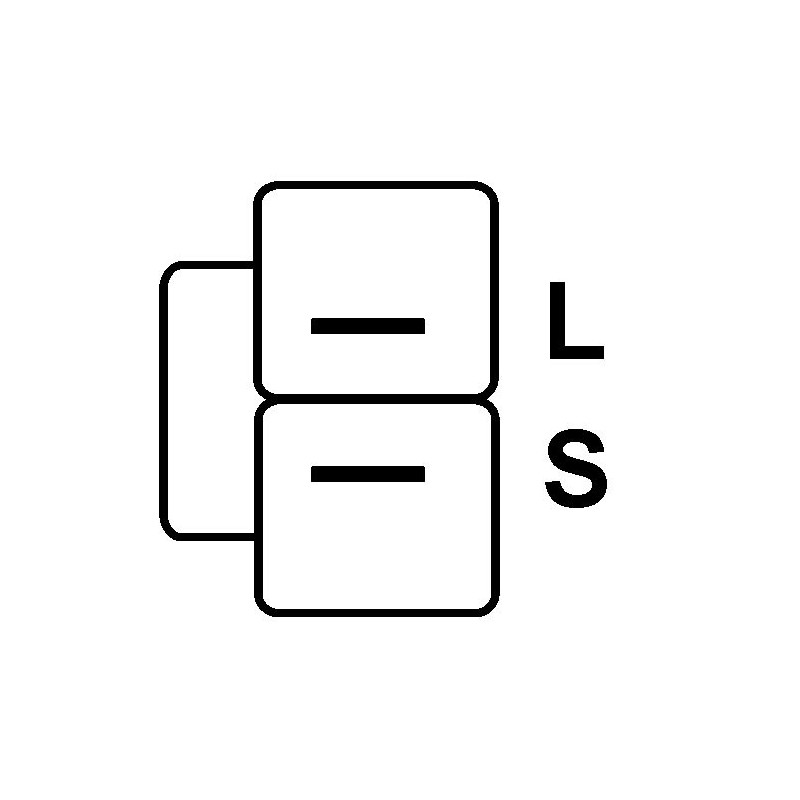

O Socket n° 1 PL07
R Total length mm 158.00

generic brand

replaces :

MAZDA B6BF, B6BF-18-300, B6BF-18-300R, B6EW-18-300, B6EW-18-300B, BPE8-18-300, BPE8-18-300R, BPE9-18-300, BPE9-18-300A, BPE9-18-300R, Z505-18-300A, Z505-18-300R

MITSUBISHI A002T39391, A002T39391A, A002T80391, A002T80891, A002T83491, A002T83491A, A002TA1191, A002TA1191A, A002TA3991, A002TA5891, A002TA5891A, A2TA5891A, MITSUBISHI Sales A2T39391, A2T39391A, A2T80391, A2T80891, A2T83491, A2T83491A, A2TA1191, A2TA1191A, A2TA3991, A2TA5891,  ADM51137, VALEO 437616, TA000A32601A
