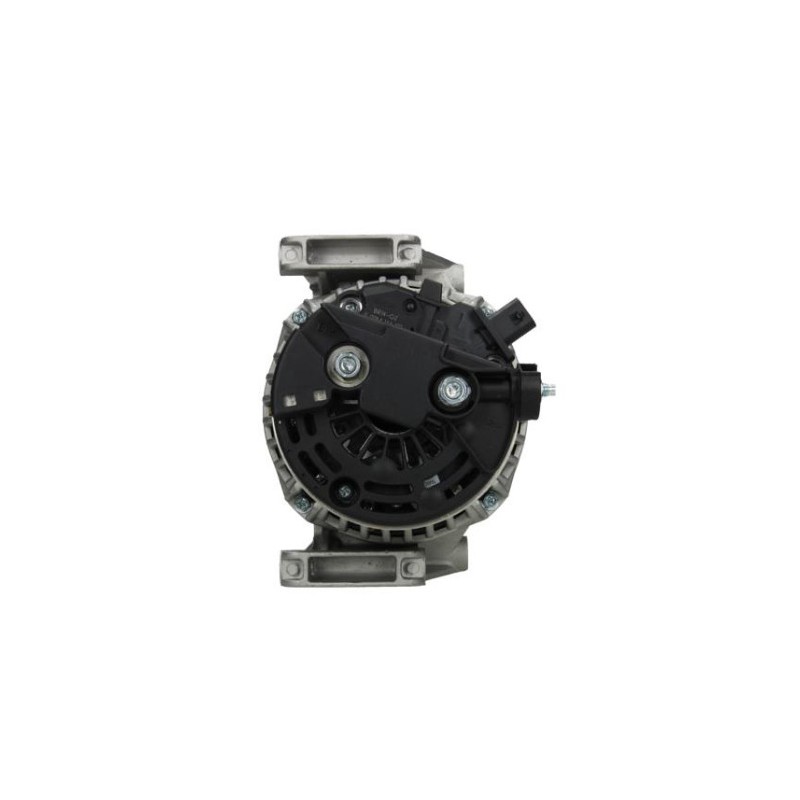

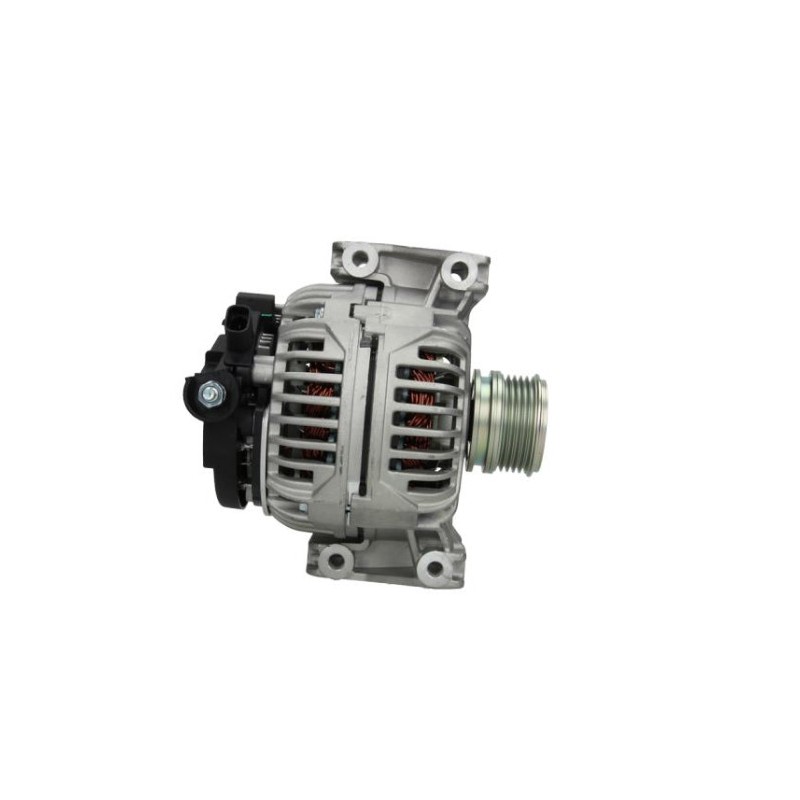

Alternator replacing 0124525017 / 12785604 / 0986046200
| 124525017 | Bosch |
| 0986046200 | Bosch ruil |
| 0986046207 | Bosch ruil |
| 114257 | Cargo |
| 12046200 | EuroTec |
| 12785604 | Prestolite |
| 2205146 | PIC |
| 2311181402 | DRI |
| 284970 | Elstock |
| 475511140 | PSH |
| 90156491 | Wilson |
| 9046200 | Friesen |
| 9046200F | Friesen |
| 93184952 | Opel |
| 93184953 | Opel |
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 140 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 31.50 |
| B | Width/holder arm | 79.00 |
| C | Mount. bracket dist | 55.00 |
| D | Bracket hole | 8.50 |
| D | Trou from fixation support 2 | 9.00 |
| H | Pulley dia. | 57.00 |
| I | Grooves/pulley | 5 |
| K | Position B + | M8 |
| K | B+ position en min. | 15 |
| N | Rotation | Cr |

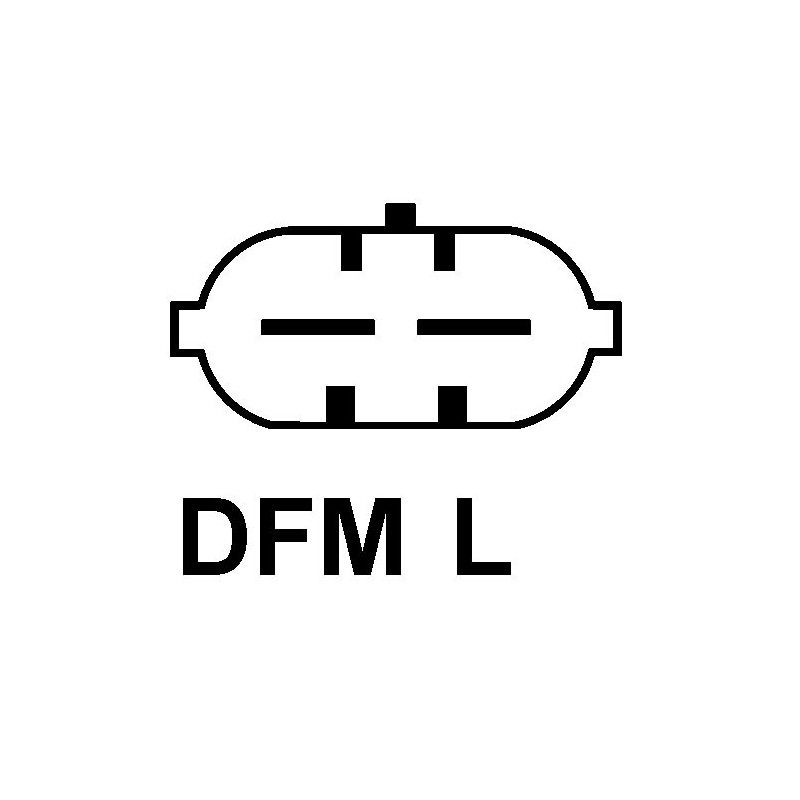

| O | Plug n° 1 | PL75 |
| R | Total length mm | 180.00 |
Replacing | |
|---|---|
| 0124525017 | BOSCH |
| 12785604 | SAAB |
| CA2123IR | HC-PARTS |
generic brand
replacing
| 0124525017 | BOSCH |
| 0124525017OR | Generic |
| 0986046200 | BOSCH |
| 11043 | Plug + div |
| 11043N | WAI |
| 11043R | WAI |
| 12046200 | EuroTec |
| 12785604 | PRESTOLITE |
| 2205146 | PIC |
| 284970 | Elstock |
| 475511140 | PSH |
| 90156491 | WILSON |
| 9046200F | Friesen |
| 93184952 | OPEL |
| 93184953 | OPEL |
| CA2123IR | HC |
| DRB6200 | DELCO REMY |
| L46200 | ATL |
| LRA02854 | LUCAS |
SAAB, Véhicule léger EU
| Model | Model série | Reference d'origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe châssis | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9-3 | 9-3 | 2.0 | Unleaded | 2003 08 | - | B207R | Turbo | 154 | 210 | Décapotable | 1998 | 4 | YS3F | |
| 9-3 | 9-3 | 2.0 | Unleaded | 2002 09 | - | B207R | Turbo | 154 | 210 | 1998 | 4 | YS3F | ||
| 9-3 | 9-3 | 2.0 | Unleaded | 2008 01 | - | B207R | 154 | 210 | 1998 | 4 | YS3F | |||
| 9-3 | 9-3 | 2.0 | Bi-Fuel | 2007 01 | - | B207L | Biopower | 129 | 175 | Décapotable | BioPower | 1998 | 4 | YS3F |
| 9-3 | 9-3 | 2.0 | Unleaded | 2002 09 | - | B207L | Turbo | 129 | 175 | 1998 | 4 | |||
| 9-3 | 9-3 | 2.0 | Unleaded | 2003 08 | - | B207L | Turbo | 129 | 175 | Décapotable | 1998 | 4 | YS3F | |
| 9-3 | 9-3 | 1.8 | Unleaded | 2003 08 | - | B207E | Turbo | 110 | 150 | Décapotable | 1998 | 4 | YS3F | |
| 9-3 | 9-3 | 1.8 | Unleaded | 2002 09 | - | B207E | Turbo | 110 | 150 | 1998 | 4 | YS3F |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
