Alternator replacing a3tg1291 / a3tg1291A / a3tg1291B / N3H1-18-300 / N3H1-18-300A
Alternator NEW replacing MITSUBISHI a3tg1291 / a3tg1291A / a3tg1291B / MAZDA N3H1-18-300 / N3H1-18-300A / N3H1-18-300B
DRA0012 / J5113055 / LRA03140
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 100 | |

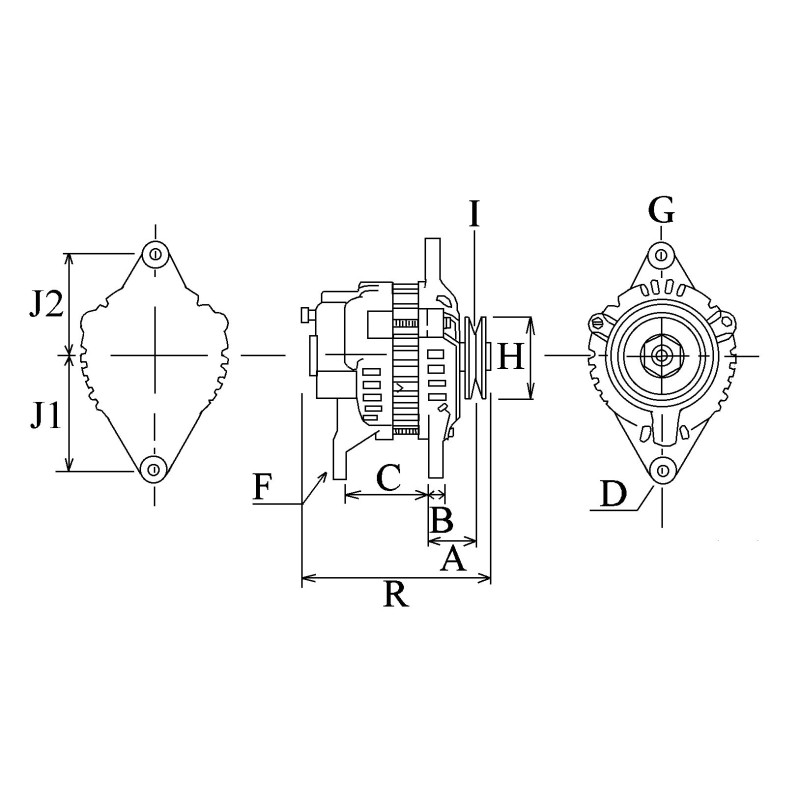

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 9.00 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 65.00 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 38.00 |
| i | Grooves/pulley | 5 |
| k | Position B + | M8 |
| n | Rotation | CW |

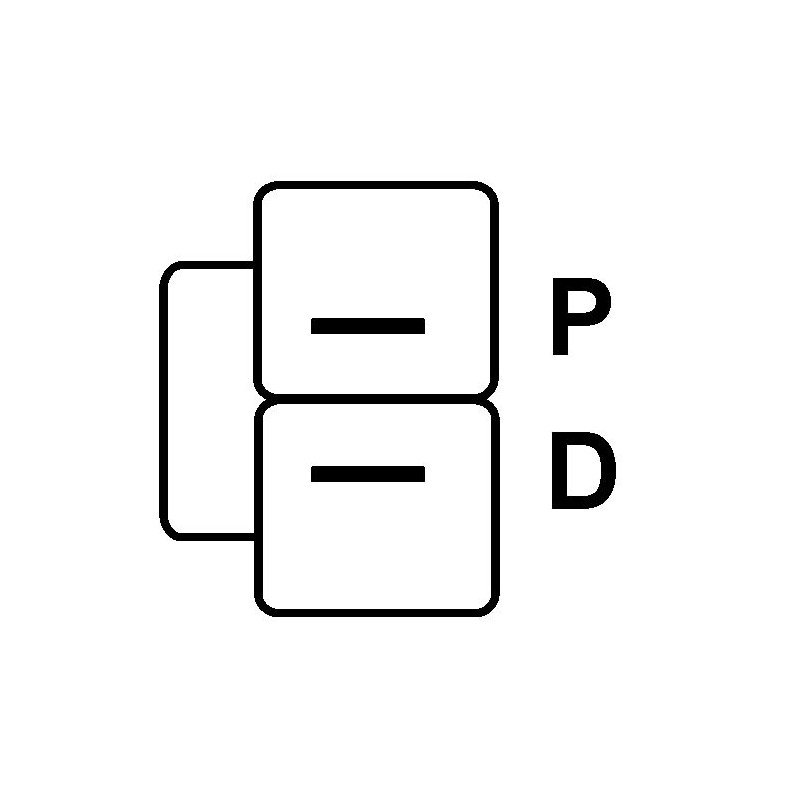

| o | Plug no. 1 | PL54 |
Replacing | |
|---|---|
| a3tg1291 | MITSUBISHI |
| A3TG1291A | MITSUBISHI |
| A3TG1291B | MITSUBISHI |
| N3H1-18-300 | MAZDA |
| N3H1-18-300A | MAZDA |
| N3H1-18-300B | MAZDA |
generic brand
Mounted on :
MAZDA
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RX | RX-8 | 2.6 | Unleaded | 2003 10 | - | 13B-MSP | 170 | 231 | Coupé | 1308 | 2 | SE | ||
| RX | RX-8 | 2.6 | Unleaded | 2003 10 | 2012 06 | 13B-MSP | 141 | 192 | Coupé | 1308 | 2 | SE |
