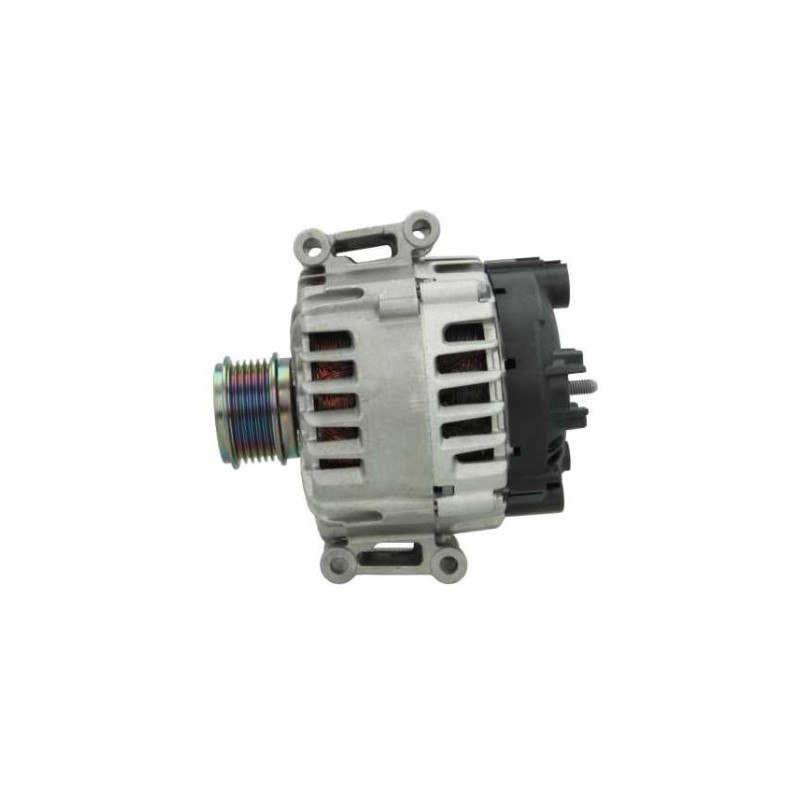

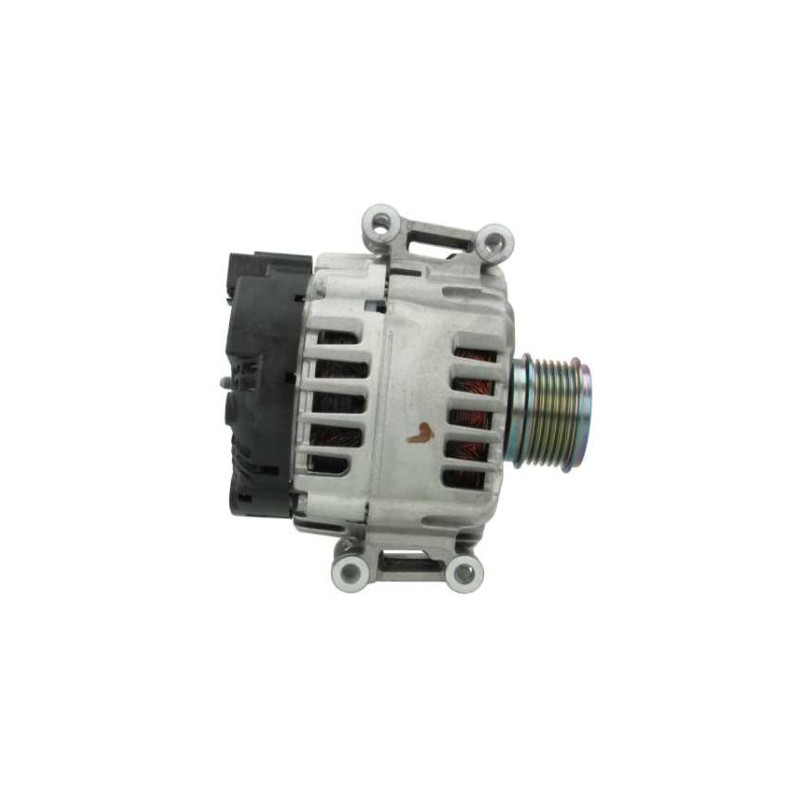

Alternator replacing VALEO TG14C019 / TG14C037 / VW 06H-903-017E / 06H-903-017EX / 06H-903-023-E
Alternator NEW replacing VALEO TG14C019 / TG14C037 / 439725 / 439792 / 439851 / 440315 / 440429 / 440591
=AUDI / VOLKSWAGEN 06H-903-017E / 06H-903-017EX / 06H-903-023-E / 06H-903-023-EX / 06J-903-023-N / 06J-903-023-NX
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 140 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.00 |
| B | Width/holder arm | 70.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 56.00 |
| H | Pulley dia. | 56.00 |
| A | Pulley dist. | 28.50 |
| i | Grooves/pulley | 6 |
| k | Position B + | M8 |
| n | Rotation | CW |

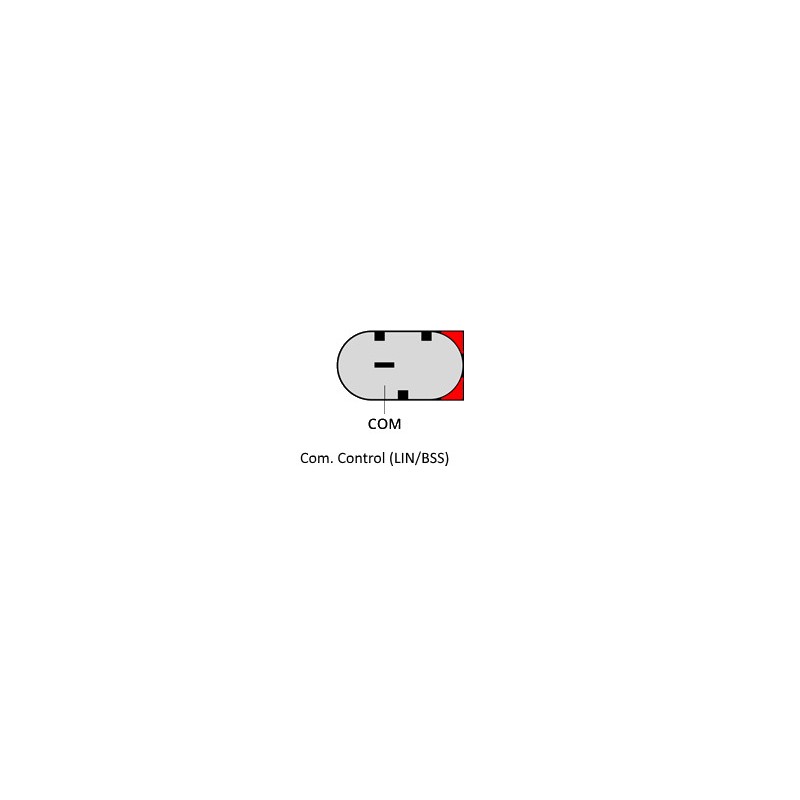

| o | Plug no. 1 | PL181 |
| D | Trou from fixation support 2 | 9.00 |
| R | Total length mm | 188.00 |
Generic Brand
Replacing :
| 06J903023N | VW |
| 06J903023Q | VW |
| 286621 | Elstock |
| 305574140 | PSH |
| 439725 | VALEO |
| 439792 | VALEO |
| 439851 | VALEO |
| 440315 | VALEO |
| 440429 | VALEO |
| 440591 | VALEO |
| 543396 | VALEO |
| 610087 | VALEO |
| 617852 | VALEO |
| 931186 | EDR |
| DRA1186 | DELCO REMY |
| LRA03511 | LUCAS |
| TG14C019 | VALEO |
| TG14C037 | VALEO |
| TG14C055 | VALEO |
| 06H903017E | VW |
Mounted on :
AUDI TT 1.8/2.0 TFSI
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
