Armature for starter Delco remy 10455317 / 10455318 / 10455321
for starter Delco remy 10455322, 10455324, 10455325, 10455326, 10455327, 10455331, 10455332, 10455333, 10455337, 10455347, 10455348, 10455349, 10455350, 10455351, 10455353, 10465409, 10465423, 1107194, 1107771, 1107877, 1109398, 1109422, 1109429, 1109434, 1109498, 1109568, 1109569, 1109570, 1109572, 1109685, 1998207
More info
generic brand
replaces
Delco 1949243

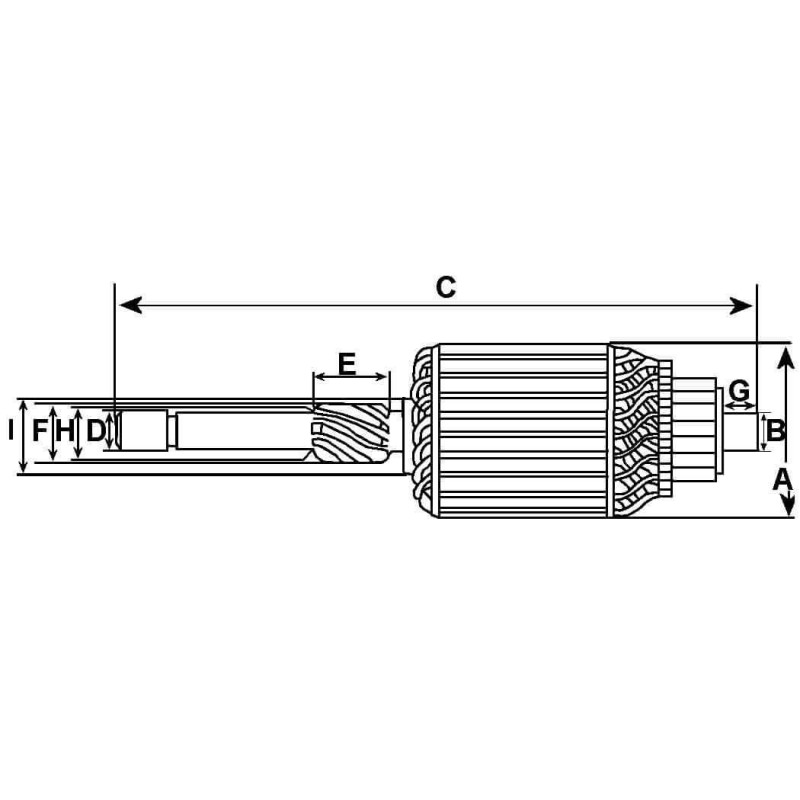

Physical information | ||
|---|---|---|
| A | Core dia. | 74.40 |
| B | Shaft dia./C.E. | 14.20 |
| H | Shaft dia./D.E. inside | 14.25 |
| D | Shaft dia./D.E. outside | 12.65 |
| I | Shaft dia. | 19.00 |
| C | Shaft length | 300.70 |
| Rotation | CW | |
| G | Dist./commutator | 24.40 |
| No./bars | 23 | |
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
for starter
Allis-Chalmers 4841605
Baker Equipment 115109; Case A20873, A47492, A47534, A57092
Caterpillar 7N7665, 7N8064, 7N8404, 8N1694
Clark 2355692, 2385010
Delco 10455317, 10455318, 10455321, 10455322, 10455324, 10455325, 10455326, 10455327, 10455331, 10455332, 10455333, 10455337, 10455347, 10455348, 10455349, 10455350, 10455351, 10455353, 10465409, 10465423, 1107194, 1107771, 1107877, 1109398, 1109422, 1109429, 1109434, 1109498, 1109568, 1109569, 1109570, 1109572, 1109685, 1998207, 1998208, 1998214, 1998218, 1998219, 1998297, 1998304, 1998325, 1998326, 1998328, 1998329, 1998391, 1998393, 1998395, 1998399, 1998419, 1998485, 1998576
Hyster 1327046, 1327047, 3001010, 3004023, 3004585, 3033927, 30409790, 3136100RX
John Deere AR11160; White 169-397AS; Yale 2200071-41, 2200071-46, 2200073-50
