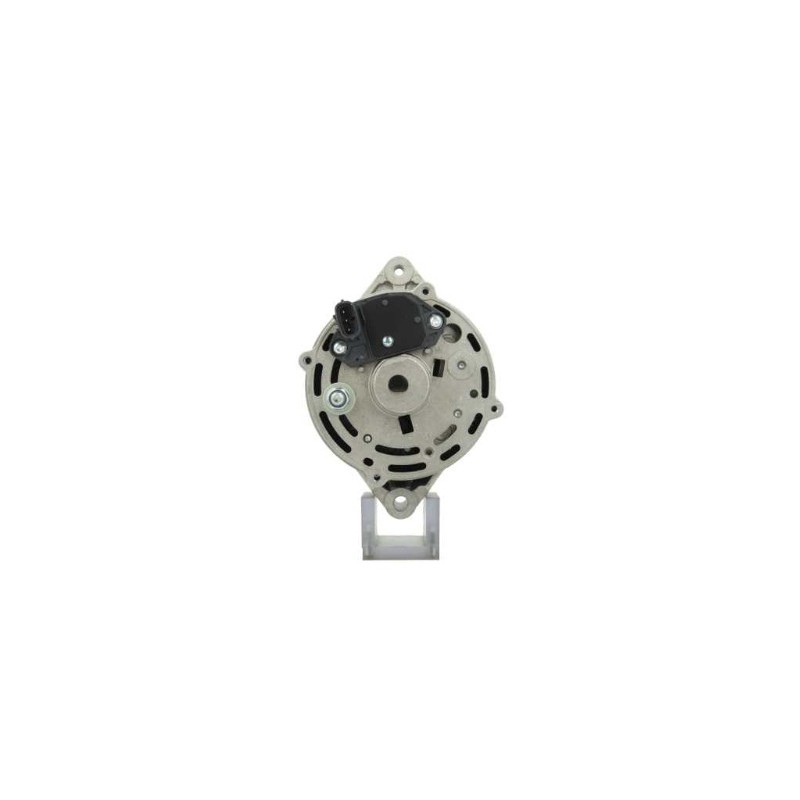

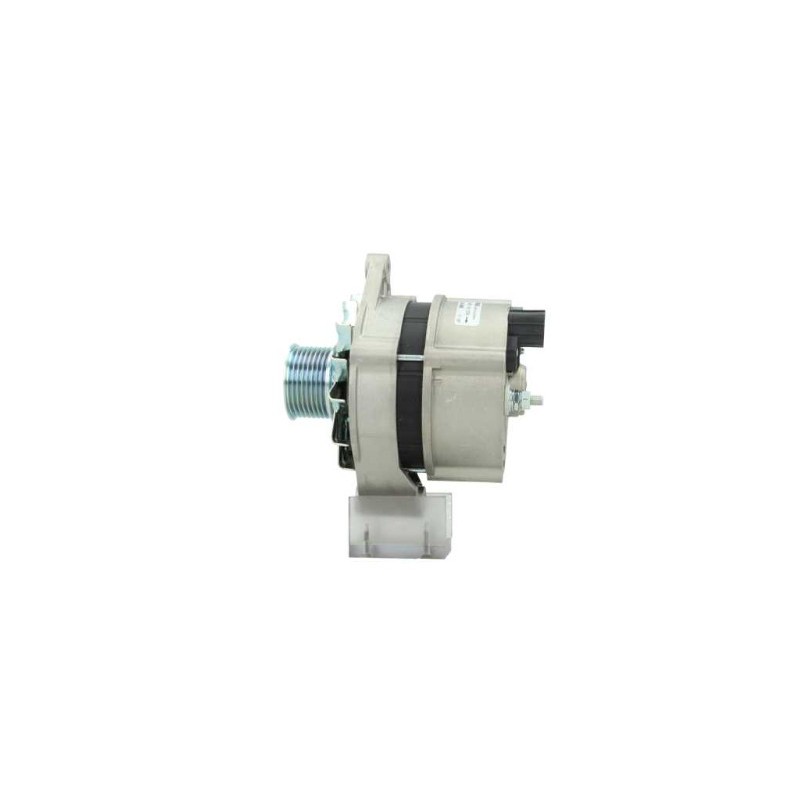

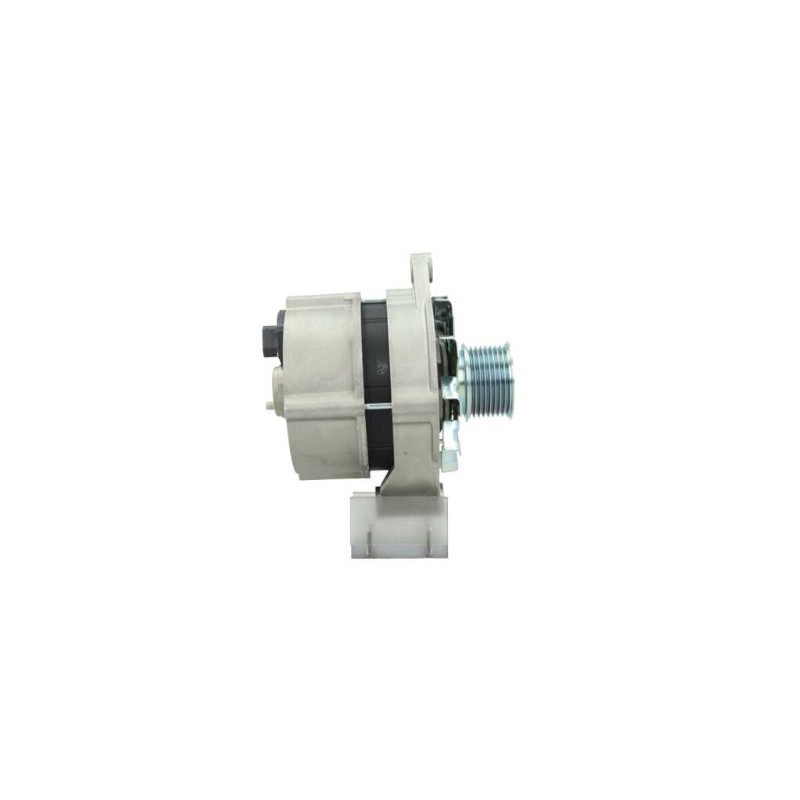

Alternator replacing DENSO 102211-9090 / NEW HOLLAND 87422777
Alternator NEW replacing DENSO 102211-9090 / DAN2013 / NEW HOLLAND 87422777
90 Amp
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | M8x1.25 |
| B | Width/holder arm | 51.00 |
| E | Belt. adj. brackethole pos. | 60 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 74.80 |
| i | Grooves/pulley | 8 |
| j | Radius | 86.00 |
| j | Radius 2 | 87.00 |
| k | Position B + | M8x1.25 |
| n | Rotation | Cr |

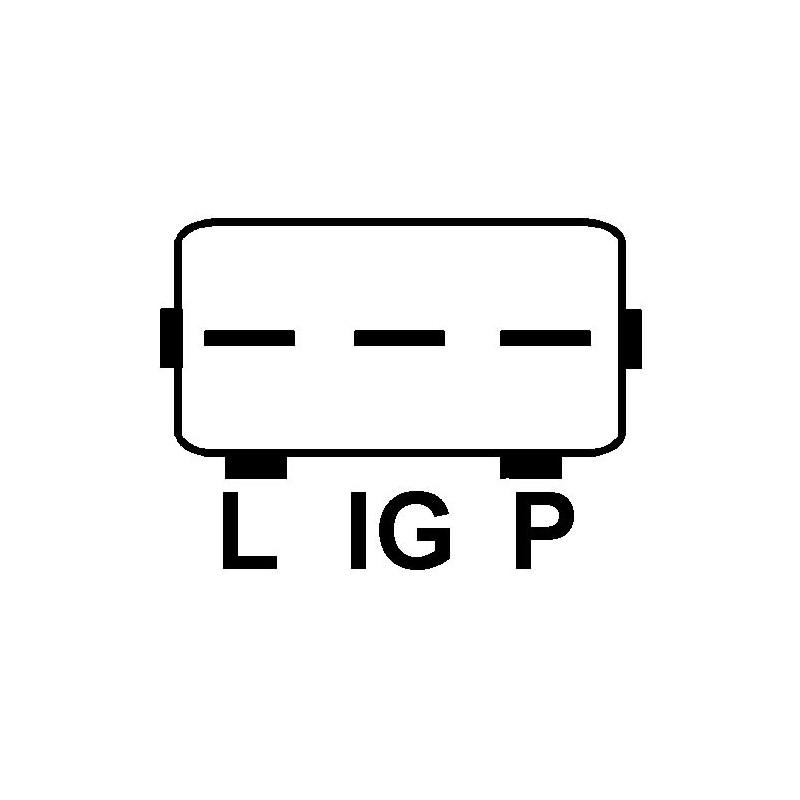

| o | Plug no. 1 | PL128 |
| Q | Tipo prise W | Plug |
| R | Total length mm | 178.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
Generic Brand
| 29090 |
| 1022119090 |
| 1022119090+ |
| 2905412 |
| 635509090 |
| 635509090050 |
| 635509090260 |
| 635509090265 |
| 635509090410 |
| 87422777 |
| 990042 |
| DAN2013 |
| LRA03698 |
| TNA044 |
fits:
| Model | Code | Engine | |
| 570MXT Series III | AND0570 | CASE | 390 Diesel |
| 580M Series II | AND0570 | CASE | |
| 580M Series III | AND0570 | CASE | Case 445T/M3 |
| 580SM Plus Series II | AND0570 | CASE | |
| 580SM Plus Series III | AND0570 | CASE | Case 445TA/E3 |
| 586G Series III | AND0570 | CASE | |
| 590SM Series II | AND0570 | CASE | |
| 650L | AND0570 | CASE | Case 4.5L |
| 750L | AND0570 | CASE | Case 4.5L |
| 850L | AND0570 | CASE | Case 6.7L |
