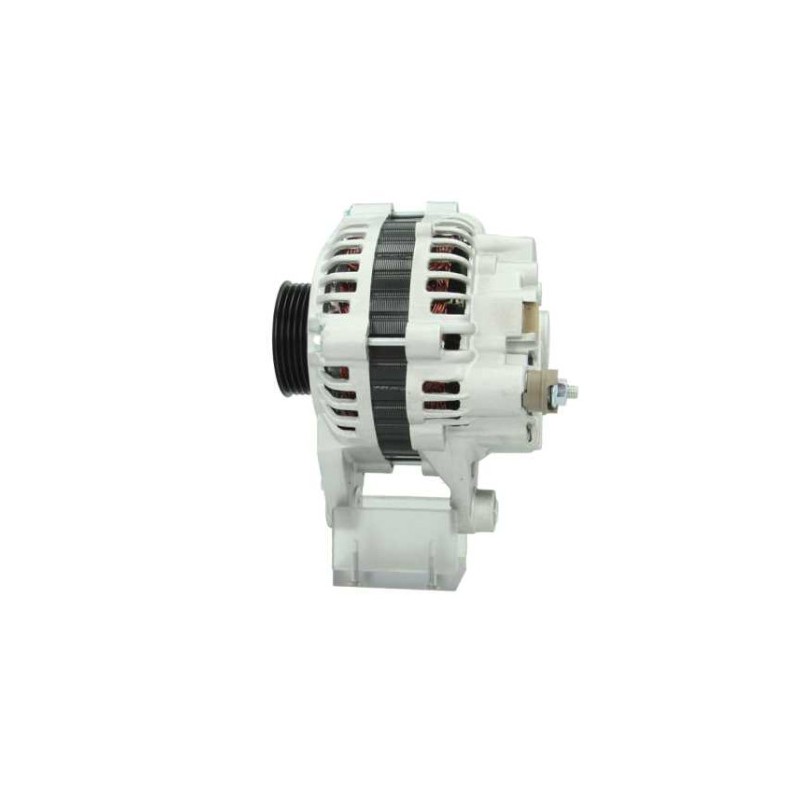

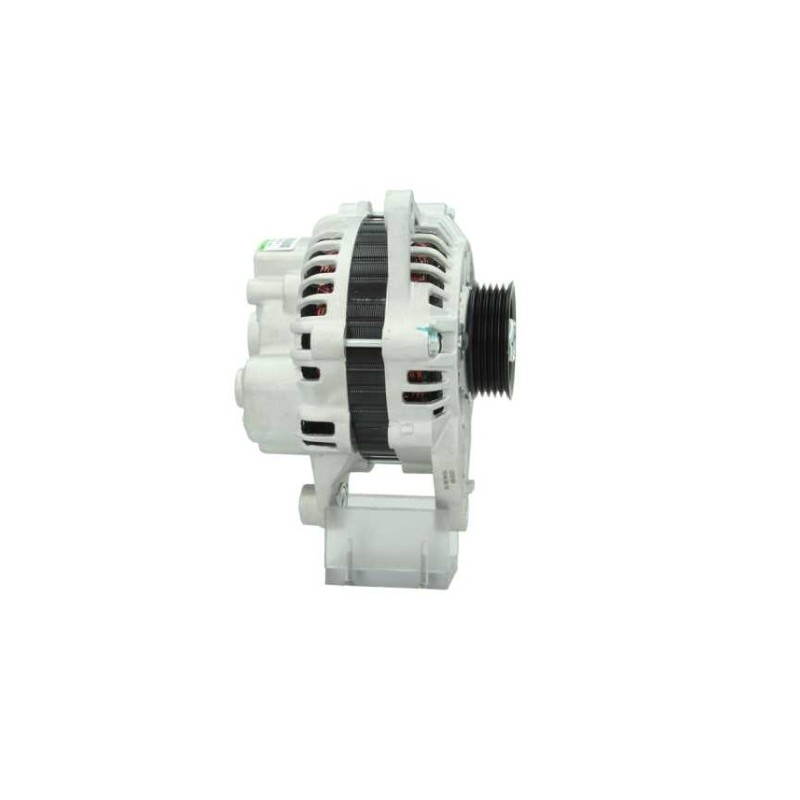

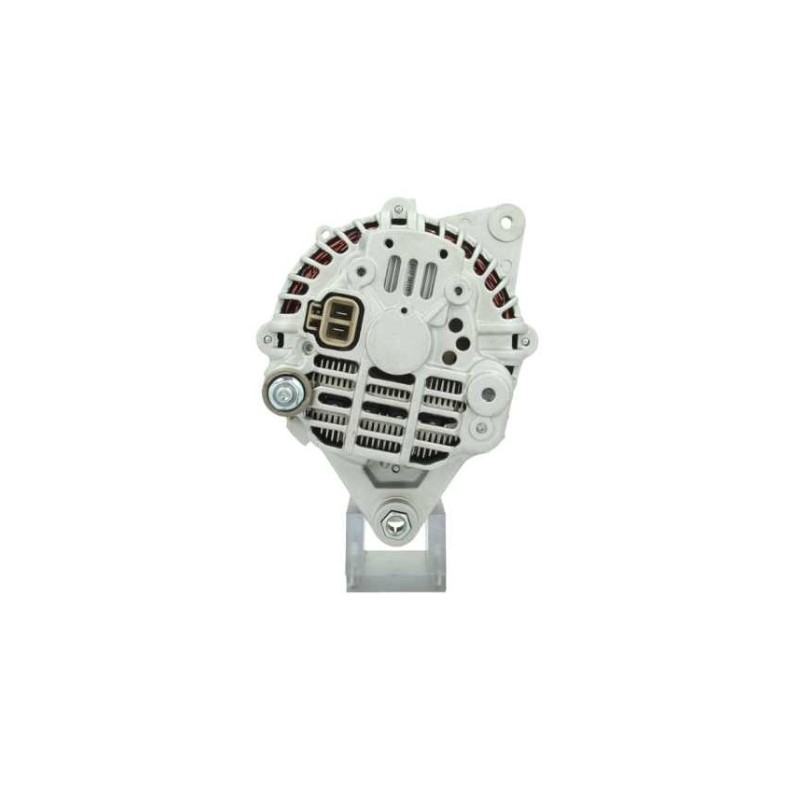

Alternator replacing A003TA0791 / A003TA0791A / MD313395 / MD350608 / A3TA0791 / A3TA0791A
Alternator NEW replacing A003TA0791 / A003TA0791A / MD313395 / MD350608 / A3TA0791 / A3TA0791A
More info
| Voltage | 14 | |
| Amp. | 90 | |
| A | Pulley dist. | 25.00 |
| B | Width/holder arm | 17.00 |
| C | Mount. bracket dist | 54.80 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 53 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 65.00 |
| I | Grooves/pulley | 5 |
| J | Radius | 97.00 |
| J | Radius 2 | 92.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 40 |
| N | Rotation | Cr |

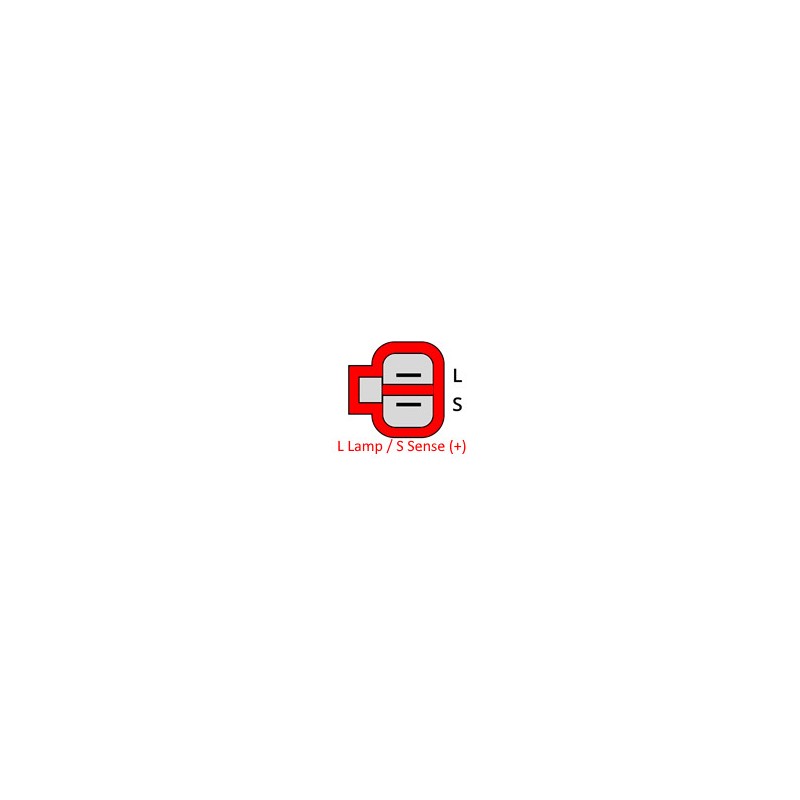

| O | Plug n° 1 | PL07 |
| R | Total length mm | 168.00 |
Replacing:
| 0986081050 | BOSCH Remanufactured |
| 12060204 | EuroTec |
| 12060751 | EuroTec |
| 13615R | WAI |
| 13692N | WAI |
| 13786 | Lester |
| 13786N | WAI |
| 13786R | WAI |
| 155546090 | PSH |
| 20110234 | PRESTOLITE |
| 283548 | Elstock |
| 283550 | Elstock |
| 5668SP | Spidan |
| 6065SP | Spidan |
| 90273171 | WILSON |
| 90273172 | WILSON |
| 90273245 | WILSON |
| 933696 | EDR |
| A003T14491 | MITSUBISHI |
| A003TA0791 | MITSUBISHI |
| A003TA0791A | MITSUBISHI |
| A003TA1191 | MITSUBISHI |
| A3T14491 | MITSUBISHI |
| A3TA0791 | MITSUBISHI |
| A3TA0791A | MITSUBISHI |
| A3TA1191 | MITSUBISHI |
| A3TA1191A | MITSUBISHI |
| ACA970 | ATK |
| ALT5069sa | Electrolog |
| ALT5121sa | Electrolog |
| DRA3696 | DELCO REMY |
| HJA1180IR | HC |
| HJA1601IR | HC |
| J5115056 | Nipparts |
| JA1180IR | HC |
| JA1601IR | HC |
| KTR311092180 | KTR |
| L69380 | ATL |
| L69385 | ATL |
| LRA02744 | LUCAS |
| LRA2743 | LUCAS |
| MD303481 | MITSUBISHI |
| MD313395 | MITSUBISHI |
| MD317119 | MITSUBISHI |
| MD350608 | MITSUBISHI |
| MD350609 | MITSUBISHI |
| SA019 | SOVEREIGN |
| TRA147 | TWA |
Mounted on :
MITSUBISHI (1994-2004)
