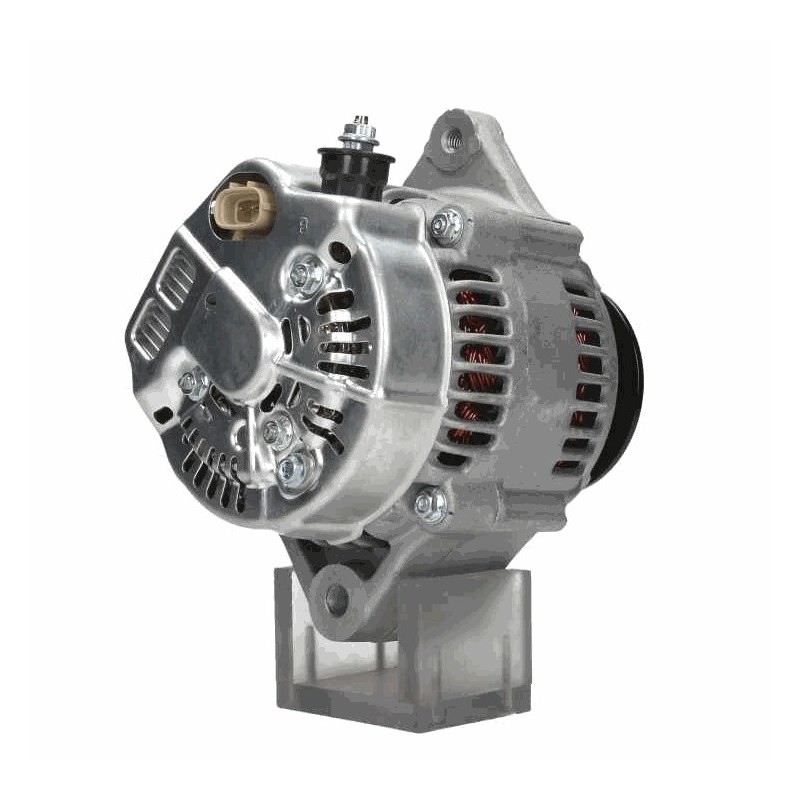

Alternator NEW replacing DENSO 102211-9050 / MITSUBISHI 32A68-04722 / 2A68-04700
Lucas LRA03585
for CATERPILLAR
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
Voltage 14 - Amp 80
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 58.50 |
| E | Belt. adj. brackethole pos. | 60 |
| H | Pulley dia. | 54.20 |
| A | Pulley dist. | 90.70 |
| i | Grooves/pulley | 5 |
| j | Radius | 80.50 |
| j | Radius 2 | 84.00 |
| k | Position B + | M6 |

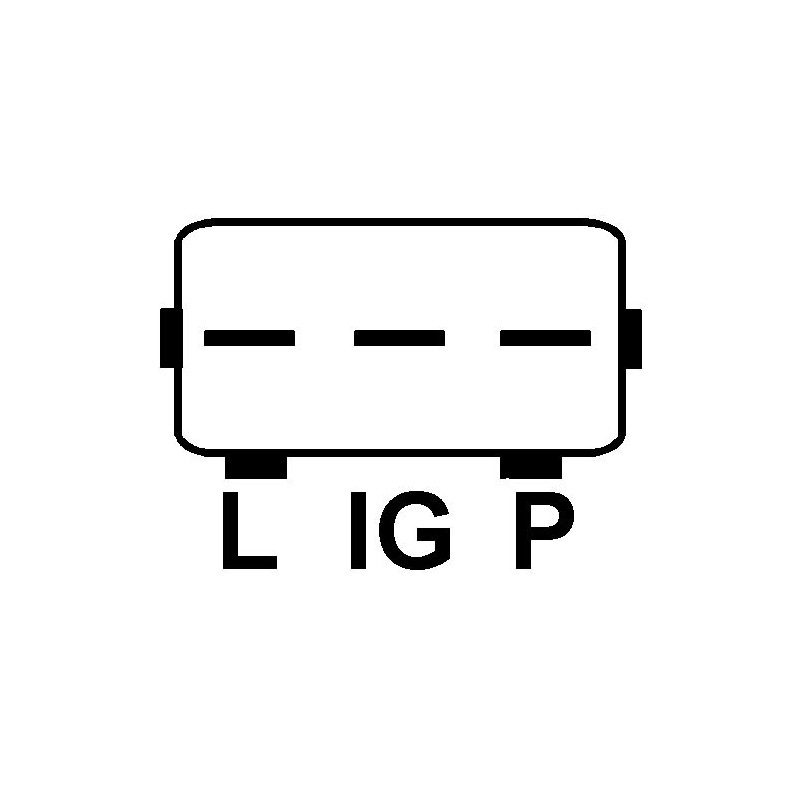

| o | Plug no. 1 | PL128 |
| R | Total length mm | 155.00 |
Replacing | |
|---|---|
| 102211-9050 | DENSO |
| 32A68-04722 | MITSUBISHI |
| 022119050 | DENSO |
| 114770 | Cargo |
| 286695 | Elstock |
| 32A6804700 | MITSUBISHI |
| 32A6804722 | MITSUBISHI |
| 645513080 | PSH |
| LRA03585 | LUCAS |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
Original and adaptable
No return of the old
Amex,CB,Visa,MasterCard in 3D Secure and PayPal
France and International
