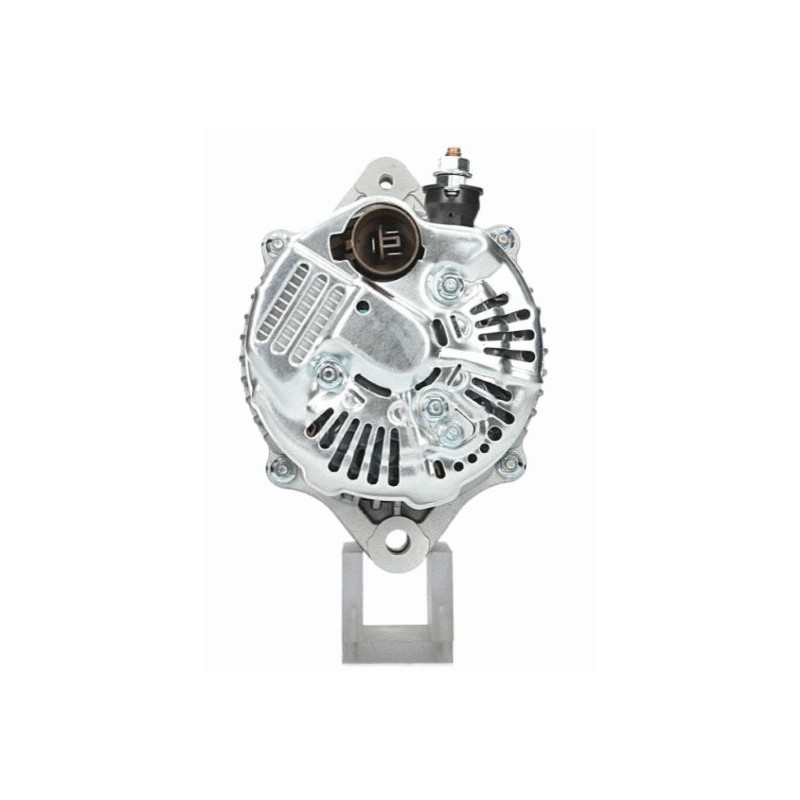

Alternator replacing DENSO 100211-6420 for JOHN DEERE
Alternator NEW for JOHN DEERE replacing :
DELCO REMY 10459517, DENSO 100211-6420, 101211-7130,
JOHN DEERE RE34890, RE46608, RE60745, SE501380, TY6762
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 140 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 90.50 |
| B | Width/holder arm | 58.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 62.50 |
| I | Grooves/pulley | 8 |
| J | Radius | 82.50 |
| J | Radius 2 | 85.50 |
| K | Position B + | M8 |
| K | B+ position en min. | 5 |
| N | Rotation | Cr |

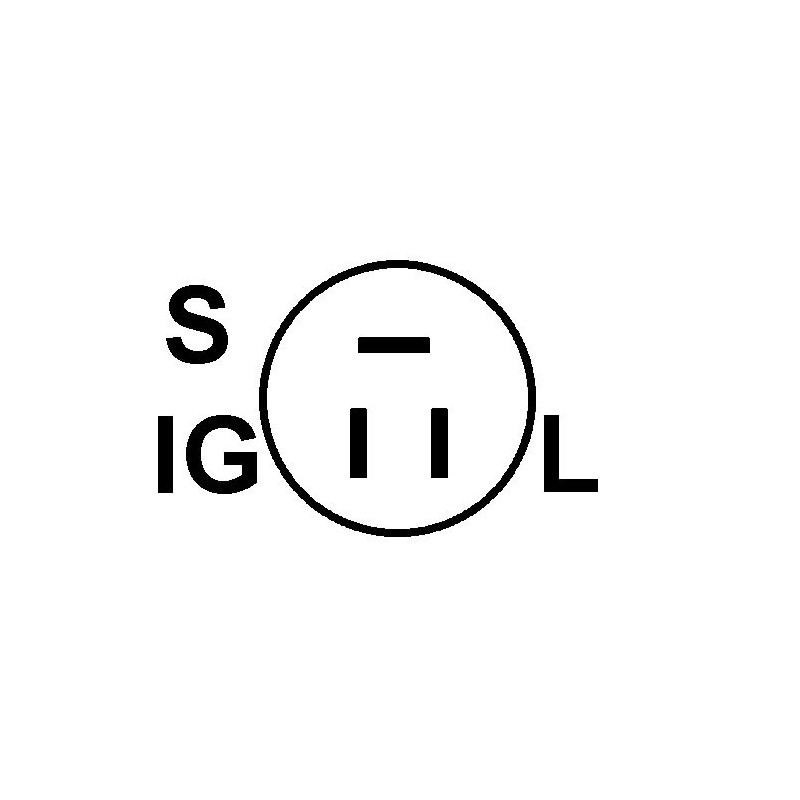

| O | Plug n° 1 | PL12 |
| R | Total length mm | 178.00 |
generic brand
replacing :
| 026420 | Andre Niermann |
| 1002116420 | DENSO |
| 10459517 | DELCO REMY |
| 12195 | EAI |
| 12195N | WAI |
| 15201021 | |
| 283835 | Elstock |
| 290189 | PIC |
| 6115SP | Spidan |
| 635502140 | PSH |
| 90295296 | WILSON |
| ALT6114sa | Electrolog |
| DAN2036 | DENSO |
| HJA1616IR | HC |
| JA1616IR | HC |
| KTR1271004280 | KTR |
| LRA01943 | LUCAS |
| RE46608 | JOHN DEERE |
| TNA013 | TWA |
| TY6762 | JOHN DEERE |
fits:
| Brand | Model | Tipo | Year | Remarks |
|---|---|---|---|---|
| JOHN DEERE | 7710 | 01.1996- | ||
| JOHN DEERE | 7800 7.6 | 09.1992-1.1996 | ||
| JOHN DEERE | 7810 | 01.1996- | ||
| JOHN DEERE | 8120 7.6 | [6076HRW35] | 08.1994- | |
| JOHN DEERE | 8120 8.1 | [6081HRW06] | 03.1996- | |
| JOHN DEERE | 8220 7.6 | [6076HRW35] | 08.1994- |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
