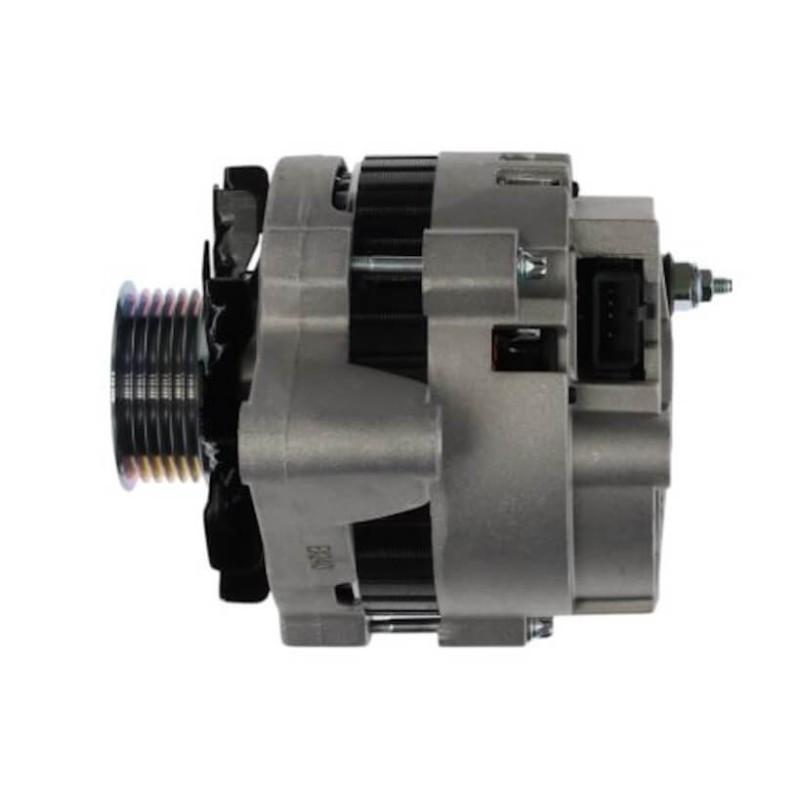

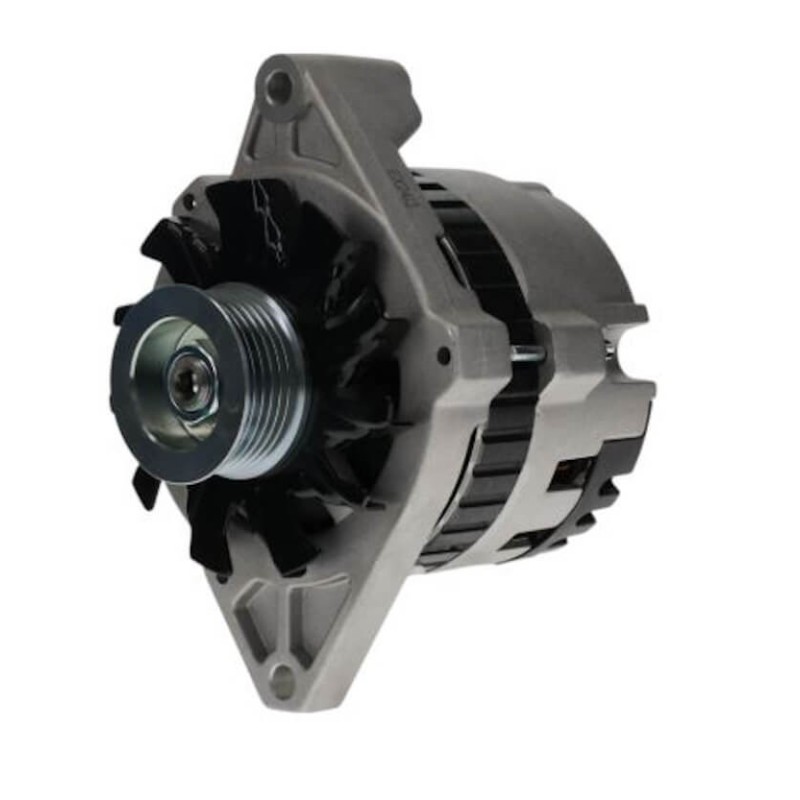

Alternator replacing DELCO REMY 1102607 / 10479962 / 10463214

Information:

Voltage 14

Amp 105

D = Bracket hole 10.30

G = Belt. adj. bracket hole 10.35

B = Width/holder arm 51.00

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 55.70

A = Pulley dist. 72.62

Grooves/pulley 6

J = Radius 89.00

J = Radius 93.25

Position B + M6

Rotation Cr

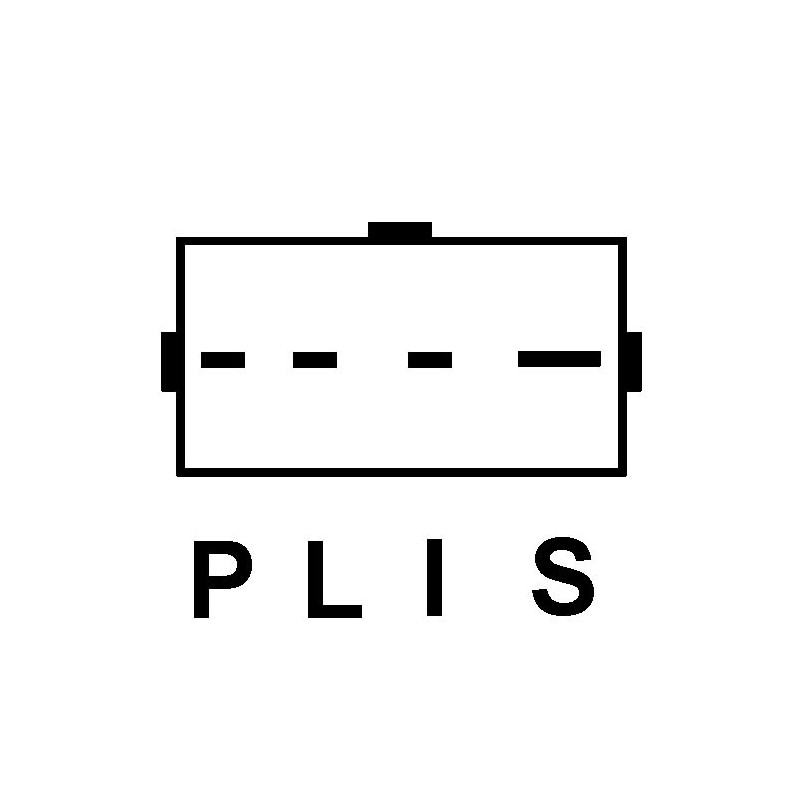

Plug no. 1 PL24

Fan Ef

Pulley Serpentine Pulley

Remarks Replacing: CS130.

R = Total length mm 170.25

brand / wai

             NO CORE EXCHANGE NEEDED

                                 TWO YEARS WARRANTY

Alternator NEW for Buick / CHEVROLET / FORD

OLDSMOBILE / PONTIAC
