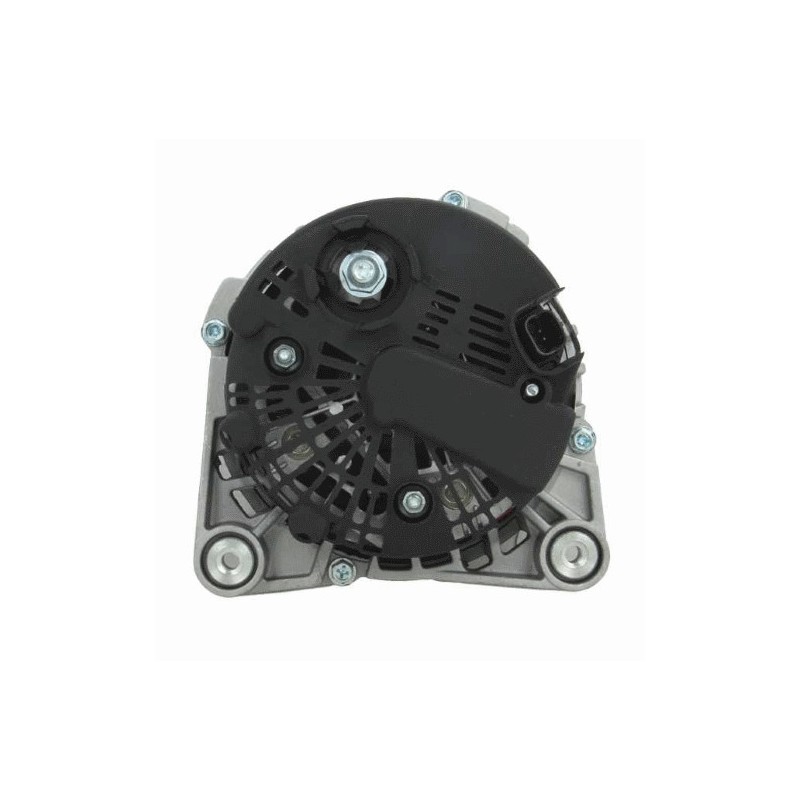

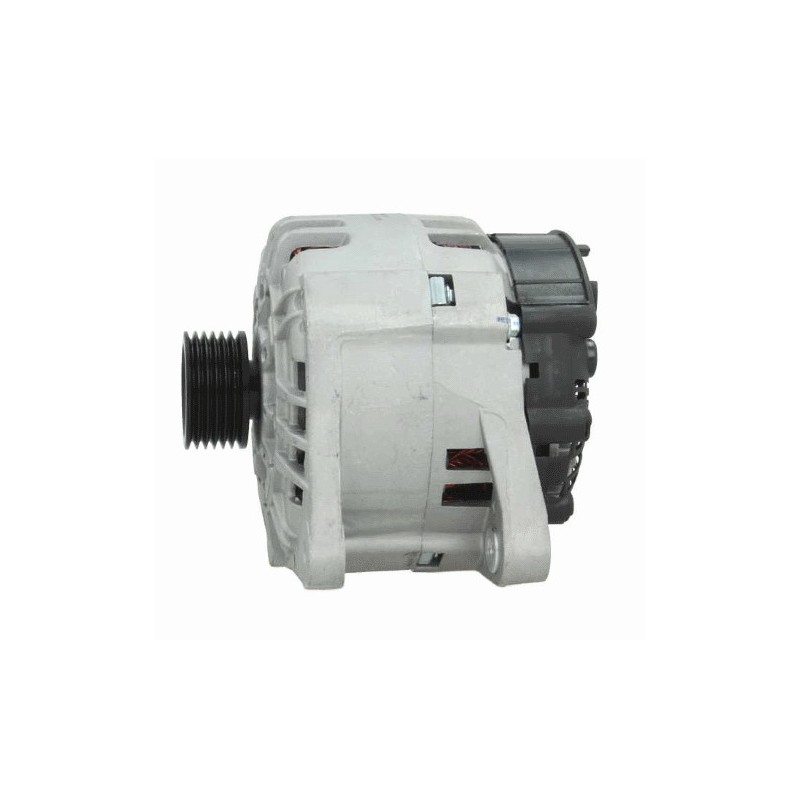

Alternator replacing SG12B030 / SG12B072 / SG12B097 / SG12B122
Alternator NEW replacing :
7711134329 / 8200206251 / DRA4186 / DRA4208 / 2542393 / 2542640
NI CONSIGNE N RETOUR DE L'
TWO YEARS WARRANTY
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 125 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 33.00 |
| B | Width/holder arm | 13.90 |
| C | Mount. bracket dist | 60.70 |
| D | Bracket hole | 8.60 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 8.60 |
| H | Pulley dia. | 49.10 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 50 |
| N | Rotation | Cr |

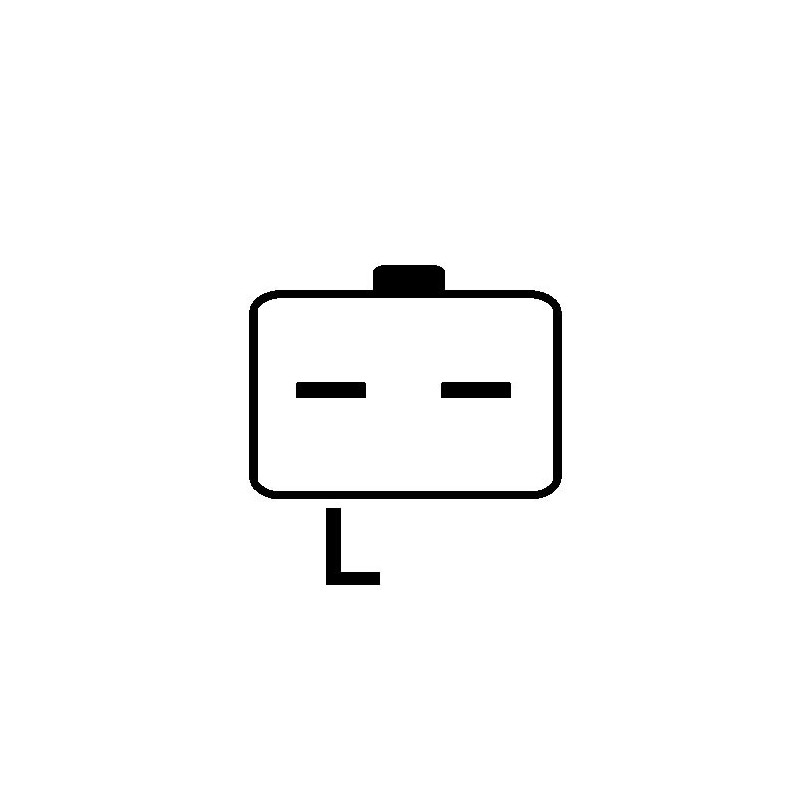

| O | Plug n° 1 | PL55 |
| R | Total length mm | 172.00 |
generic brand
Replacing | |
|---|---|
| 11.204.022 | ISKRA |
| 23100-00Q0K | NISSAN |
| 23100-00QAJ | NISSAN |
| 23100-00QAP | NISSAN |
| 23100-00QBF | NISSAN |
| 2542640 | VALEO |
| 2542722 | VALEO |
| 2542722A | VALEO |
| 2542722B | VALEO |
| 2542722C | VALEO |
| 2543338 | VALEO |
| 2543338A | VALEO |
| 2543386 | VALEO |
| 2543557 | VALEO |
| 2543557A | VALEO |
| 2543557B | VALEO |
| 4411318 | OPEL |
| 4430569 | OPEL |
| 4506176 | OPEL |
| 7700427476 | RENAULT |
| 7711134329 | RENAULT |
| 8200153713 | RENAULT |
| 8200206251 | RENAULT |
| 8200495304 | RENAULT |
| 8200538816 | RENAULT |
| 8200690202 | RENAULT |
| 8253860 | VOLVO |
| 9201826 | OPEL |
| 93160666 | OPEL |
| 93161427 | OPEL |
| CA1661IR | HC-PARTS |
| SG12B030 | VALEO |
| SG12B068 | VALEO |
| SG12B072 | VALEO |
| SG12B097 | VALEO |
| SG12B107 | VALEO |
| SG12B122 | VALEO |
| AAK5788 | ISKRA |
| 113245 | Cargo |
| 12090058 | EuroTec |
| 23059N | WAI |
| 2542393 | VALEO |
| 2542640 | VALEO |
| 2542722 | VALEO |
| 2543338 | VALEO |
| 284610 | Elstock |
| 437423 | VALEO |
| 439464 | VALEO |
| 543557 | VALEO |
| 56804 | EAI |
| 575562125 | PSH |
| 6107SP | Spidan |
| 737983001 | HELLA |
| 746095 | VALEO |
| 7711134329 | RENAULT |
| 8200206251 | RENAULT |
| 8EL737983001 | HELLA |
| 9090169F | Friesen |
| 934186 | EDR |
| 934208 | EDR |
| ALTH237 | UNIPOINT |
| CA1661IR | HC |
| DRA4186 | DELCO REMY |
| DRA4208 | DELCO REMY |
| HCA1661IR | HC |
| IA1434 | MAHLE |
| L69540 | ATL |
| LRA02059 | LUCAS |
| LRA02158 | LUCAS |
| MG91 | MAHLE |
| OAN10417 | Optimum |
| SG12B030 | VALEO |
| SG12B072 | VALEO |
| SG12B097 | VALEO |
| SG12B122 | VALEO |
| TRA186 | TWA |
