Alternator replacing BOSCH 0124225037 / 0124225020 for SMART

Information:

Voltage 14

Amp 85

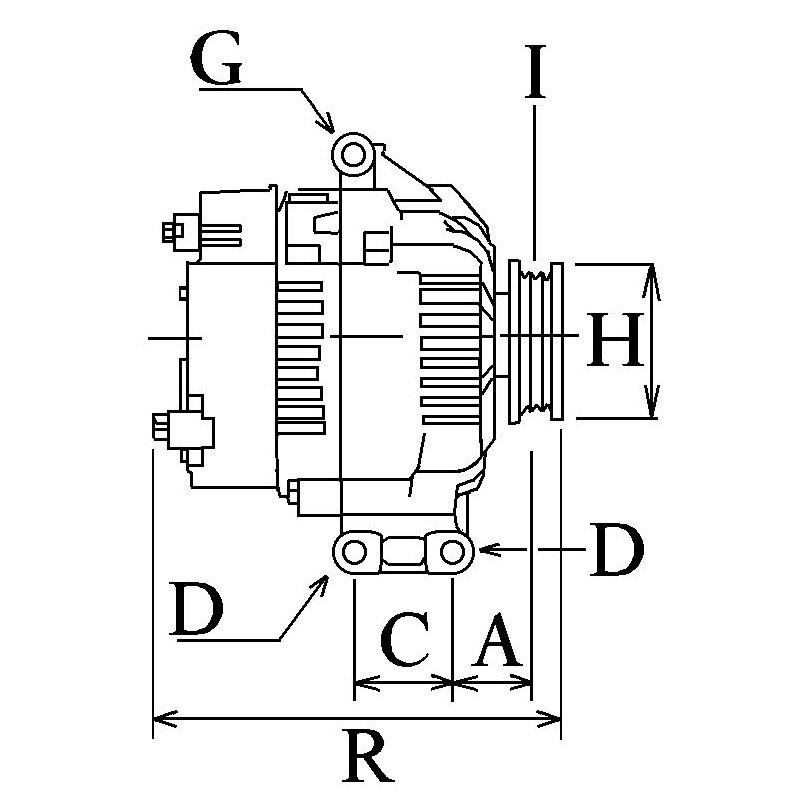

D = Bracket hole 10.60

G = Belt. adj. bracket hole 11.00

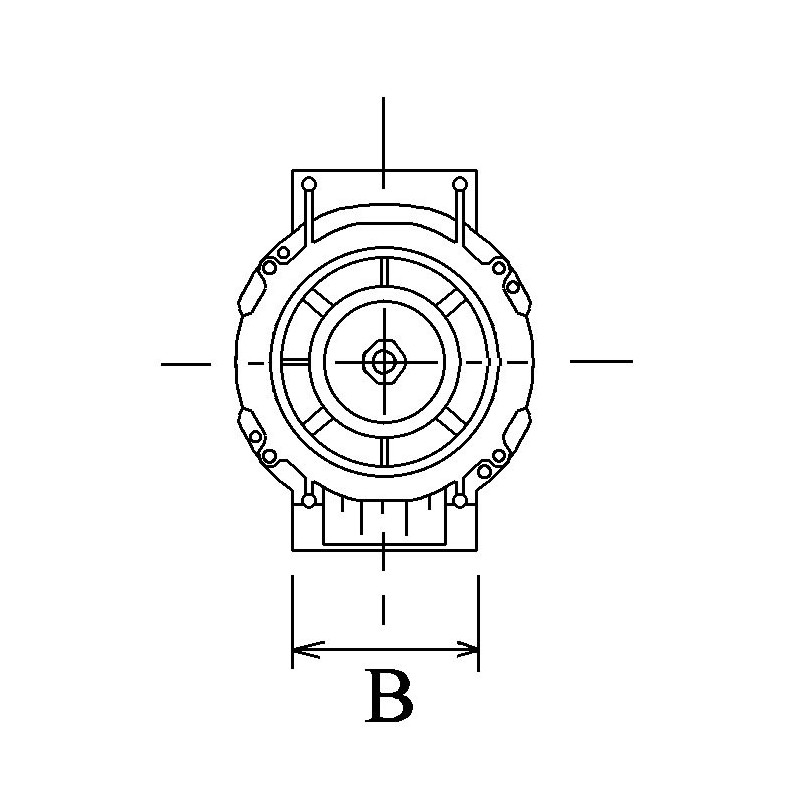

B = Width/holder arm 58.00

E = Belt. adj. brackethole pos. 5

H = Pulley dia. 56.00

A = Pulley dist. 90.00

Grooves/pulley 5

J = Radius 79.00

J = Radius 80.00

Position B + M6

Rotation Cr

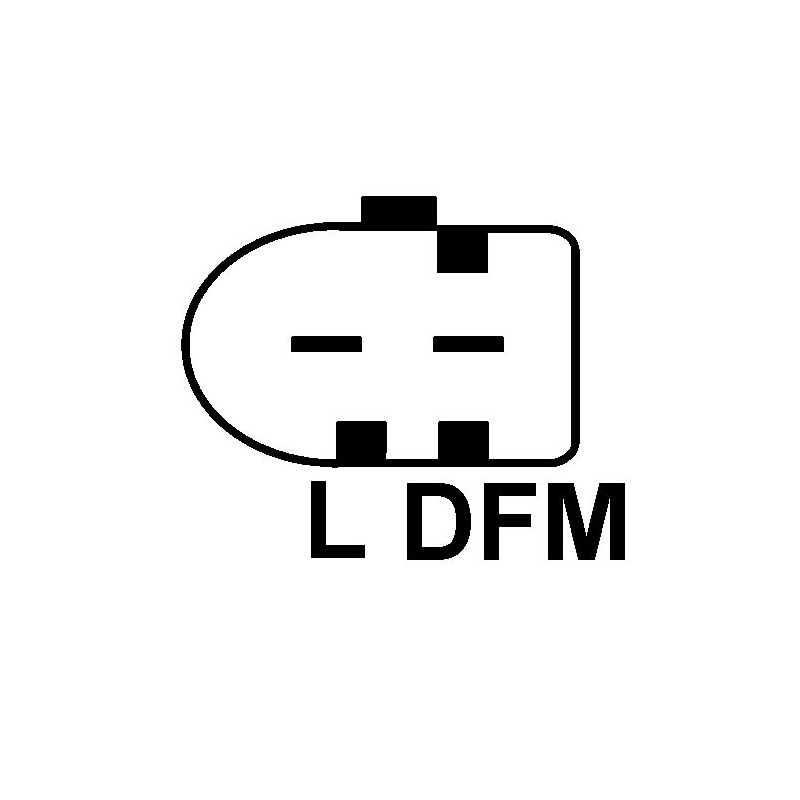

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley

R = Total length mm 172.00

= BOSCH 0124225037 / 0124225020 / 0986044490

= SMART 0004717V006 / 0004717V005

= MERCEDES-BENZ 0111548002 / 6601540902 / A0111548002 / A6601540902

= VALEO 437737

                                 NO CORE EXCHANGE NEEDED

                                                  TWO YEARS WARRANTY
