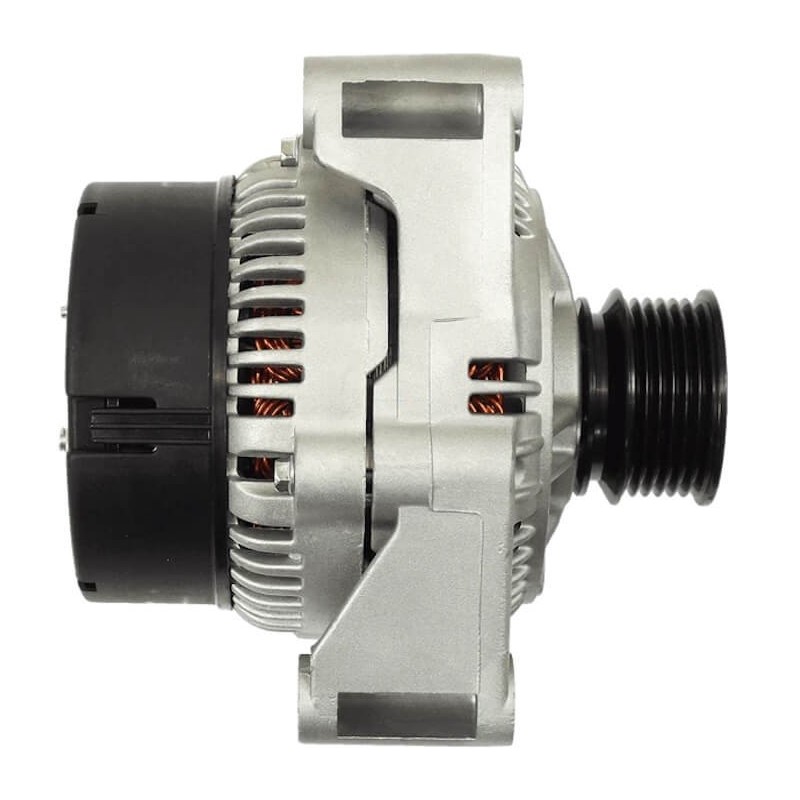

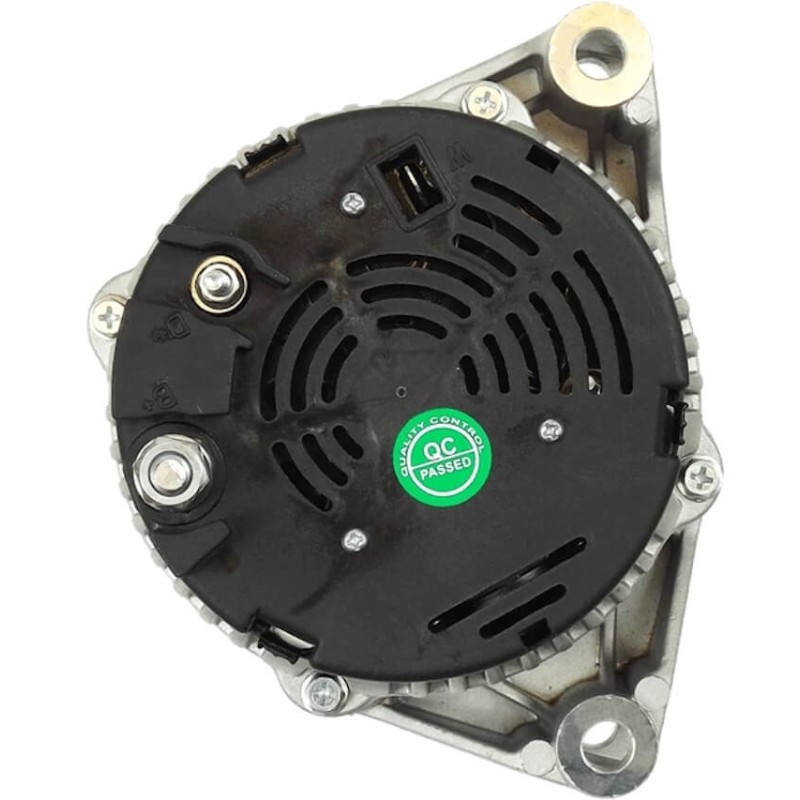

Alternator replacing A13VI74 / A13VI75 / 2541699 /2541683A / 2541683 / 2541680
Alternator NEW replacing :
BOSCH 0120485022, 0123310005, 0123315005 MERCEDES-BENZ 005-154-01-02, 008-154-51-02, 008-154-52-02, 008-154-96-02, 008-154-97-02, 008154960280, 009-154-41-02, 009-154-42-02, 009154410280, 81545202, A0081545202, A0081549602, A008154960280, A0081549702, A009-154-41-02, A009154410280, A0091544202
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |
| Plug type | W | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 56.00 |
| E | Belt. adj. brackethole pos. | 10 |
| H | Pulley dia. | 55.50 |
| A | Pulley dist. | 92.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL_NA |
| Q | Tipo prise W | 6.30 |
| R | Total length mm | 190.00 |
Replacing | |
|---|---|
| 0081545102 | MERCEDES BENZ |
| 0081545202 | MERCEDES BENZ |
| 0081549602 | MERCEDES BENZ |
| 0081549702 | MERCEDES BENZ |
| 0091544002 | MERCEDES BENZ |
| 0091544102 | MERCEDES BENZ |
| 0091544202 | MERCEDES BENZ |
| 0120485011 | BOSCH |
| 0120485012 | BOSCH |
| 0120485022 | BOSCH |
| 0123310005 | BOSCH |
| 0123315005 | BOSCH |
| 0986036820 | BOSCH |
| 11.201.744 | ISKRA |
| 11.203.024 | ISKRA |
| 2541680 | VALEO |
| 2541680A | VALEO |
| 2541683 | VALEO |
| 2541683A | VALEO |
| 2541699 | VALEO |
| A0081545202 | MERCEDES BENZ |
| A0081549602 | MERCEDES BENZ |
| A0081549702 | MERCEDES BENZ |
| A0091544002 | MERCEDES BENZ |
| A0091544102 | MERCEDES BENZ |
| A0091544202 | MERCEDES BENZ |
| a13vi74 | VALEO |
| a13vi75 | VALEO |
| aak5127 | ISKRA |
| aak5319 | ISKRA |
| ca724ir | HC-PARTS |
| 0081549602 | MERCEDES-BENZ |
| 0091544102 | MERCEDES-BENZ |
| 0120485022 | BOSCH |
| 0986036820 | BOSCH |
| 12036820 | EuroTec |
| 12038620 | EuroTec |
| 13355R | WAI |
| 13376N | WAI |
| 220279A | PIC |
| 2541680 | VALEO |
| 2541699 | VALEO |
| 2541775 | VALEO |
| 2580SP | Spidan |
| 281953 | Elstock |
| 436450 | VALEO |
| 5035 | Lester |
| 555502070 | PSH |
| 56350 | EAI |
| 90156197 | WILSON |
| 9036820F | Friesen |
| A0081549602 | MERCEDES-BENZ |
| A13VI74 | VALEO |
| A13VI79 | VALEO |
| AAK5127 | MAHLE |
| CA833IR | HC |
| DRA6820 | DELCO REMY |
| HCA833IR | HC |
| L36820 | ATL |
| LRB00192 | LUCAS |
| W27245 | van Heck |
generic brand
