Alternator replacing BOSCH 0121715115 / 0121715015 / 0121715011

Information:

Rotation Cr

Amp 180

Voltage 14

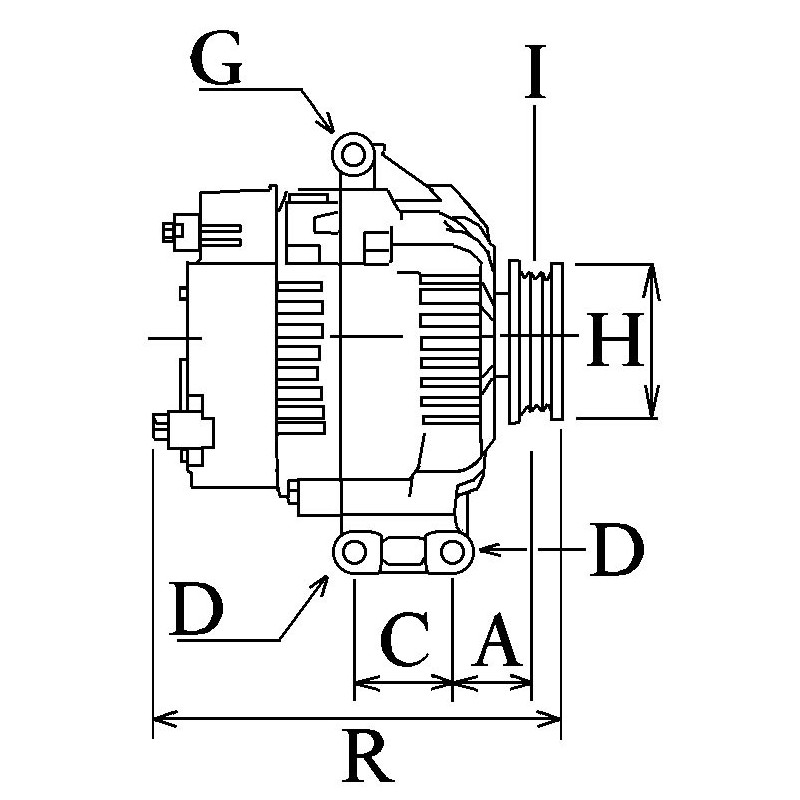

D = Bracket hole 9.20

G = Belt. adj. bracket hole 9.30

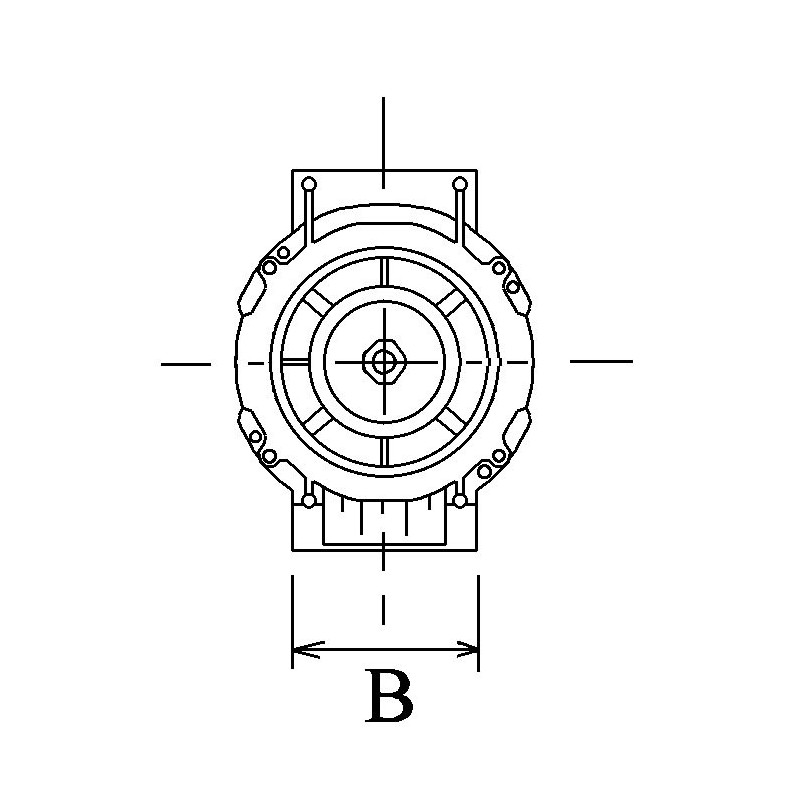

B = Width/holder arm 70.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 56.00

H = Pulley dia. 49.65

A = Pulley dist. 31.00

Grooves/pulley 7

Position B + M8

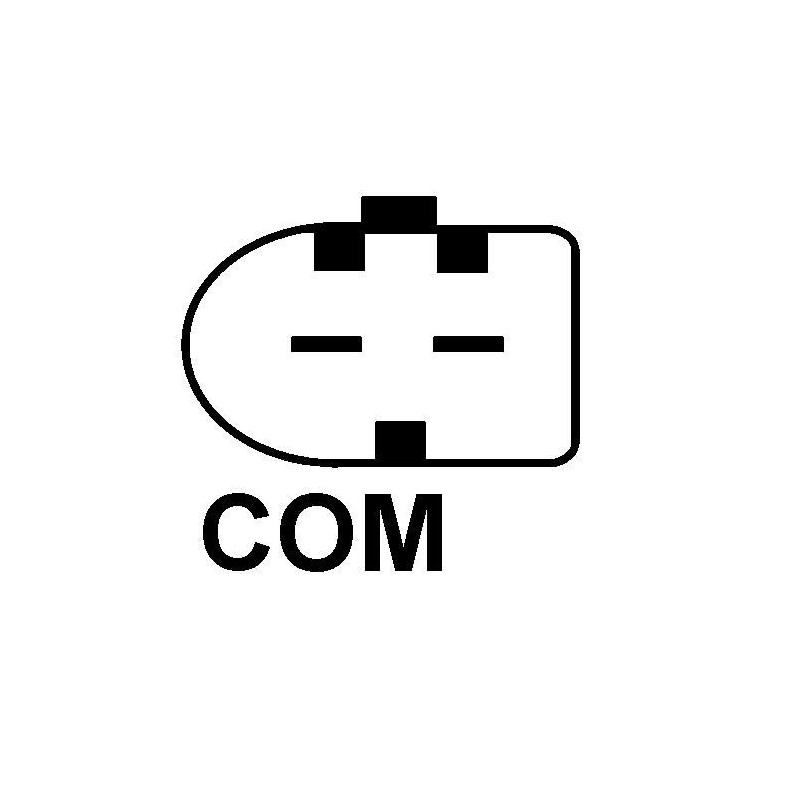

Plug no. 1 PL86

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

Tipo regulator Ir

R = Total length mm 183.00

Communication LIN

fits:

- MERCEDES-BENZ E280 3,0 diesel engine OM642.920 / OM642.921 190cv after 03/2005

- MERCEDES-BENZ E320 3,0 diesel engine OM642.920 224 cv after 03/2005

- MERCEDES-BENZ CLS 320 3,0 diesel engine OM642.920 224 cv after 03/2005
