Alternator replacing BOSCH 0123510101 / 0123510080 / 0123510049

Information:

Rotation Cr

Amp 115

Voltage 14

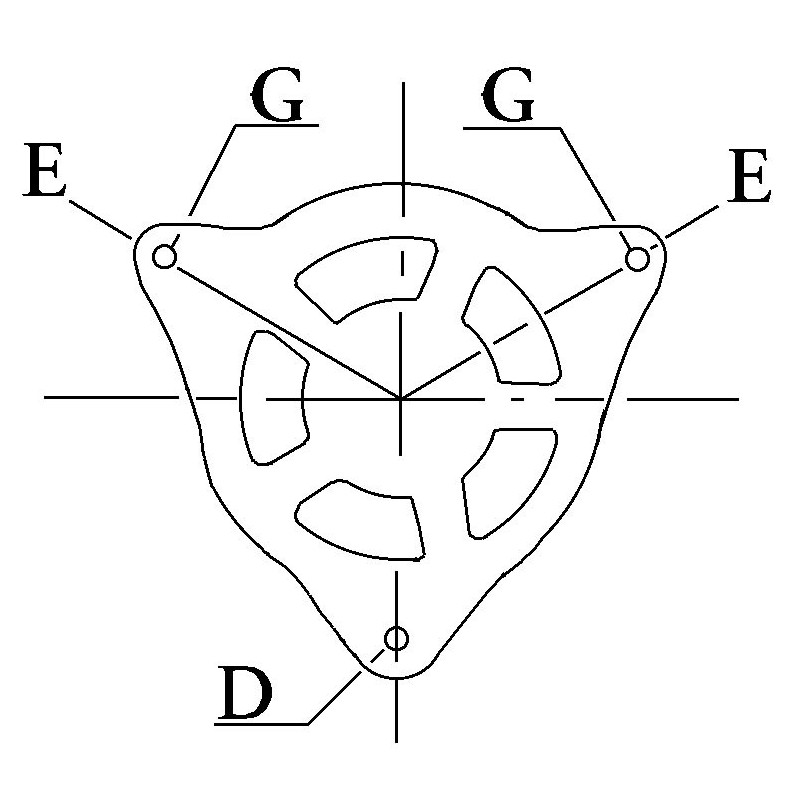

D = Bracket hole 10.00

G = Belt. adj. bracket hole 10.00

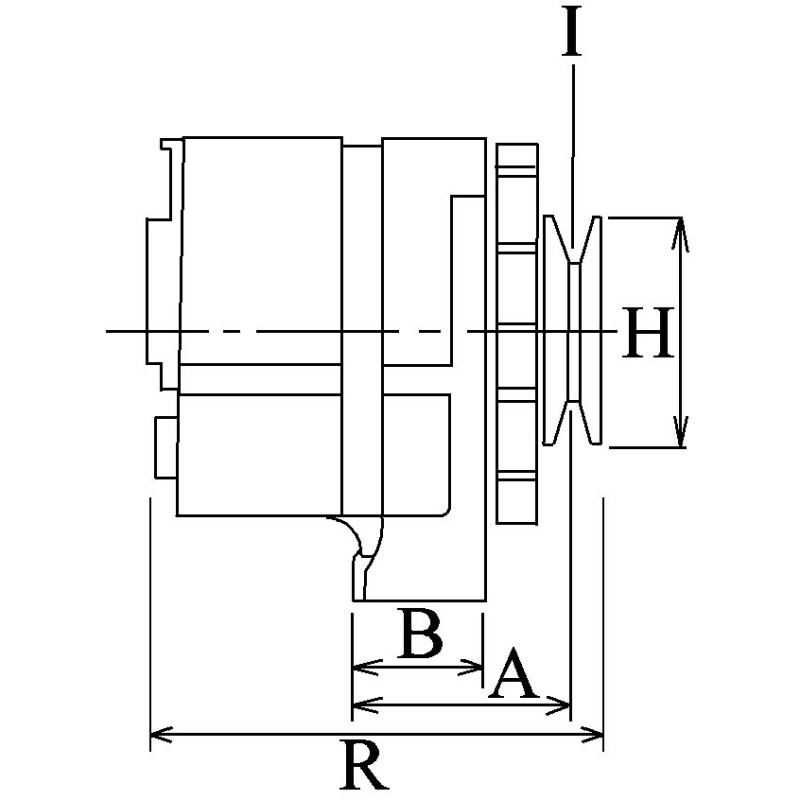

B = Width/holder arm 56.00

E =  Belt. adj. brackethole pos. 50

H =  Pulley dia. 55.90

A =  Pulley dist. 92.00

Grooves/pulley 6

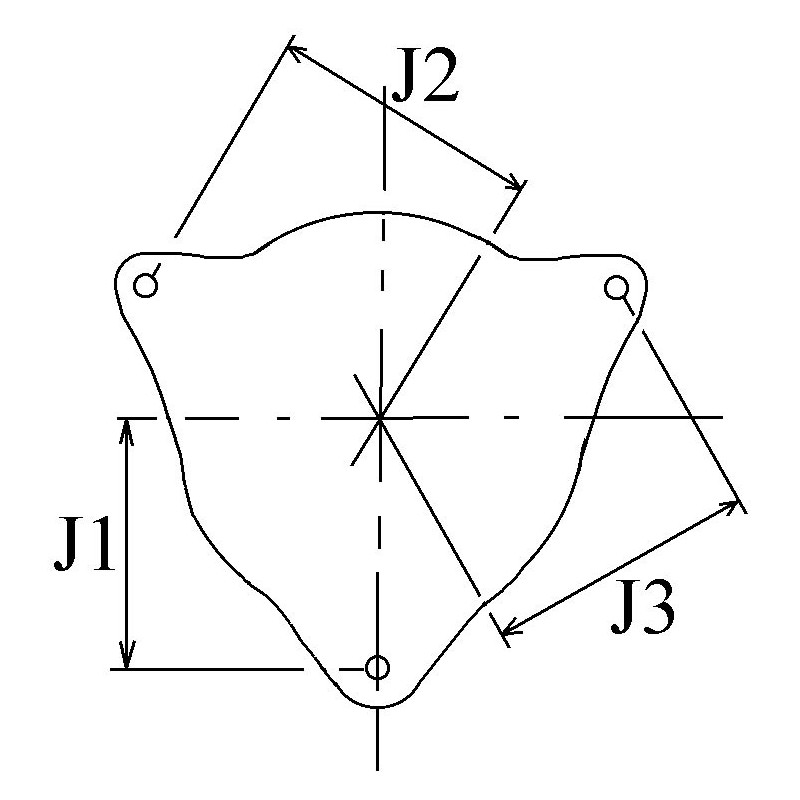

J =  Radius 90.00

J =  Radius 2 90.00

Position B + M8

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

Tipo regulator Ir

R =  Total length mm 205.00

= BOSCH 0123510101 / 0123510080 / 0123510049 / 0123510038

0986039360 / 0986039361 / 0986041220 / 0986039390

0986041120 / 0986041121

= DELCO REMY DRB1120

= HELLA 8EL737439001

= ISKRA aan5132 / 11.203.115 / IA1110

= LUCAS LRA01723

= MERCEDES-BENZ 0101540102 / 0101540502 / 0101549402

0111540802 / A0101540102 / A0101549402
