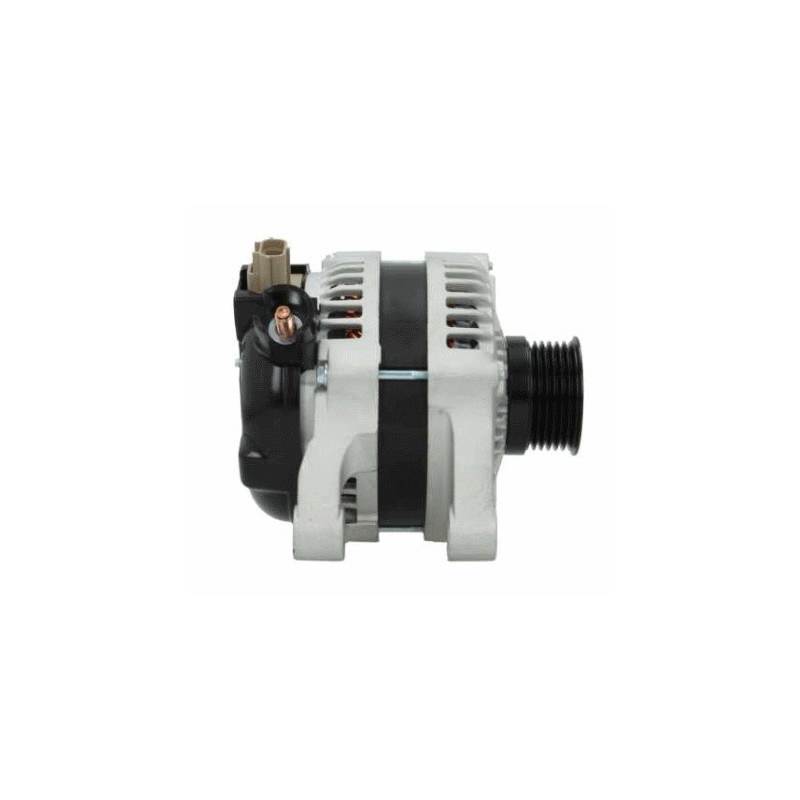

Alternator replaces 3M5T10300FA / 3M5T10300GA / 63321880 / 63321895
New alternator :
Replacing | ||
|---|---|---|
| 3M5T10300FA | FORD | |
| 3M5T10300GA | FORD | |
| 63321880 | MAGNETI MARELLI | |
| 63321895 | MAGNETI MARELLI | |
| 8666580 | FORD | |
| Y662-18-300A | MAZDA | |
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 160 | |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 42.00 |
| B | Width/holder arm | 21.00 |
| C | Mount. bracket dist. | 45.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 50 |
| G | Belt. adj. bracket hole | 10.50 |
| H | Pulley dia. | 54.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | B+ position | M8 |
| K | Position/B+ in min. | 2 |
| N | Rotation | CW |

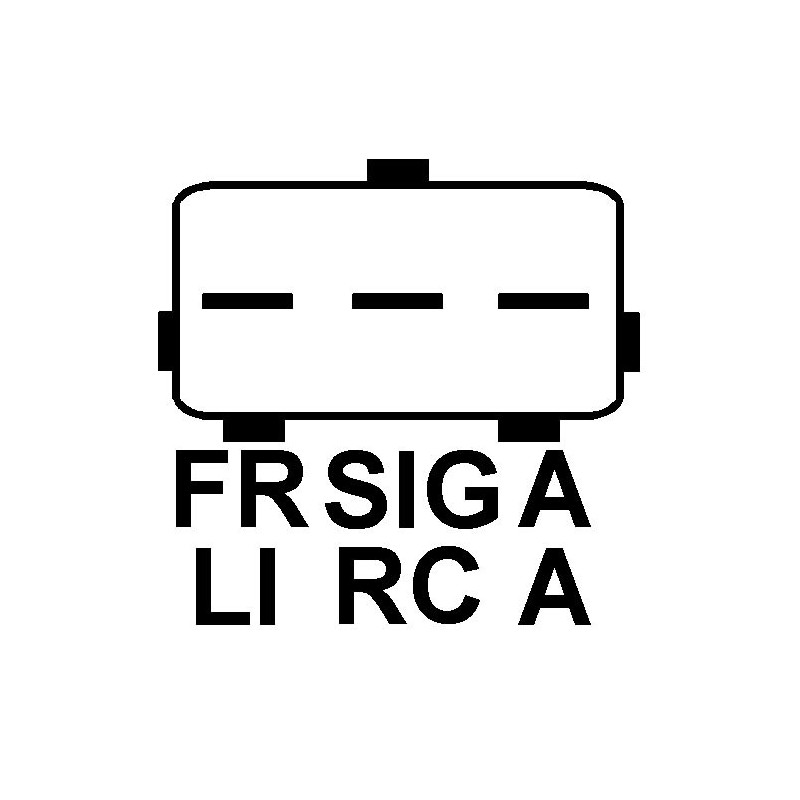

| O | Plug no. 1 | PL57 |
| R | Total length mm | 170.00 |
generic brand
