Alternator replacing VALEO TG11C015 / 2542731 forAUDI / SEAT / SKODA / VW

Information:

Voltage 14

Amp 110

D = Bracket hole 8.50

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 14.00

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 61.00

H = Pulley dia. 48.00

A = Pulley dist. 30.00

Grooves/pulley 6

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

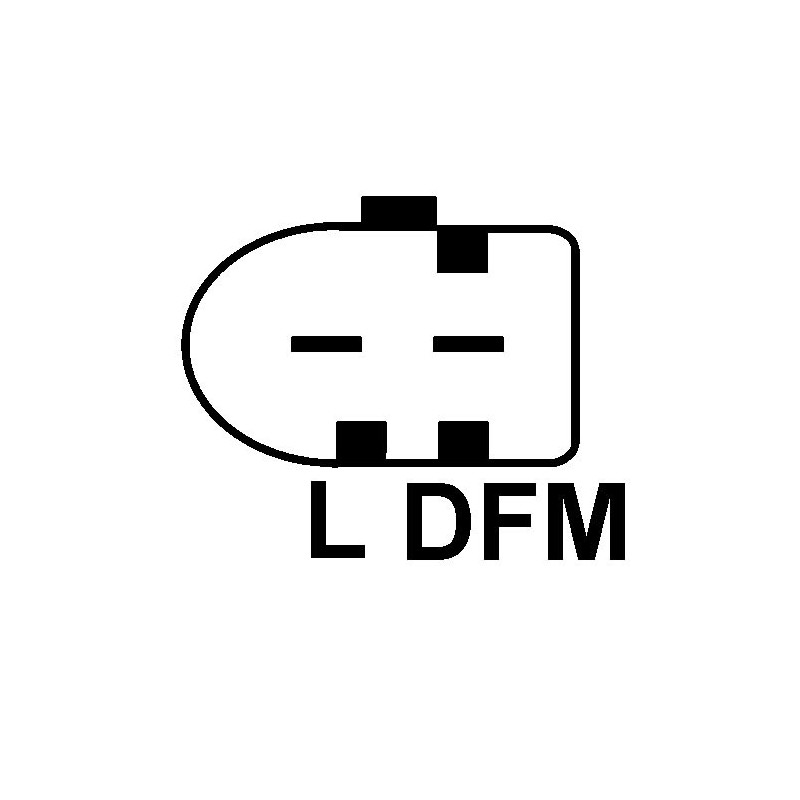

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley

Belt. adj. bracket hole (M8)

= BOSCH 0124325044 / 0124325095 / 0124325128 / 0986045320

= DELCO REMY DRB5320

= HELLA 8EL738202001

= LUCAS LRA02361

= VOLKSWAGEN /AUDI / SKODA 03c903023 / 03C903023B / 03C903023BX / 03C903023D / 03C903023DX

= 1294601 / 2205544 / 437456 / 442024 / 542731 / 9045320F / 945320

                           NO CORE EXCHANGE NEEDED

                                               TWO YEARS WARRANTY
