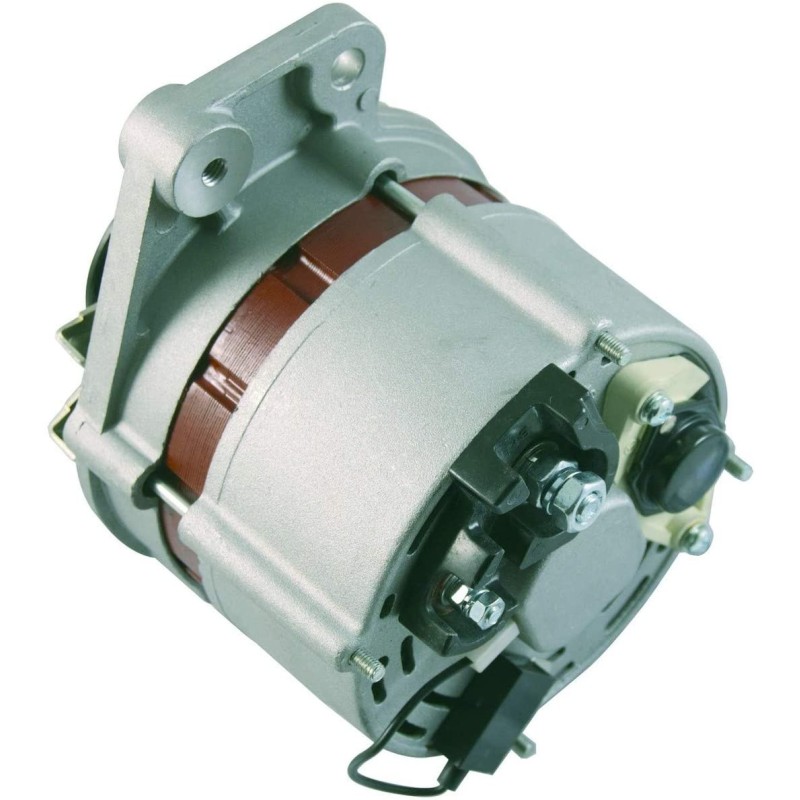

Alternator replacing 0120489383 / 0120489382 / 0120489005

Information:

Voltage 14

Amp 55

D = Bracket hole 10.20

G = Belt. adj. bracket hole 7.00

B = Width/holder arm 56.00

E = Belt. adj. brackethole pos. 3

H = Pulley dia. 68.50

A = Pulley dist. 78.50

Grooves/pulley 1

J Radius 90.00

J Radius 90.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

generic brand

= BOSCH 0120488196 / 0120488197 / 0120488198 / 0120488199 / 0120488226 / 0120488236 / 0120488237 / 0120488239 / 0120488240 / 0120488241 / 0120488265 / 0120489383 / 0120489382 / 0120489005 / 0120488265 / 0120488239
0120488197 / 0986034520 / 0986034521 / 0986036260 / 0986041630

= VOLKSWAGEN 036903017h / 036903017HX / 036903017KX / 036903025 / 036903025B / 036903025L

036903025P / 036903025Q / 036903025QX / 036903025S / 036903025T / 036903027 / 036903027A

036903027B / 036903027D / 036903027E / 036903027G / 039903025B /

AUDI / VOLKSWAGEN 031-903-023, 031-903-023D, 036-903-017HX, 036-903-017JX, 036-903-017K, 036-903-017KX, 036-903-017L, 036-903-017LX, 036-903-023, 036-903-023SX, 036-903-025A, 036-903-025L, 036-903-025M, 036-903-025S, 036-903-027A, 036-903-027D, 036-903-027E, 036903017HX, 036903017KX, 036903023B, 036903025QX, 036903025T, 036903027B, 036903027C, 036903027G, 068-903-017R, 068-903-017T, 068-903-017TX, 068-903-021H, 068-903-029T, 068-903-031, 068-903-031A, 068-903-031B, 068-903-031E, 068-903-031F, 068-903-031G, 068-903-031H, 068-903-031HX, 068903017TX, 074-903-023, 74903023, BOSCH 0 120 488 196, 0 120 488 197, 0 120 488 198, 0 120 488 199, 0 120 488 226, 0 120 488 227, 0 120 488 237, 0 120 488 238, 0 120 488 239, 0 120 488 240, 0 120 489 372, 0 120 489 373, 0 120 489 374, 0 120 489 375, 0 120 489 376, 0 120 489 377, 0 120 489 378, 0 120 489 379, 0 120 489 380, 0 120 489 381, 0 120 489 382, 0 120 489 383, 0 120 489 442, 0 120 489 449, 0 120 489 497, FIAT 46431710, LETRIKA (ISKRA) 11.201.257, 11.201.611, LETRIKA (ISKRA) Tech. AAK1140, AAK1150, AAK3510, AAK4106, MAGNETI MARELLI 063321023010, 943356674, 943356675010, 943356676, 943356678, 943356678010, 943356679, 943356681, 944390345300, 944390349900, MAR570, MAR572, MAR574, MAR575, MAR577, PARIS-RHONE A13E10, A13E42, A13E43, VALEO 2523203, 2940309A, 436299, A13E08, A13E09, A13E10, A13E11, A13E42, A13E43, A13E58
