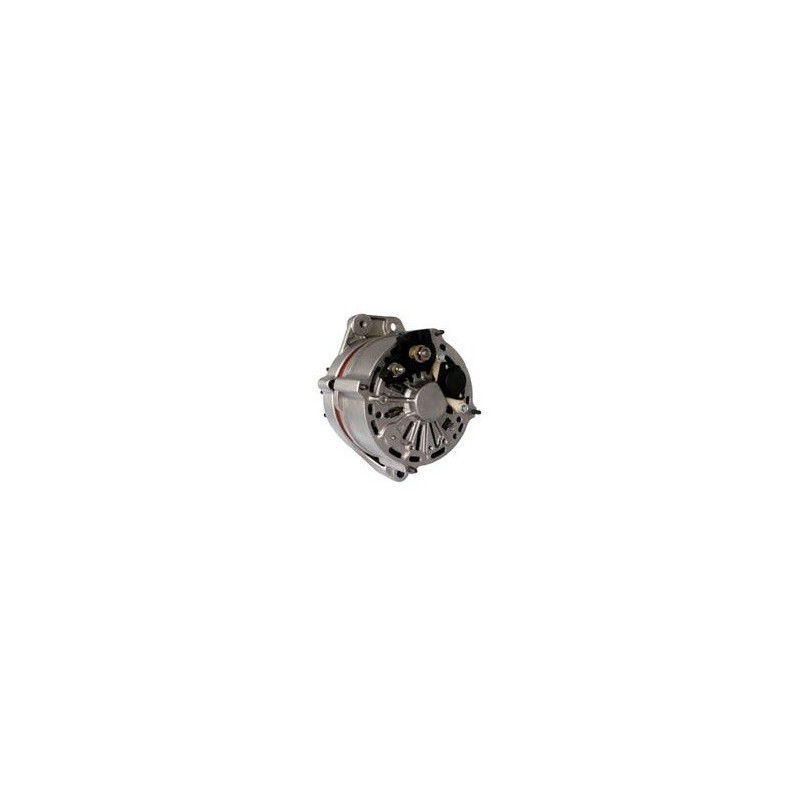

Alternator replacing BOSCH 0120469723 / 0120469722 / 0120469021
Alternator for VW Tranporter / Passat
= AUDI 68903029H /068903029J / 068903029K / 68903031RX 68903029J / 068903017QX / 074903025A / 68903031R / 74903023A 068903031RX / 068903031R / 68903017QX / 068903029H
074903023A / 68903029K / 74903025A
NO CORE EXCHANGE NEEDED
More info
Information:
Voltage 14
Amp 90
Plug type W
D = Bracket hole 10.30
G = Belt. adj. bracket hole M8-1.25
B = Width/holder arm 55.80
E = Belt. adj. brackethole pos. 2
H = Pulley dia. 73.00
A = Pulley dist. 100.00
Grooves/pulley 1
J = Radius 90.00
J = Radius 87.00
Position B + M8
Rotation Cr
Plug no. 1 PL_NA
Fan Ef
Pulley Pulley
R = Total length mm 185.00
generic brand
replacing
=AUDI 68903029H /068903029J / 068903029K / 68903031RX 68903029J / 068903017QX / 074903025A / 68903031R / 74903023A 068903031RX / 068903031R / 68903017QX / 068903029H
074903023A / 68903029K / 74903025A
= BOSCH B120500331 / B120500330 / 0120469723 / 0120469722 / 0120469021 / 0120469718 / 0986036790
= DELCO REMY DRA6790
= HELLA 8EL725893001
= LUCAS LRA02644
= VOLKSWAGEN 068903017q / 068903017QX / 068903029k
068903031RX / 074903025a
for
| Marke | Model | Tipo | Year |
| VW | Passat 1.6 TD | [RA] | 08.1998-09.1993 |
| VW | Passat 1.6 TD | [SB] | 08.1998-09.1993 |
| VW | Passat 1.9 D | [1Y] | 05.1989-10.1993 |
| VW | Transporter 1.5 | 07.1966-07.1967 | |
| VW | Transporter 1.6 | 06.1996-07.1997 | |
| VW | Transporter 1.6 D | [CS] | 01.1981-07.1987 |
| VW | Transporter 1.6 TD | [JX] | 08.1984-07.1992 |
| VW | Transporter 1.6 TD | [JX] | 10.1984-07.1992 |
| VW | Transporter 1.6 TD Syncro | [JX] | 03.1986-07.1992 |
| VW | Transporter 1.7 D | [KY] | 08.1984-07.1992 |
| VW | Transporter 1.7 D | [KY] | 10.1986-07.1992 |
| VW | Transporter 1.7 D | [KY] | 07.1989-07.1992 |
| VW | Transporter 2.4 D | [AAB] | 07.1990-04.1998 |
| VW | Transporter 2.4 D | [AAB] | 09.1990-04.1998 |
| VW | Transporter 2.4 D Syncro | [AAB] | 10.1992-09.1998 |
| VW | Transporter 2.5 | [AAF] | 11.1990-06.2003 |
| VW | Transporter 2.5 | [AAF] | 11.1990-04.2003 |
| VW | Transporter 2.5 | [ACU] | 11.1990-06.2003 |
| VW | Transporter 2.5 | [ACU] | 11.1990-04.2003 |
| VW | Transporter 2.5 | [AEN] | 11.1990-06.2003 |
| VW | Transporter 2.5 | [AEN] | 11.1990-04.2003 |
| VW | Transporter 2.5 | [AEU] | 11.1990-06.2003 |
| VW | Transporter 2.5 | [AEU] | 11.1990-04.2003 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
