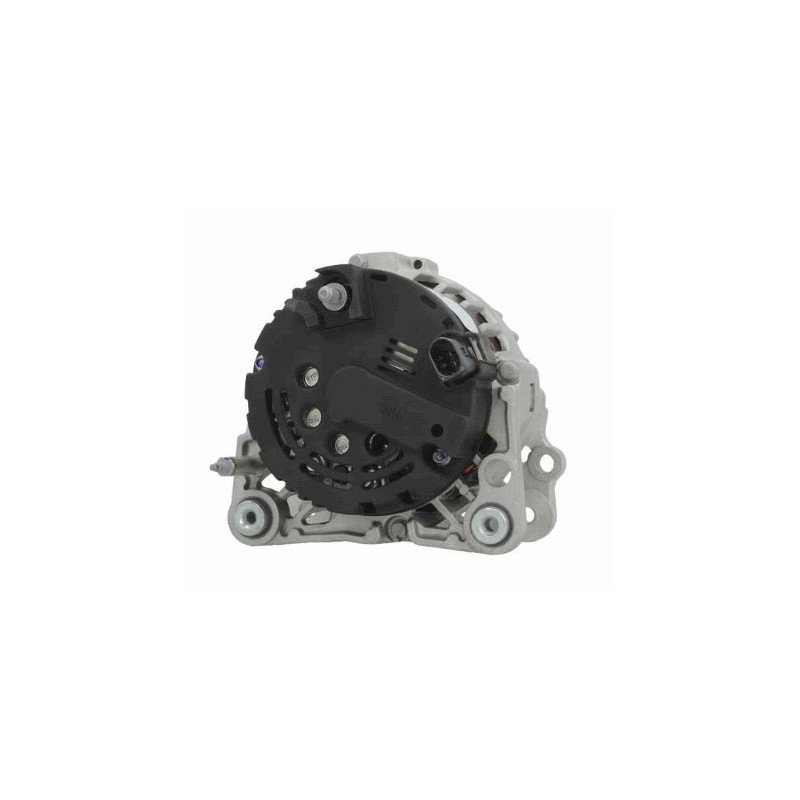

Alternator VALEO SG9B042 / SG9B017 / 2542507

Information:

Rotation Cr

Amp 90

Voltage 14

D = Bracket hole 8.50

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 14.00

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 60.85

H = Pulley dia. 56.00

A = Pulley dist. 30.00

Grooves/pulley 5

J = Radius 90.00

J = Radius 2 90.00

Position B + M8

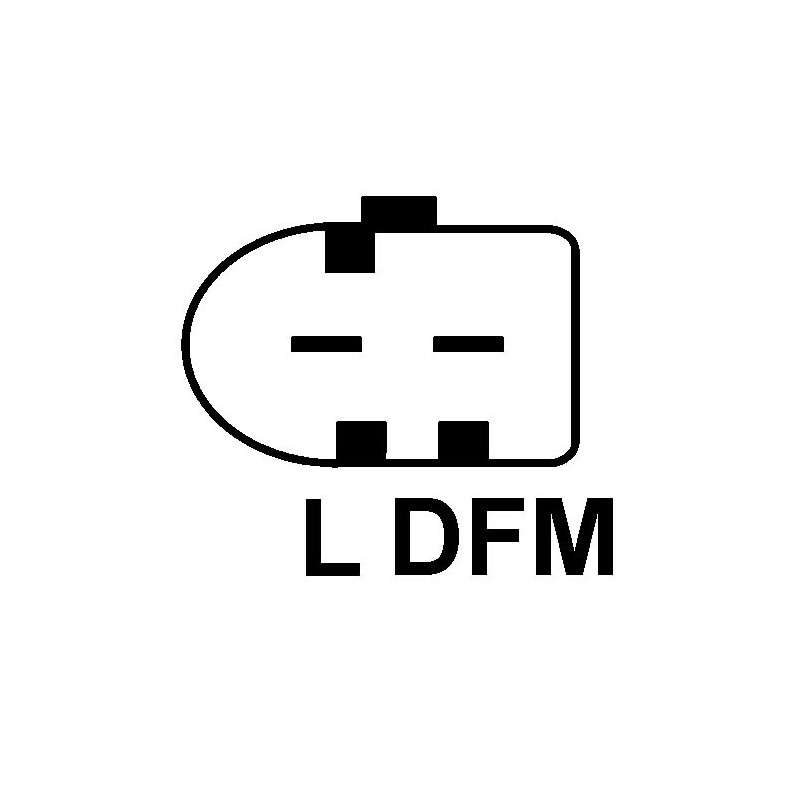

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

Tipo regulator Ir

R = Total length mm 174.00

= 305525090 / 437340 / 439327 / 542507 / 8EL737777001

DRB4850 / 9044850F / LRA01865

Used onnotamment on véhicule :

AUDI - A4 - 1.9 Di - 1896CCM - 75CH - 55KW

AUDI - A4 - 1.9 TDI - 1896CCM - 110CH - 81KW

AUDI - A4 - 1.9 TDI quattro - 1896CCM - 116CH - 85KW

AUDI - A4 Front - 1.9 Di - 1896CCM - 75CH - 55KW

AUDI - A4 Front - 1.9 TDI quattro - 1896CCM - 115CH - 85KW

VW - PASSAT - 1.9 TDI - 1896CCM - 90CH - 66KW

VW - PASSAT - 1.9 TDI - 1896CCM - 101CH - 74KW

VW - PASSAT - 1.9 TDI - 1896CCM - 110CH - 81KW

VW - PASSAT - 1.9 TDI Syncro/4motion - 1896CCM - 110CH - 81KW

VW - PASSAT - 1.9 TDI - 1896CCM - 115CH - 85KW

VW - PASSAT - 1.9 TDI 4motion - 1896CCM - 115CH - 85KW

VW - PASSAT Variant - 1.9 TDI - 1896CCM - 90CH - 66KW

VW - PASSAT Variant - 1.9 TDI - 1896CCM - 101CH - 74KW

VW - PASSAT Variant - 1.9 TDI - 1896CCM - 110CH - 81KW

VW - PASSAT Variant - 1.9 TDI Syncro/4motion - 1896CCM - 110CH - 81KW

VW - PASSAT Variant - 1.9 TDI - 1896CCM - 115CH - 85KW

VW - PASSAT Variant - 1.9 TDI 4motion - 1896CCM - 115CH - 85KW
