Alternator NEW replacing VALEO SG12B049 / SG12B012 / 2542508 / 2542234

Information:

Voltage 14

Amp 120

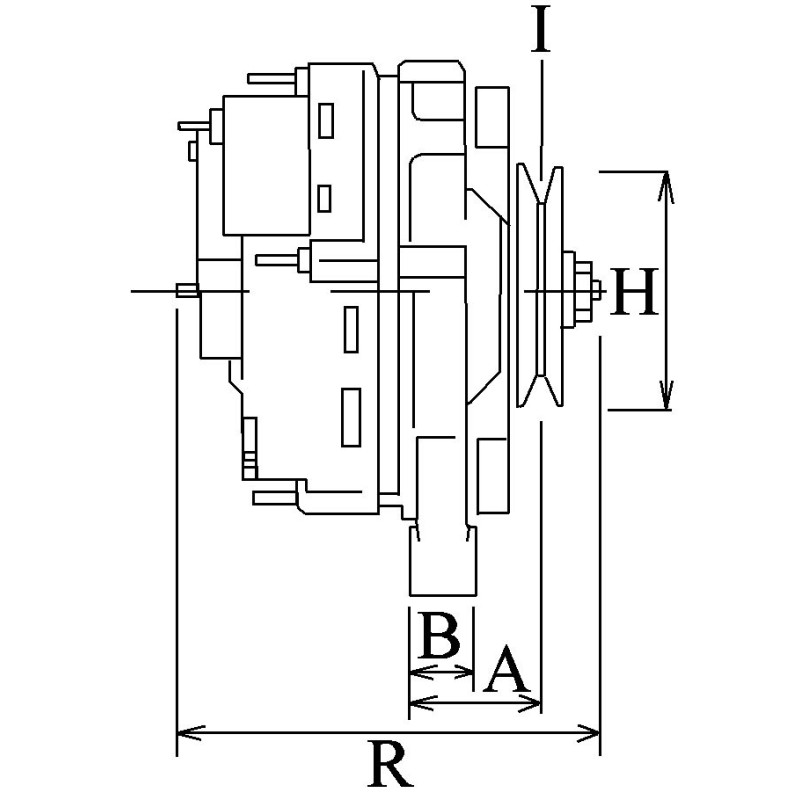

D = Bracket hole 9.50

G = Belt. adj. bracket hole 9.50

B = Width/holder arm 14.10

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 61.00

H = Pulley dia. 55.80

A = Pulley dist. 29.85

Grooves/pulley 5

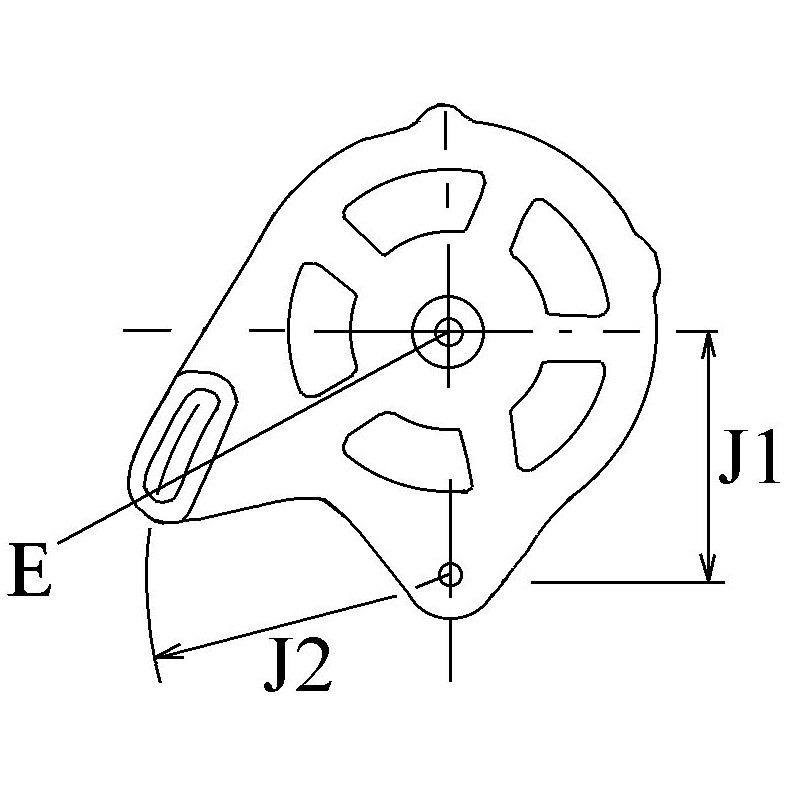

J = Radius 89.50

J = Radius 89.50

Position B + M8

Rotation Cr

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

R = Total length mm 188.00

generic brand

=AUDI 28903031A / 28903029B / 028903031X / 028903031 / 28903031X / 028903031A / 028903029B

28903031 / 28903031AX / 28903029E / 028903031AX / 028903029E

= BOSCH 0986042830 / 0986041870 / 0124515083 / 0124515026

= Cevam 4036

= DELCO REMY DRB1870

= Elstock 28-3705 / 28-4611

= HELLA CA1541IR / 8EL 737 778-001 / 8EL737-778-001

= ISKRA / LETRIKA IA1339

= LUCAS LRA2756 / LRA02756

= MAGNETI MARELLI 944390428300

= SEAT 28903029E / 028903031A / 28903031A / 028903029E

= SKODA 28903031X / 028903031X / 028903029E / 028903031A / 28903031A / 28903031 / 028903031AX

28903031AX / 28903029E / 028903031

= VALEO SG12B049 / SG12B012 / 746808 / 2542496 / 746008 / 2542508 / 439328 / 2542234

= VOLKSWAGEN 028903029E / 28903029B / 28903031X / 028903031AX / 028903031X / 28903031A / 028903031

028903029B / 28903031 / 28903031AX / 028903031A / 28903029E

                                                TWO YEARS WARRANTY

          NO CORE EXCHANGE NEEDED
