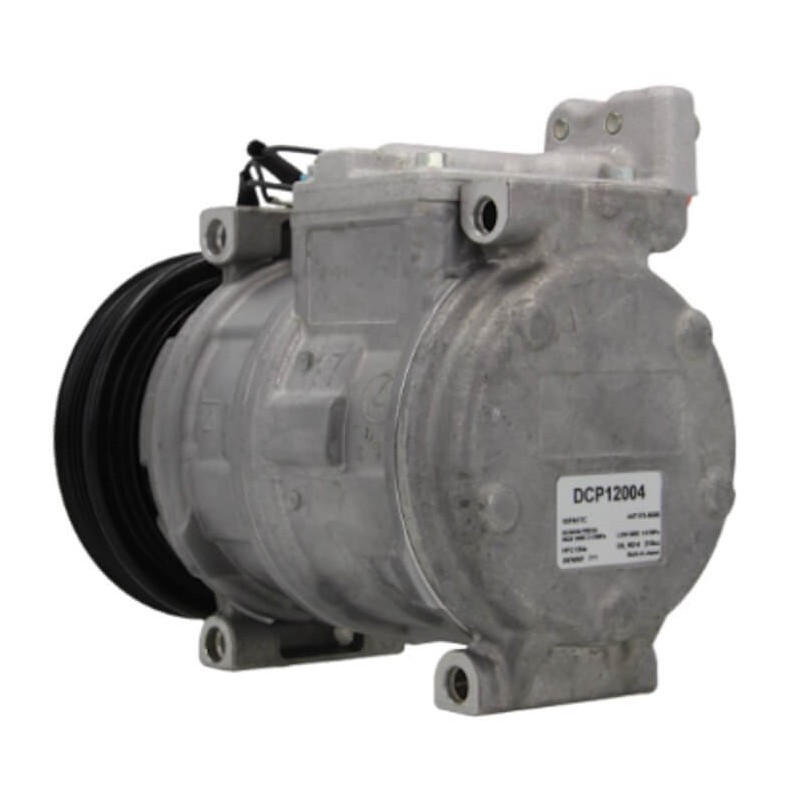

AC compressor DENSO DCP12004 replacing 4471708600

w090505002260

New product

1 Item

Replacing:
4472004820Denso
45028Febi Bilstein
500381465Iveco
50500819RE-EX

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

399,90 € Inc VAT

More info

Brand DENSO

Pulley information
Pulley Grooves4
Pulley OD mm126.00

Unit information
Voltage12
Family type
10PA17C

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil typePAG 46
RefrigerantR134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
RemarksIMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.



NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR

Replacing:

90505002PSH
1201614CTR
241137Cargo
2800K077Van Wezel
32459NRF
32459ANRF
32459GNRF
32459NRFNRF
40440074Autoclima
4471708600Denso
4472004820Denso
45028Febi Bilstein
500381465Iveco
50500819RE-EX
510816Elstock
700510816DRI
7010782PowerMax
70817368Mahle
8634858CEVAM
89699Nissens
8FK351108981Mahle Behr
92030065Frigair
93030065Frigair
AC00819TMI
AC153923Short code
AC154334Short code
AC170882Short code
ACP794000SMahle
ACP915Lucas
CAC61000Casco
CAC61000ASCasco
CAC61000GSCasco
DCP12004Denso
IVAK077AVA Quality Cooling
IVK077AVA Quality Cooling
TSP0155810Delphi

Download

COMPRESSOR WARRANTY FORM

To be added: Garage documents concerning rinsing and replacement of condenser, filter and dryer. Without these documents, the manufacturer will SYSTEMATICALLY refuse the warranty claim. In the event of rejection, a basic examination fee of €85 will be charged.

Download (584.7k)
