Air Conditioning
AC compressor SANDEN replacing TSP0155971 / ACP162000P / 70817073
€219.90

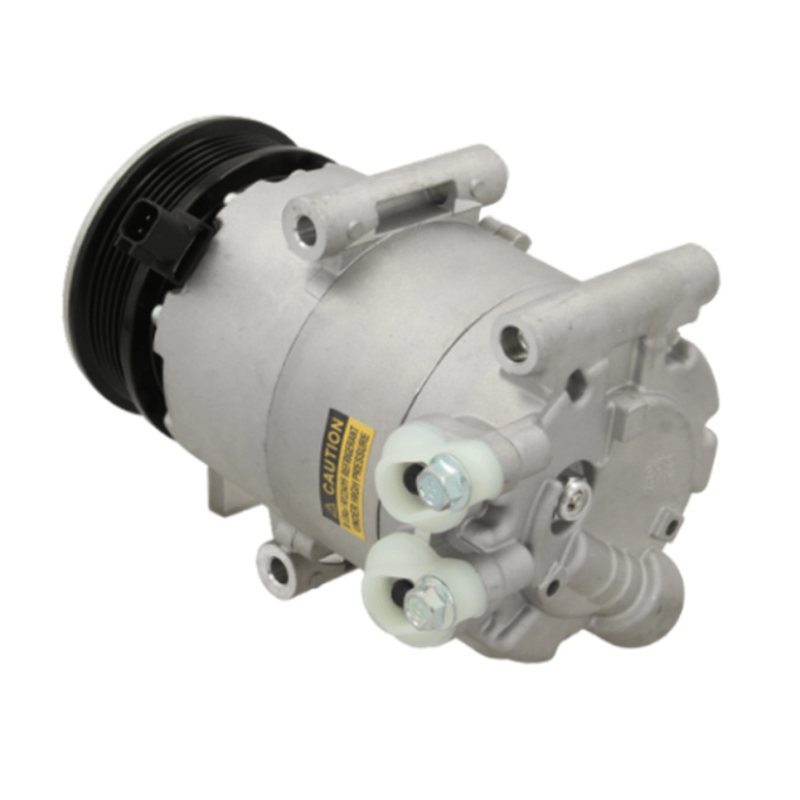

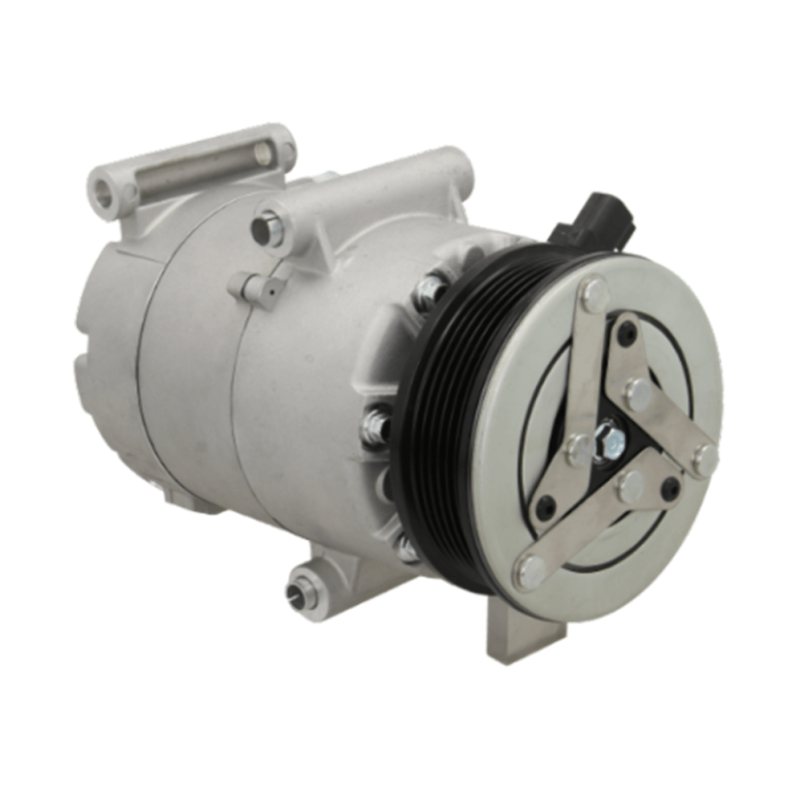

Compresseur de climatisation remplace AV6N19D629AC / ACP310000P pour voiture FORD
w090595009021
Air Conditioning Compressor for cars FORD C-Max / FORD Focus / FORD Focus Estate/Wagon / FORD Galaxy / FORD Galaxy Van / FORD Grand C-Max / FORD Mondeo / FORD Mondeo Estate/Wagon / FORD S-Max
To find the correct replacement part, it is important to compare your part number with those listed in the product description.
Replacing:
|
31291254 |
Volvo |
|---|---|
|
31369800 |
Volvo |
|
690720 |
Valeo |
|
70818057 |
Mahle |
Garage documents regarding flushing and replacement of condenser, filter and dryer.
Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.
Reference
|
090595009 |
PSH |
|---|---|
|
1682592 |
Ford |
|
1706375 |
Ford |
|
1712520 |
Ford |
|
1726982 |
Ford |
|
1785211 |
Ford |
|
1852376 |
Ford |
|
1852379 |
Ford |
|
1986AD1282 |
Bosch |
|
241066 |
HC-Cargo |
|
31291254 |
Volvo |
|
31369800 |
Volvo |
|
690720 |
Valeo |
|
70818057 |
Mahle |
|
ACC11624 |
WAI |
|
ACC11888 |
WAI |
|
ACP310000P |
Mahle |
|
ACP310000S |
Mahle |
|
ACP511 |
Lucas |
|
AV6119D629C2C |
Ford |
|
AV6119D629CA |
Ford |
|
AV6119D629CB |
Ford |
|
AV6119D629CC |
Ford |
|
AV6N19D629AA |
Ford |
|
AV6N19D629AB |
Ford |
|
AV6N19D629AC |
Ford |
|
BG9N19D629AA |
Volvo |
|
K18082 |
Meat & Doria |
Features
Brand +Line
Pulley information |
|
|---|---|
| Pulley Grooves | 6 |
| Pulley OD mm | 110 |
Unit information |
|
|---|---|
| Voltage | 12 |
| Family type | 7VS16ic |
| Connector type | PAD |
Remarks
IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.
Misc. information |
|
|---|---|
| Oil type | PAG 46 |
| Oil capacity | 150ml |
| Refrigerant | R134a |
It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.
Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.
Catalogue information |
|
|---|---|
| Remarks | IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types. |
Garage documents regarding flushing and replacement of condenser, filter and dryer,
Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.
NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER
IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR
Mounting on
|
FORD C-Max |
09-2010 - 05-2019 |
|---|---|
|
FORD C-Max |
09-2010 - 05-2019 |
|
FORD C-Max |
09-2010 - 05-2019 |
|
FORD C-Max |
11-2010 - 05-2019 |
|
FORD C-Max |
01-2011 - 05-2019 |
|
FORD C-Max |
11-2010 - 05-2019 |
|
FORD C-Max |
01-2011 - 05-2019 |
|
FORD C-Max |
01-2012 - 05-2019 |
|
FORD C-Max |
11-2010 - 05-2019 |
|
FORD C-Max |
01-2011 - 05-2019 |
|
FORD C-Max |
12-2012 - 11-2014 |
|
FORD C-Max |
09-2010 - 05-2019 |
|
FORD C-Max |
11-2010 - 05-2019 |
|
FORD Focus |
03-2011 - 01-2020 |
|
FORD Focus |
12-2010 - 01-2020 |
|
FORD Focus |
03-2011 - 01-2020 |
|
FORD Focus |
12-2010 - 05-2014 |
|
FORD Focus |
12-2010 - 05-2014 |
|
FORD Focus |
06-2010 - 01-2020 |
|
FORD Focus |
12-2010 - 11-2017 |
|
FORD Focus |
03-2011 - 01-2020 |
|
FORD Focus |
12-2010 - 05-2014 |
|
FORD Focus |
12-2010 - 05-2014 |
|
FORD Focus |
07-2011 - 11-2017 |
|
FORD Focus |
01-2012 - 01-2020 |
|
FORD Focus |
08-2011 - 01-2020 |
|
FORD Focus |
06-2013 - 01-2020 |
|
FORD Focus |
06-2013 - 01-2020 |
|
FORD Focus |
01-2012 - 01-2020 |
|
FORD Focus |
01-2012 - 11-2017 |
|
FORD Focus |
12-2010 - 01-2020 |
|
FORD Focus |
12-2010 - 05-2014 |
|
FORD Focus |
12-2010 - 05-2014 |
|
FORD Focus Estate/Wagon |
12-2010 - 01-2020 |
|
FORD Focus Estate/Wagon |
12-2010 - 01-2020 |
|
FORD Focus Estate/Wagon |
04-2011 - 01-2020 |
|
FORD Focus Estate/Wagon |
12-2010 - 05-2014 |
|
FORD Focus Estate/Wagon |
12-2010 - 05-2014 |
|
FORD Focus Estate/Wagon |
08-2011 - 01-2020 |
|
FORD Focus Estate/Wagon |
01-2012 - 01-2020 |
|
FORD Focus Estate/Wagon |
06-2013 - 01-2020 |
|
FORD Focus Estate/Wagon |
01-2012 - 01-2020 |
|
FORD Focus Estate/Wagon |
01-2012 - 01-2020 |
|
FORD Galaxy |
10-2010 - 05-2015 |
|
FORD Galaxy Van |
01-2011 - 05-2015 |
|
FORD Grand C-Max |
11-2010 - 05-2019 |
|
FORD Grand C-Max |
11-2010 - 05-2019 |
|
FORD Grand C-Max |
11-2010 - 05-2019 |
|
FORD Grand C-Max |
11-2010 - 05-2019 |
|
FORD Grand C-Max |
11-2010 - 05-2019 |
|
FORD Grand C-Max |
11-2010 - 05-2019 |
|
FORD Grand C-Max |
11-2010 - 11-2014 |
|
FORD Grand C-Max |
11-2010 - 05-2019 |
|
FORD Mondeo |
10-2010 - 08-2014 |
|
FORD Mondeo |
10-2010 - 08-2014 |
|
FORD Mondeo Estate/Wagon |
01-2011 - 08-2014 |
|
FORD Mondeo Estate/Wagon |
10-2010 - 08-2014 |
|
FORD S-Max |
01-2011 - 11-2014 |
|
FORD S-Max |
01-2011 - 11-2014 |
Fiche technique
New
