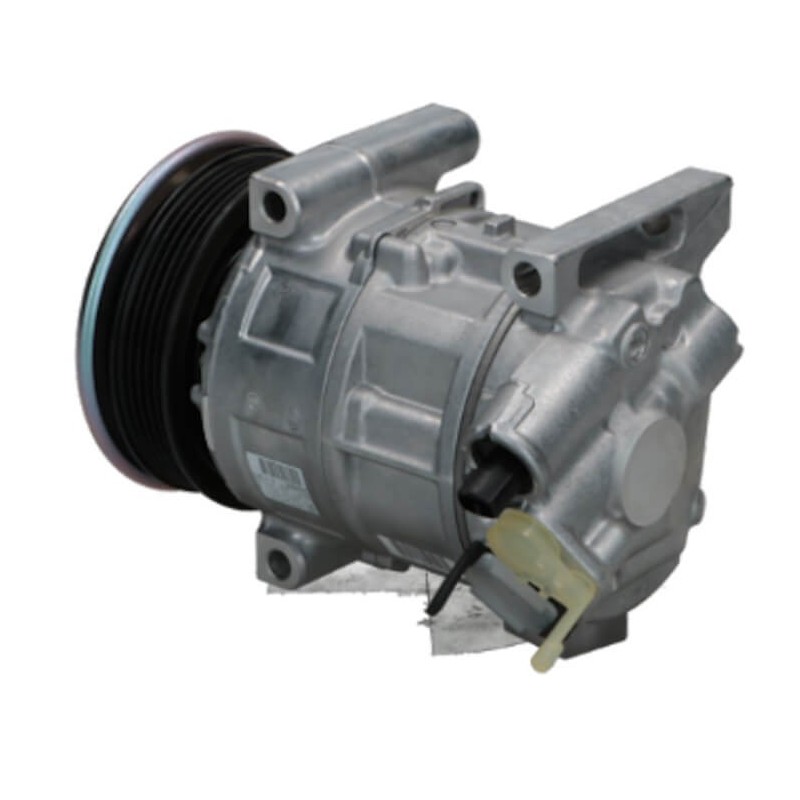

AC compressor DENSO DCP09020 replacing 4471504670

w090505019261

New product

1 Item

Replacing:
70817150Mahle
71724083Lancia
71793072Lancia
71793959Lancia

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

339,90 € Inc VAT

More info

Brand DENSO

Pulley information
Pulley Grooves5
Pulley OD mm110.00

Unit information
Voltage12
Family type5SL12C

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil typePAG 46
RefrigerantR134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
RemarksIMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.



NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR

Replacing:

90505019PSH
100091Airstal
140045Autoair G
147488Autoair G
15211Sidat
1700K394Van Wezel
32545NRF
32545GNRF
4471504670Denso
4471909700Denso
510455Elstock
51794515Lancia
5D3375500Denso
6017K394Schlieckmann
7010766PowerMax
70817150Mahle
71724083Lancia
71793072Lancia
71793959Lancia
71795852Fiat
810404009Lizarte
8629827CEVAM
89202Nissens
8FK351006491Mahle Behr
AC00457TMI
AC00532TMI
AC154433Short code
AC155277Short code
AC171162Short code
AC50182The NewLine
ACP574000PMahle
CAC74018Casco
CAC74018ASCasco
CAC74018GSCasco
CMP1034Wood Auto
DCP09020Denso
EKL34715Euro Klima
FC3980Da Silva
FTAK394AVA Quality Cooling
FTK394AVA Quality Cooling
K15211Hoffer
KFTK394USN
TSP0155951Delphi
V24150027Vemo
WOOCMP1034Wood Auto

Download

COMPRESSOR WARRANTY FORM

To be added: Garage documents concerning rinsing and replacement of condenser, filter and dryer. Without these documents, the manufacturer will SYSTEMATICALLY refuse the warranty claim. In the event of rejection, a basic examination fee of €85 will be charged.

Download (584.7k)
