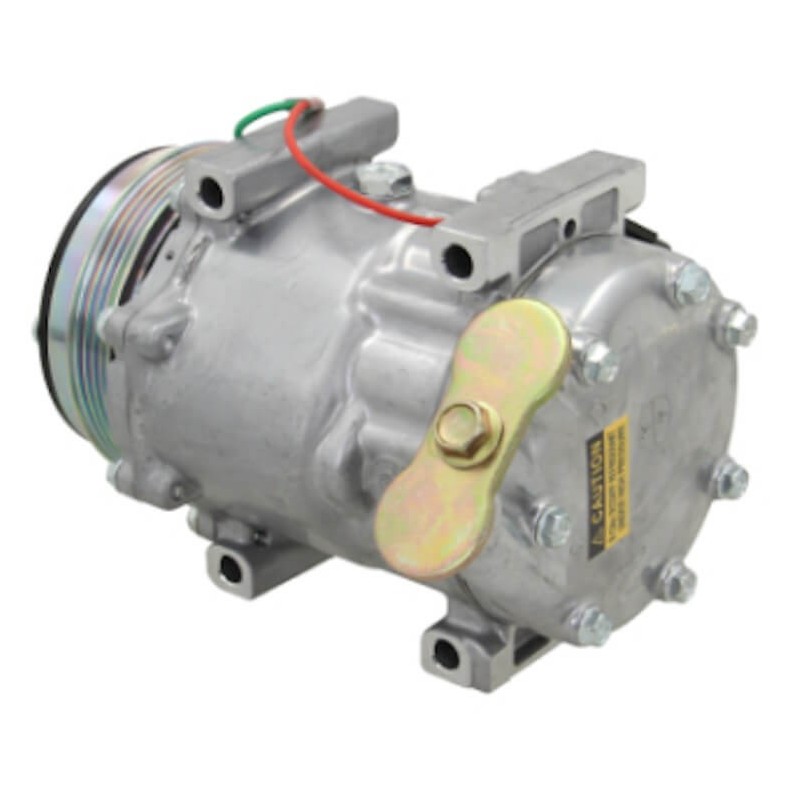

AC compressor replacing 71796000 / 5802219858 / 504005418
| Replacing | |
| 1607139480 | Peugeot |
| 1607139480 | Fiat |
| 1607139780 | Peugeot |
| 1626275080 | Peugeot |
| 504005418 | Fiat |
NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER
IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR
More info
Brand Cargo Bosch
Physical information | ||
|---|---|---|
| F | Dist. between holes 1 | 80.00 |
| F | Dist. between holes 2 | 80.00 |
| G1 | Dist. between mount. bracket/hole | 87.00 |
| G2 | Dist. between mount. bracket/hole 2 | 92.00 |
| L | Position | 45 |
| M | Position 2 | 50 |
| Rear Cover Type | VUD | |
| C | Length mm | 215.00 |
| L | Inlet | 14.80 |
| M | Outlet | 12.00 |
Pulley information | ||
|---|---|---|
| B1 | Pulley Dist. B1 | 45.50 |
| B2 | Pulley Dist. B2 | 35.00 |
| Pulley Grooves | 4 | |
| Pulley type | SP | |
| A | Pulley OD mm | 112.00 |
Unit information | |
|---|---|
| Voltage | 12 |
| Family type | SD7V16 |
Remarks
IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.
Misc. information | |
|---|---|
| Oil type | PAG 46 |
| Oil capacity | 135 ml. |
| Refrigerant | R134a |
| O-ring | w/ |
It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor. Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.
Catalogue information | |
|---|---|
| Remarks | IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types. |
NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER
IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR
| Replacing | |
| 1607139480 | Peugeot |
| 1607139480 | Fiat |
| 1607139780 | Peugeot |
| 1626275080 | Peugeot |
| 504005418 | Fiat |
| 504005418 | Peugeot |
| 504384357 | Peugeot |
| 5802219858 | Fiat |
| 5802219858 | Peugeot |
| 6453SV | Peugeot |
| 71721759 | Peugeot |
| 71721760 | Peugeot |
| 71724259 | Peugeot |
| 71796000 | Peugeot |
