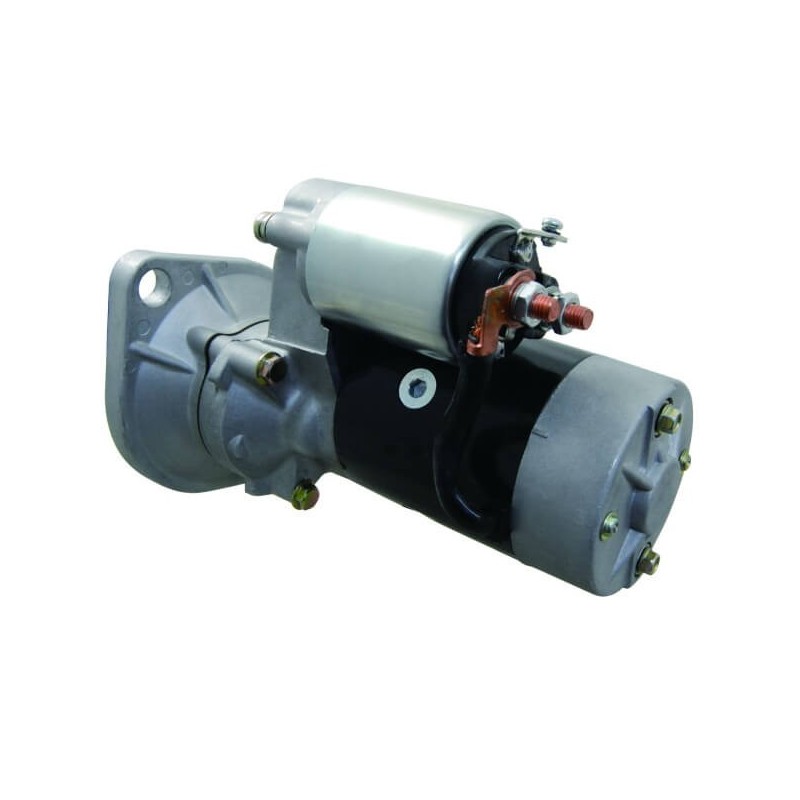

Starter replacing S13-71 / S13-75 / S13-82 / S13-82A
replaing Hitachi S13-71, S13-75, S13-82, S13-82A, S13-82B, S13-82BR, Isuzu 5-81100-207-0, 581100207, 5811002140, 8-51100-214-0, 8941364000, 8941364001, 8944532120
for Hyster forklift (1980-2001)
More info

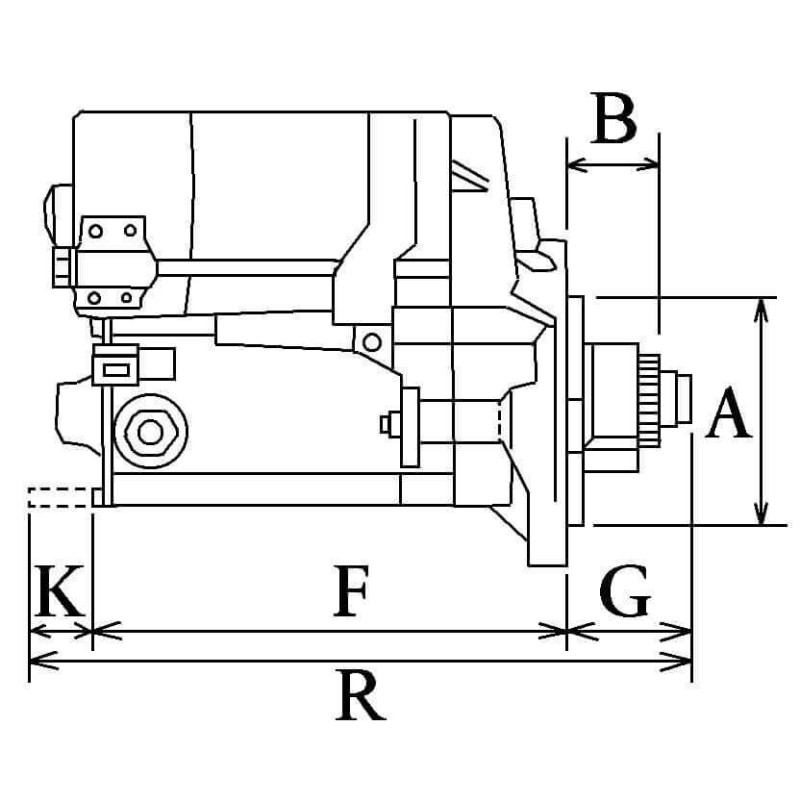

Physical information | ||
|---|---|---|
| H | No./teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 95.00 |
| I | B+ | M8 |
| No./mount. holes | 2 (0) | |
| B | Drive dist. | 21.80 |
| E | Mount. hole 1 mm | 12.90 |
| E | Mount. hole 2 mm | 12.90 |
| F | Dist./back | 202.00 |
| G | Dist./front | 27.15 |
| K | Thread length mm | 21.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 119.00 |
| R | Total length mm | 234.00 |
Catalogue information | ||
|---|---|---|
| Drive type | Steel | |
| Prod. info | BN | |
| Waterproof | No | |
| Oil sealed | No | |
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| kW | 2.0 | |
generic brand
