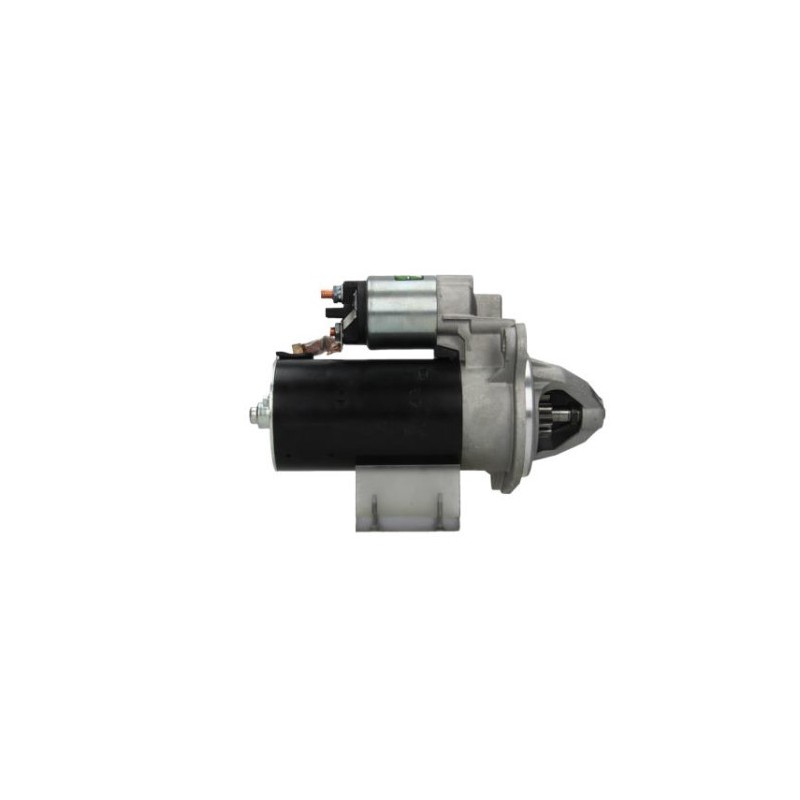

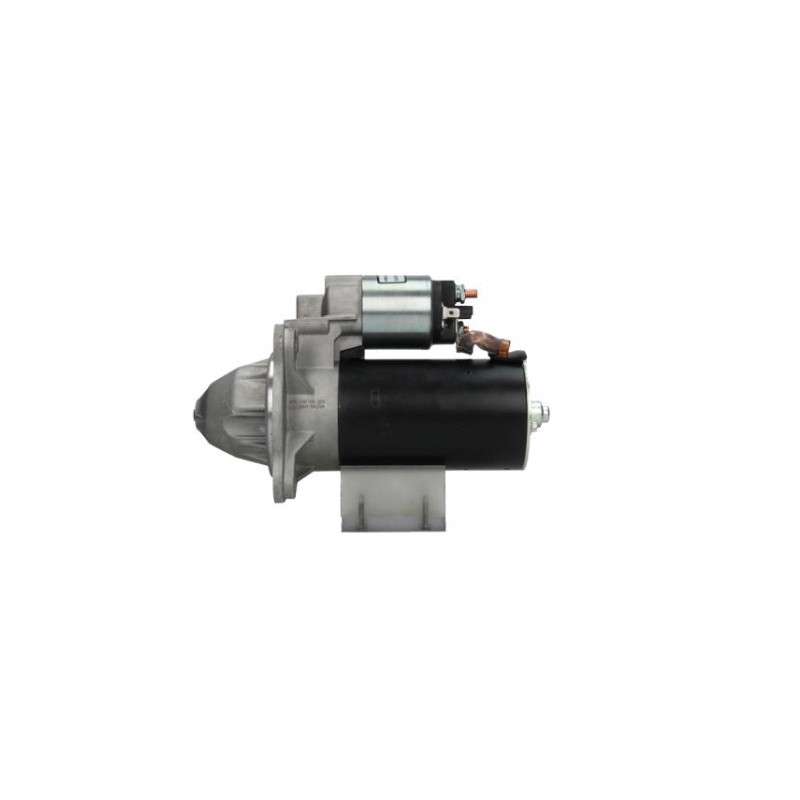

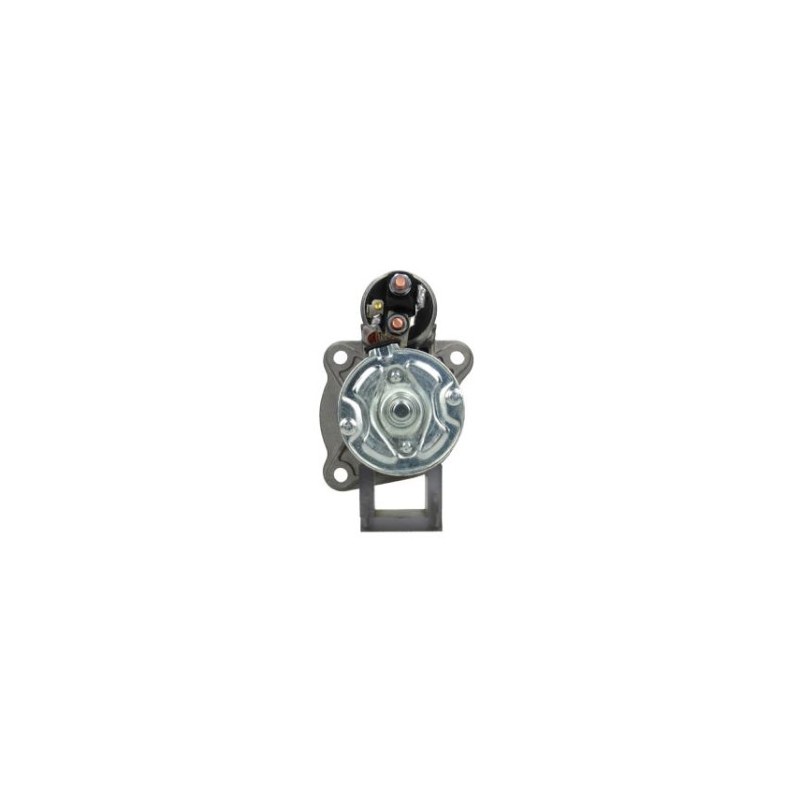

Starter BOSCH 0001109027 / 0001109046
Starter BOSCH 0001109027 / 0001109046
for Truck gazel 2.4 Diesel
NO CORE EXCHANG NEEDED
More info
Electrical information | |
|---|---|
| Voltage | 12 |
| Kw | 2.0 |

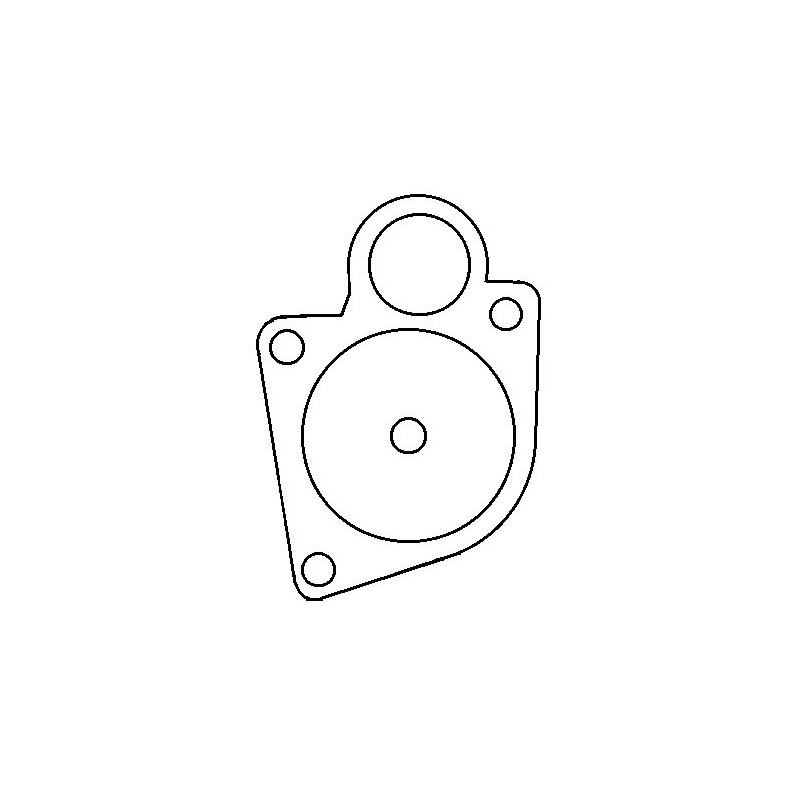

Physical information | ||
|---|---|---|
| H | No./teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 88.88 |
| I | B+ | M8 |
| B | Drive dist. | 23.00 |
| E | Mount. holes | 10.50 |
| E | Mount. hole 2 | 10.50 |
| E | Mount. hole 3 | 10.50 |
| F | Dist./back | 172.00 |
| G | Dist./front | 60.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 90.00 |
| O | Dist. 2 | 127.00 |
| O | Dist. 3 | 90.00 |
| R | Total length mm | 246.00 |
Replacing | |
|---|---|
| 0001109027 | BOSCH |
| 0001109046 | BOSCH |
