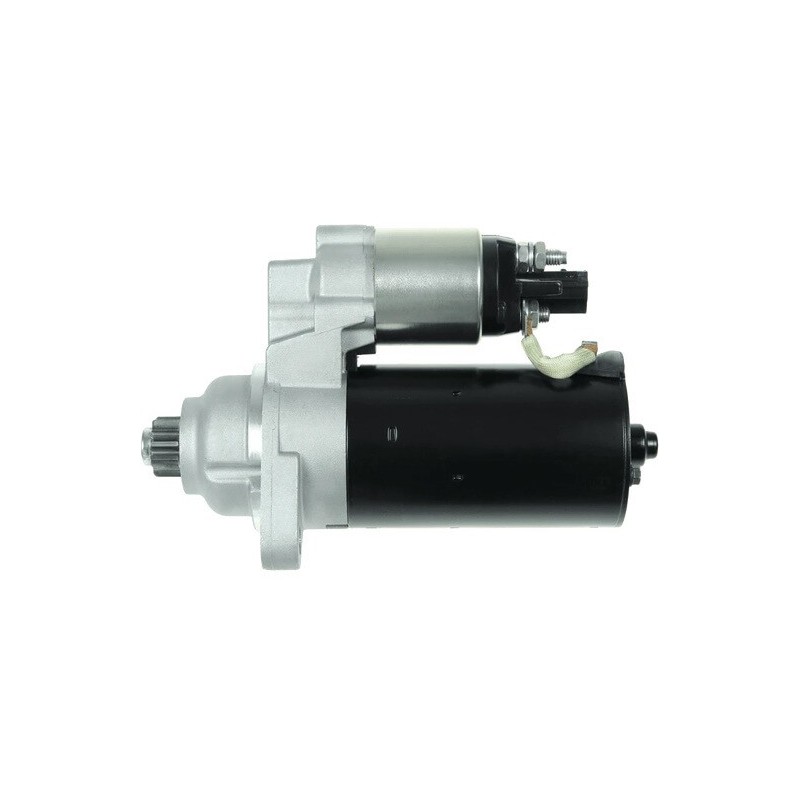

Starter replacing 0001123018 / 0001123019 / 02T911024 / CS1393
Starter replacing :
AUDI / VOLKSWAGEN 02T-911-024, 02T-911-024X, BOSCH 0001123018, 0001123019, 0986020300
DRT0300 / LRS02198
NO CORE EXCHANGE NEEDED
More info
Specs Electricals | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 1.7 | |
Specs Physique | ||
|---|---|---|
| H | Nbr of teeth | 10 |
| P | Rotation | COUNTER CLOCKWISE |
| N | Gear type | Gr |
| A | Mount flange | 76.20 |
| I | B+ | M8 |
| B | Drive distance | 52.00 |
| E | Mounting holes | 12.60 |
| E | Mounting holes 2 | 12.60 |
| F | Distance / Back | 163.00 |
| G | Distance / Front | 57.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 111.00 |
| R | Total length mm | 233.00 |
generic brand
Mounted on :
| Brand | Model | Tipo | Year |
| SEAT | Cordoba 1.4 TDi | [BNM] | 05.2005-11.2009 |
| SEAT | Cordoba 1.9 SDi | [ASY] | 09.2002-11.2009 |
| SEAT | Ibiza 1.4 TDi | [BNM] | 05.2005-11.2009 |
| SEAT | Ibiza 1.9 SDi | [ASY] | 02.2002-12.2005 |
| SKODA | Fabia 1.4 TDi | [BNM] | 10.2005-03.2008 |
| SKODA | Fabia 1.4 TDi | [BNM] | 10.2005-12.2007 |
| SKODA | Fabia 1.4 TDi | [BNM] | 02.2007-03.2010 |
| SKODA | Fabia 1.4 TDi | [BNM] | 10.2007-03.2010 |
| SKODA | Fabia 1.9 SDi | [ASY] | 11.1999-12.2007 |
| SKODA | Fabia 1.9 SDi | [ASY] | 12.1999-03.2008 |
| SKODA | Fabia 1.9 SDi | [ASY] | 04.2000-12.2007 |
| SKODA | Fabia 1.9 SDi | [ASY] | 07.2001-12.2007 |
| SKODA | Roomster 1.4 TDi | [BNM] | 07.2006-03.2010 |
| SKODA | Roomster 1.4 TDi | [BNM] | 03.2007-03.2010 |
| VW | Golf V 2.0 SDi | [BDK] | 01.2004-11.2008 |
| VW | Polo 1.4 TDi | [BNM] | 04.2005-11.2009 |
| VW | Polo 1.4 TDi | [BWB] | 04.2005-11.2009 |
| VW | Polo 1.9 SDi | [ASY] | 10.2001-11.2009 |
