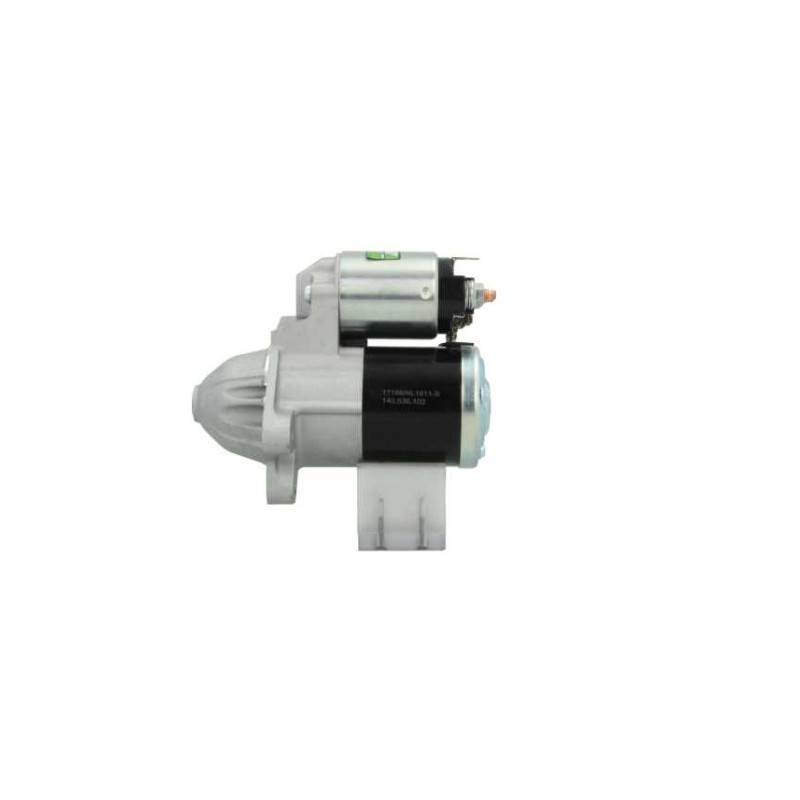

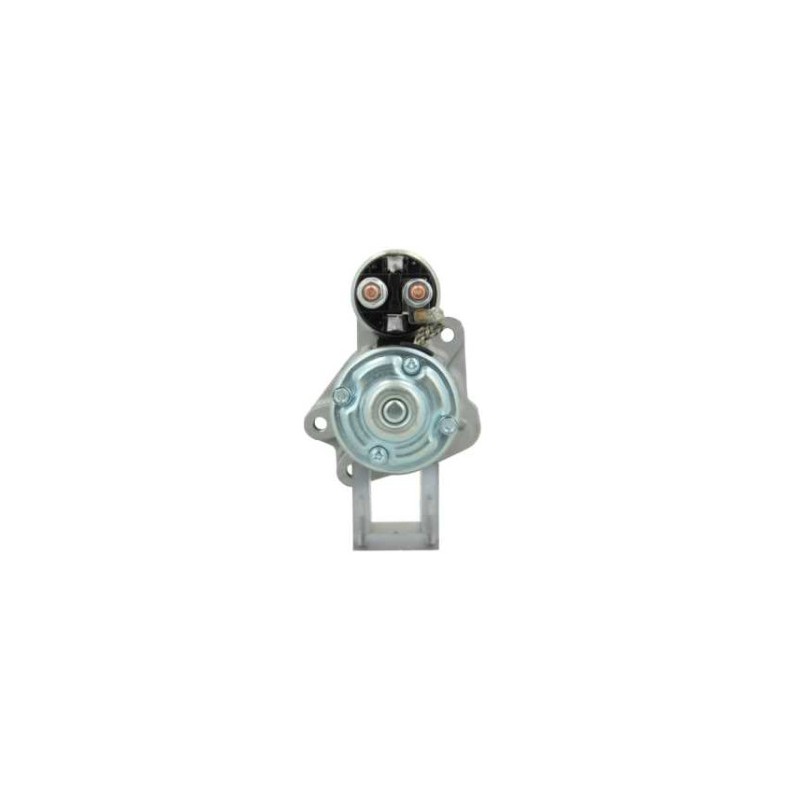

Starter replacing M000T33971 / M0T33971 / ZYF2-18-400
Starter replacing :
MITSUBISHI M000T33971 / M0T33971 / M000T32771 / M0T32771
MAZDA ZYF2-18-400
DRS0483 / LRS02574 / 0986025290 / STR5228sa
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.0 | |
Physical Information | ||
|---|---|---|
| A | Mount flange | 74.00 |
| E | Mounting holes | M10x1.25 |
| E | Mounting holes 2 | M10x1.25 |
| E | Mounting holes 3 | M10x1.25 |
| B | Drive distance | 15.00 |
| F | Distance / Back | 125.00 |
| G | Distance / Front | 48.00 |
| H | Nbr of teeth | 10 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 36.70 |
| O | Distance 2 | 106.00 |
| O | Distance 3 | 99.50 |
| P | Rotation | CW |
| R | Total length mm | 173.00 |
Replacing | |
|---|---|
| M000T33971 | MITSUBISHI |
| M0T33971 | MITSUBISHI |
| ZYF2-18-400 | MAZDA |
generic brand
Mounted on :
MAZDA
| Model | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 1.5 | Unleaded | 2007 10 | - | ZY-VE | 76 | 103 | Hayon | 1498 | 4 | ||
| 2 | 1.3 | Unleaded | 2007 10 | - | ZJ-VE | 63 | 86 | Hayon | 1349 | 4 | ||
| 2 | 1.5 | Unleaded | 2011 06 | - | ZY05 | 75 | 102 | Hayon | MZR | 1498 | 4 | |
| 2 | 1.5 | Unleaded | 2007 10 | - | ZY-DE | 76 | 103 | Hayon | 1498 | 4 | ||
| 2 | 1.5 | Unleaded | 2011 06 | - | ZY66 | 75 | 102 | Hayon | MZR | 1498 | 4 | |
| 2 | 1.3 | Électrique/essence | 2011 05 | 2014 11 | ZJ46 | VTi | 55 | 75 | Hayon | BiFuel | 1349 | 4 |
| 2 | 1.3 | Électrique/essence | 2011 05 | 2014 11 | ZJ46 | 62 | 84 | Hayon | BiFuel | 1349 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
