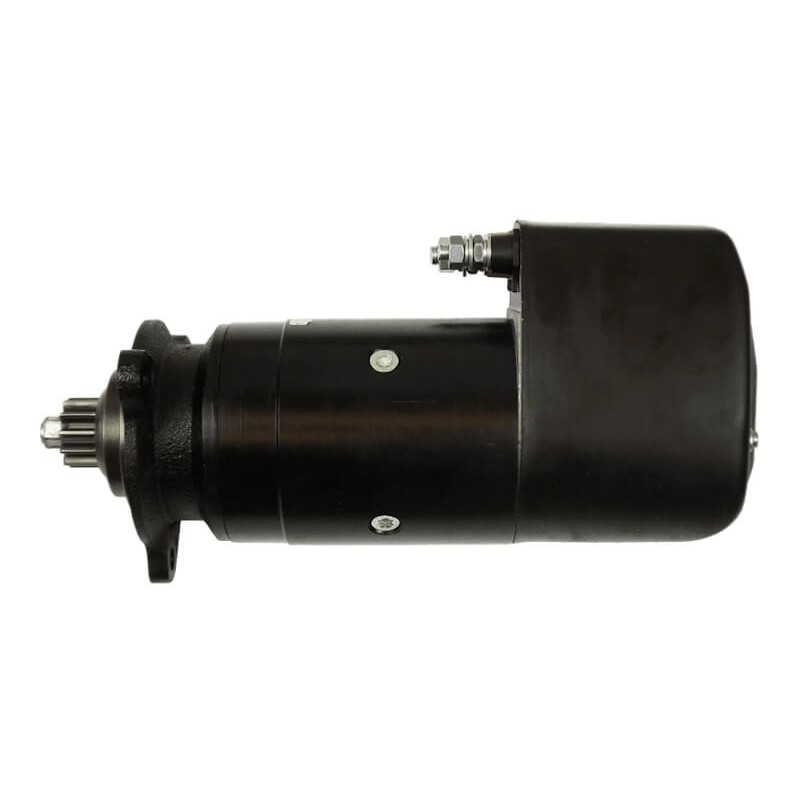

Starter replacing BOSCH 0001417046 / 0001417045 / 0001416048

w110212

New product

2 Items

 Starter for IVECO, SCANIA

= BOSCH 0001417046 / 0001417045 / 0001416048 / 0001415015 / 0001415014

0001411005 / 0001410115 / 0001410098

= Elmot R23.26 / R22.16 / R22.14 / 6260000 / 0160000 / 0140000

= ISKRA AZK5172 / 11.139.012

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

219,90 € Inc VAT

Add to wishlist

More info

Information:

Voltage 24

KW 6.6

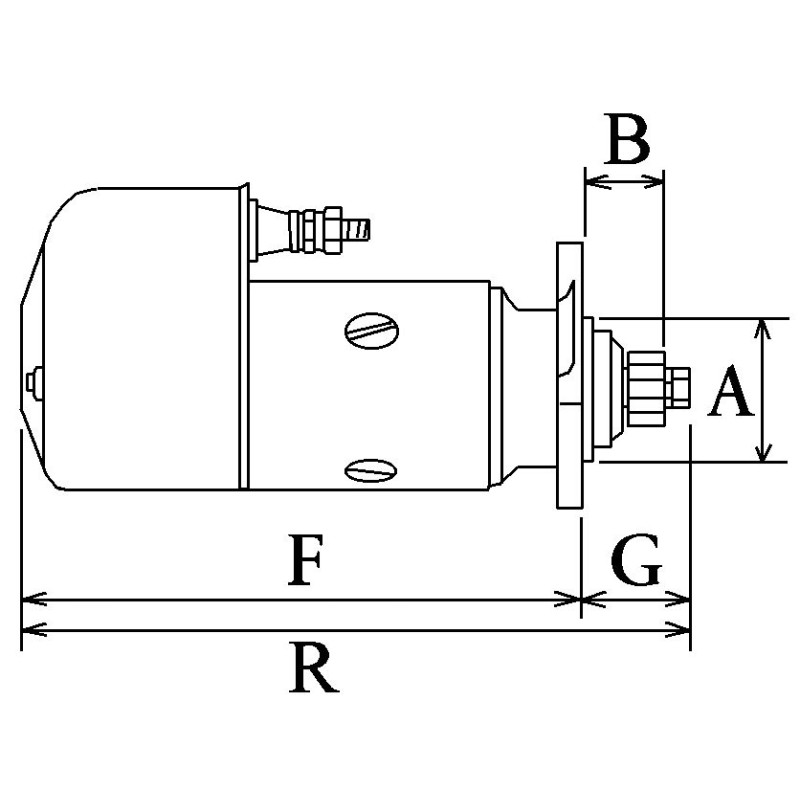

A = Mount flange 92.00

B = Drive distance 47.65

F = Distance / Back 338.00

G = Distance / Front 64.00

H = Nbr of teeth 11

B+ M10

B- M10

Gear type Dd

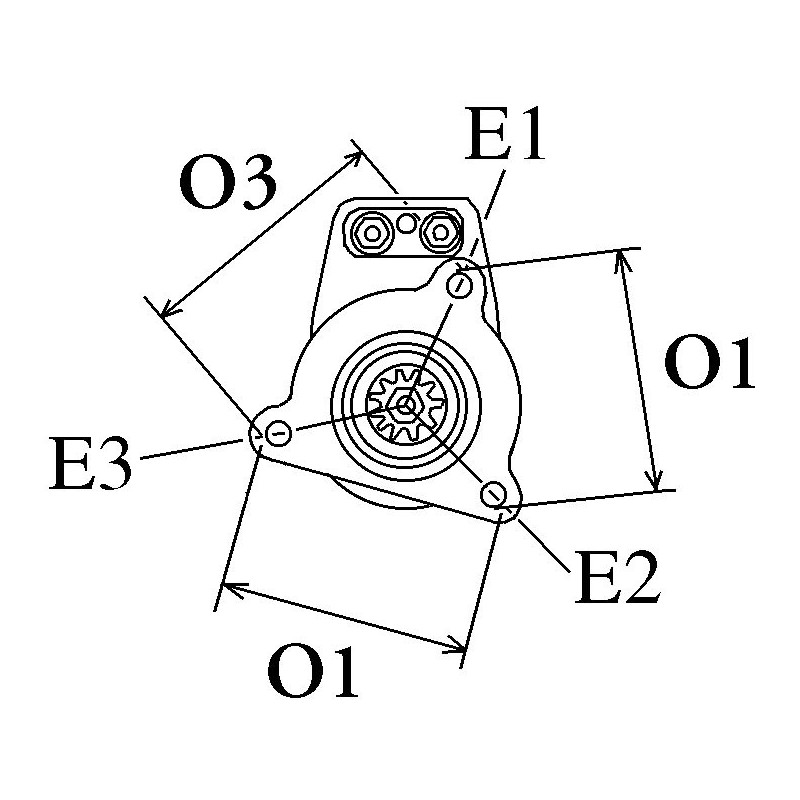

O = Distance 1 126.00

O = Distance 2 126.00

O = Distance 3 126.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

generic brand

replacing

= BOSCH 0001417046 / 0001417045 / 0001416048 / 0001415015 / 0001415014

0001411005 / 0001410115 / 0001410098

= Elmot R23.26 / R22.16 / R22.14 / 6260000 / 0160000 / 0140000

= ISKRA AZK5172 / 11.139.012

= LUCAS LRS0033 / LRS01819

= MAGNETON 9125460 / 9125130

= DELCO REMY 19024042 / 19024078

= SCANIA 309220 / 349578

= AVF im312 / im361 / im548 / im607 / im645

Fits

BrandModelTypYearBrandModelTypYear
IVECO113 E/360 11.0[DSC11.13]01.1990-05.2000SCANIA124 G/360 11.7[DSC12.02]05.1996-02.2002
IVECO113 E/360 11.0[DSC11.18]01.1990-05.2000SCANIA93 M/220 8.5[DSC9.10]12.1991-08.1997
IVECO113 E/360 11.0[DSC11.23]01.1990-05.2000SCANIA143 M/420 14.2[DSC14.08]01.1991-12.1996
IVECO113 H/360 11.0[DSC11.13]05.1988-05.2000SCANIA114 G/340 10.6[DC11.03]03.1998-09.2004
IVECO113 H/360 11.0[DSC11.18]01.1990-05.2000SCANIA94 G/220 9.0[DSC9.11]08.1996-08.2002
IVECO113 H/360 11.0[DSC11.23]01.1990-05.2000SCANIA143 M/450 14.2[DSC14.03]05.1988-12.1996
IVECO113 M/360 11.0[DSC11.13]05.1988-05.2000SCANIA93 M/230 8.5[DS9.06]03.1988-01.1993
IVECO113 M/360 11.0[DSC11.18]01.1990-05.2000SCANIA114 G/340 11.0[DC11.01]03.1996-02.2002
IVECO113 M/360 11.0[DSC11.23]01.1990-05.2000SCANIA124 G/400 11.7[DSC12.01]05.1996-01.2000
IVECO113 M/400 11.0[DTC11.01]01.1992-05.1997SCANIA143 M/450 14.2[DSC14.10]01.1990-12.1996
IVECO113 M/400 11.0[DTC11.02]01.1994-05.1997SCANIA143 M/470 14.2[DSC14.04]03.1988-12.1996
IVECO114 C/340 11.0[DC11.01]03.1993-09.2004SCANIA93 M/250 8.5[DS9.05]03.1988-01.1991
IVECO114 C/340 11.0[DC11.03]02.1996-09.2004SCANIA93 M/250 8.5[DSC9.07]12.1991-08.1997
IVECO114 C/340 11.0[DSC11.79]05.1996-05.1999SCANIA114 G/340 11.0[DSC11.79]05.1996-05.1999
IVECO114 C/380 10.6[DC11.02]03.1996-02.2002SCANIA113 E/360 11.0[DSC11.13]01.1990-05.2000
IVECO114 G/340 10.6[DC11.01]03.1996-09.2004SCANIA143 M/500 14.2[DSC14.09]01.1991-12.1996
IVECO114 G/340 10.6[DC11.03]03.1998-09.2004SCANIA124 L/360 11.7[DSC12.02]09.1996-02.2002
IVECO114 G/340 11.0[DC11.01]03.1996-02.2002SCANIA94 G/260 9.0[DSC9.12]08.1996-10.2001
IVECO114 G/340 11.0[DSC11.79]05.1996-05.1999SCANIA113 E/360 11.0[DSC11.18]01.1990-05.2000
IVECO114 G/380 10.6[DC11.02]03.1996-02.2002SCANIA93 M/280 8.5[DSC9.02]03.1988-12.1996
IVECOP/PA 330-30 13.8[8210.22X.069]10.1987-12.1995SCANIA113 E/360 11.0[DSC11.23]01.1990-05.2000
IVECOP/PA 330-30 13.8[8210.22X.069]10.1987-12.1995SCANIA114 G/380 10.6[DC11.02]03.1996-02.2002
IVECOP/PA 330-30 13.8[8210.22X.235]06.1984-12.1992SCANIA93 M/280 8.5[DSC9.08]01.1990-08.1997
IVECOP/PA 330-30 13.8[8210.22X.235]06.1984-12.1992SCANIA124 L/400 11.7[DSC12.01]09.1996-01.2000
IVECOP/PA 330-30 13.8[8210.22X.523]06.1984-12.1992SCANIA143 M/500 14.2[DSC14.16]12.1994-12.1996
IVECOP/PA 330-30 13.8[8210.22X.523]06.1984-12.1992SCANIA94 /D260 9.0[DC9.02]02.2000-09.2004
IVECOP/PA 330-30 13.8[8210.22X.575]10.1987-12.1995SCANIA94 G/310 9.0[DSC9.13]08.1996-08.2002
IVECOP/PA 330-30 13.8[8210.22X.575]10.1987-12.1995SCANIA144 C/460 14.2[DSC14.15]04.1996-08.2001
SCANIA114 L/340 11.0[DSC11.79]05.1996-05.1999SCANIA113 H/360 11.0[DSC11.13]05.1988-05.2000
SCANIA143 E/450 14.2[DSC14.03]01.1990-12.1996SCANIA113 H/360 11.0[DSC11.18]01.1990-05.2000
SCANIA94 D/230 9.0[DC9.01]08.1999-09.2004SCANIA144 C/530 14.2[DSC14.13]04.1996-08.2001
SCANIA143 E/450 14.2[DSC14.10]01.1990-12.1996SCANIA94 G/310 9.0[DSC9.15]08.1996-08.2002
SCANIA114 C/340 11.0[DC11.01]03.1993-09.2004SCANIA113 H/360 11.0[DSC11.23]01.1990-05.2000
SCANIA143 E/500 14.2[DSC14.09]01.1991-12.1996SCANIA94 C/260 9.0[DSC9.12]12.1996-10.2001
SCANIA94 D/230 9.0[DC9.04]08.1999-09.2004SCANIA124 L/420 11.7[DSC12.05]09.1997-02.2002
SCANIA114 L/380 10.6[DC11.02]03.1996-02.2002SCANIA114 L/340 10.6[DC11.01]03.1996-02.2002
SCANIA114 C/340 11.0[DC11.03]02.1996-09.2004SCANIA144 G/460 14.2[DSC14.15]04.1996-08.2001
SCANIA143 E/500 14.2[DSC14.16]12.1994-12.1996SCANIA94 L/310 9.0[DSC9.13]08.1996-08.2002
SCANIA143 H/400 14.2[DSC14.06]05.1988-12.1996SCANIA113 M/360 11.0[DSC11.13]05.1988-05.2000
SCANIA260 9.0[DC9.02]01/09/04SCANIA124 L/440 11.7[DT12.08]09.2000-09.2004
SCANIA94 D/260 9.0[DC9.02]02.2000-09.2004SCANIA94 C/300 9.0[DC9.03]02.2000-09.2004
SCANIA114 C/340 11.0[DSC11.79]05.1996-05.1999SCANIA144 G/530 14.2[DSC14.13]04.1996-08.2001
SCANIA300 9.0[DC9.03]01/09/04SCANIA113 M/360 11.0[DSC11.18]01.1990-05.2000
SCANIA143 H/420 14.2[DSC14.08]01.1991-12.1996SCANIA94 C/310 9.0[DSC9.13]08.1996-08.2002
SCANIA94 D/260 9.0[DSC9.12]08.1996-10.2001SCANIA113 M/360 11.0[DSC11.23]01.1990-05.2000
SCANIA114 C/380 10.6[DC11.02]03.1996-02.2002SCANIA114 L/340 10.6[DC11.02]03.1996-02.2002
SCANIA143 H/450 14.2[DSC14.03]05.1988-12.1996SCANIA94 L/310 9.0[DSC9.15]08.1996-08.2002
SCANIA93 H/220 8.5[DSC9.10]12.1991-08.1997SCANIA124 L/470 11.7[DT12.02]01.2001-09.2004
SCANIA124 C/360 11.7[DSC12.02]09.1996-02.2002SCANIA113 M/400 11.0[DTC11.01]01.1992-05.1997
SCANIA143 H/450 14.2[DSC14.06]05.1988-12.1996SCANIA144 L/460 14.2[DSC14.15]11.1995-08.2001
SCANIA93 H/250 8.5[DS9.05]03.1988-01.1991SCANIA114 L/340 10.6[DC11.03]05.1996-09.2004
SCANIA94 D/300 9.0[DC9.03]02.2000-09.2004SCANIA94 C/310 9.0[DSC9.15]08.1996-08.2002
SCANIA143 H/450 14.2[DSC14.10]01.1990-12.1996SCANIA230 9.0[DC9.01]01/09/04
SCANIA124 C/400 11.7[DSC12.01]09.1996-01.2000SCANIA113 M/400 11.0[DTC11.02]01.1994-05.1997
SCANIA143 H/470 14.2[DSC14.04]03.1988-12.1996SCANIA144 L/530 14.2[DSC14.13]11.1995-08.2001
SCANIA94 D/310 9.0[DSC9.13]12.1996-08.2002SCANIA94 D/220 9.0[DSC9.11]08.1996-08.2002
SCANIA93 H/250 8.5[DSC9.07]12.1991-08.1997SCANIA143 E/420 14.2[DSC14.08]01.1991-12.1996
SCANIAR 142 E 14.2[DS14.06]05.1980-03.1988SCANIAR 142 H 14.2[DSC14.01]05.1980-03.1988
SCANIA93 H/280 8.5[DSC9.02]12.1991-12.1996SCANIA93 H/280 8.5[DSC9.08]12.1991-08.1997
SCANIAR 142 H 14.2[DS14.06]05.1980-03.1988SCANIAR 142 H 14.2[DSC14.02]05.1980-03.1988
SCANIA114 G/340 10.6[DC11.01]03.1996-09.2004SCANIA124 C/420 11.7[DSC12.05]09.1995-02.2002
SCANIA143 H/500 14.2[DSC14.09]01.1991-12.1996SCANIA94 D/310 9.0[DSC9.15]12.1996-08.2002
SCANIAR 142 M 14.2[DS14.06]05.1980-03.1988
SCANIA143 H/500 14.2[DSC14.16]12.1994-12.1996
SCANIA93 M/210 8.5[DS9.08]03.1988-01.1993
