Starter replacing 128000-7600 / 128000-7601 / 128000-7602
1280007603 |
Denso |
---|---|
1280007604 |
Denso |
1909016 |
PIC |
19789 |
Lester |
24625223 |
Dixie |
338034094 |
DRI |
420760 |
Volvo |
451354 |
Elstock |
6040627 |
Sando |
811519113 |
PSH |
8192262 |
Volvo |
Features

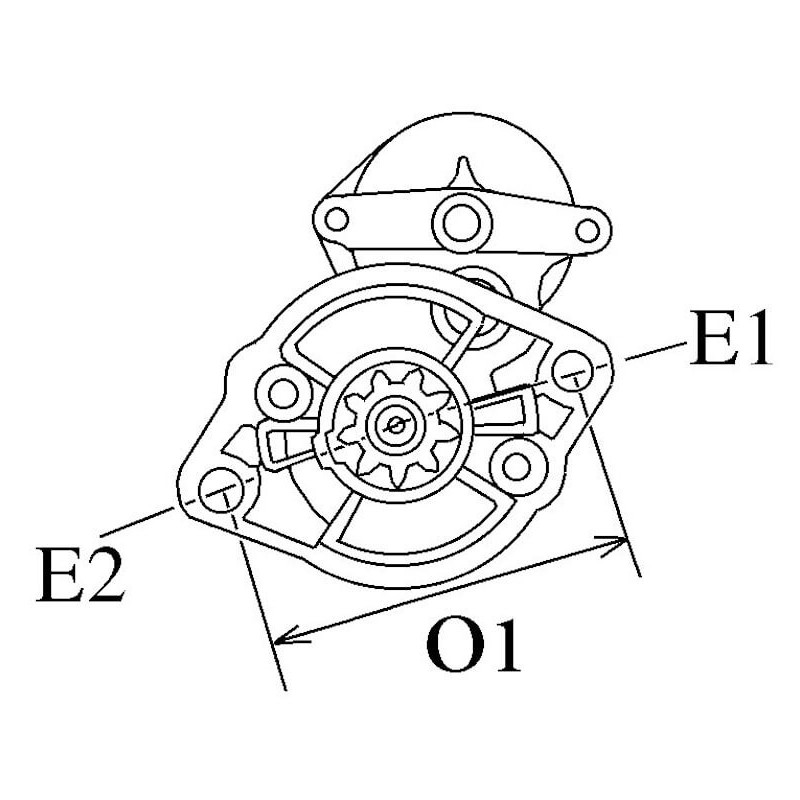

Physical information | ||
---|---|---|
A | Mount. flange | 89.00 |
B | Drive dist. | 48.00 |
E | Mount. hole 3 mm | 11.50 |
E | Mount. hole 2 mm | 11.50 |
E | Mount. hole 1 mm | 11.50 |
F | Dist./back | 162.00 |
G | Dist./front | 72.00 |
H | No./teeth | 9,11 |
I | B+ | M10 |
L | Terminal 50 | M5 |
N | Gear type | GR |
O | Dist. 2 | 90.00 |
O | Dist. 3 | 127.00 |
O | Dist. mm | 90.00 |
P | Rotation | CW |
No./mount. holes | 3 (0) |
Electrical information | ||
---|---|---|
Voltage | 24 | |
kW | 4.0 |
generic brand
replacing
017600 |
Andre Niermann |
---|---|
020271 |
Da Silva |
101443 |
DAS |
114047 |
Cargo |
1280007600 |
Denso |
1280007600SEL |
+line |
1280007601 |
Denso |
1280007602 |
Denso |
1280007603 |
Denso |
1280007604 |
Denso |
1909016 |
PIC |
19789 |
Lester |
24625223 |
Dixie |
338034094 |
DRI |
420760 |
Volvo |
451354 |
Elstock |
6040627 |
Sando |
811519113 |
PSH |
8192262 |
Volvo |
8EA726139021 |
Hella |
A10980 |
ATL |
CS1443 |
HC-Parts |
CST40627 |
Casco |
IR9719 |
Protech |
LRS02153 |
Lucas |
LRS2153 |
Lucas |
S135540 |
Short code |
S166233 |
Short code |
S166234 |
Short code |
S8600 |
Dixie |
SBO2077 |
Quasar |
ST02533 |
TMI |
STR22055AN |
Wood Auto |
TNS017 |
TWA |
WOOSTR22055AN |
Wood Auto |
