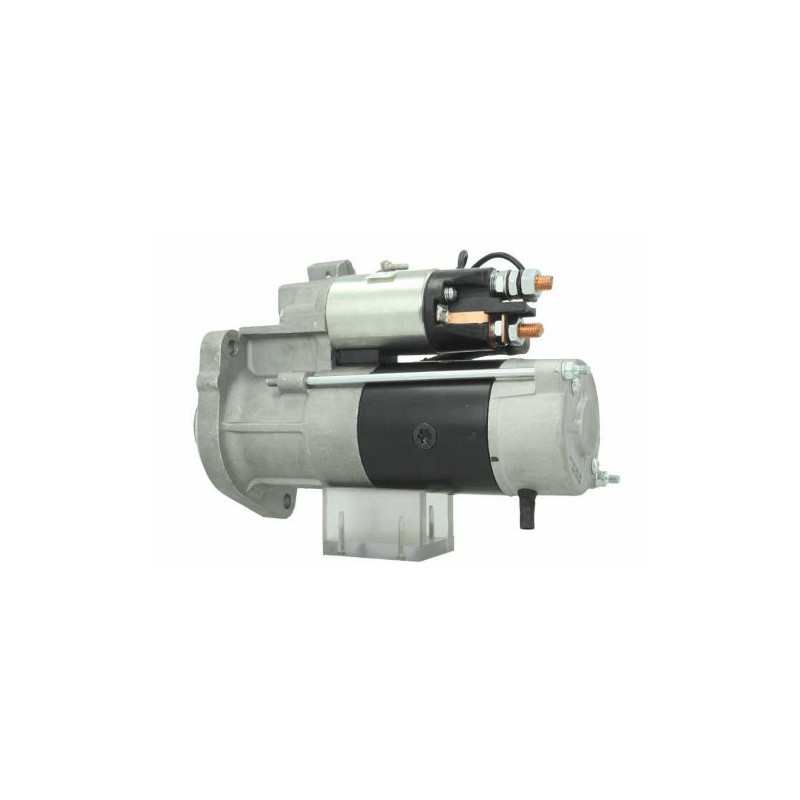

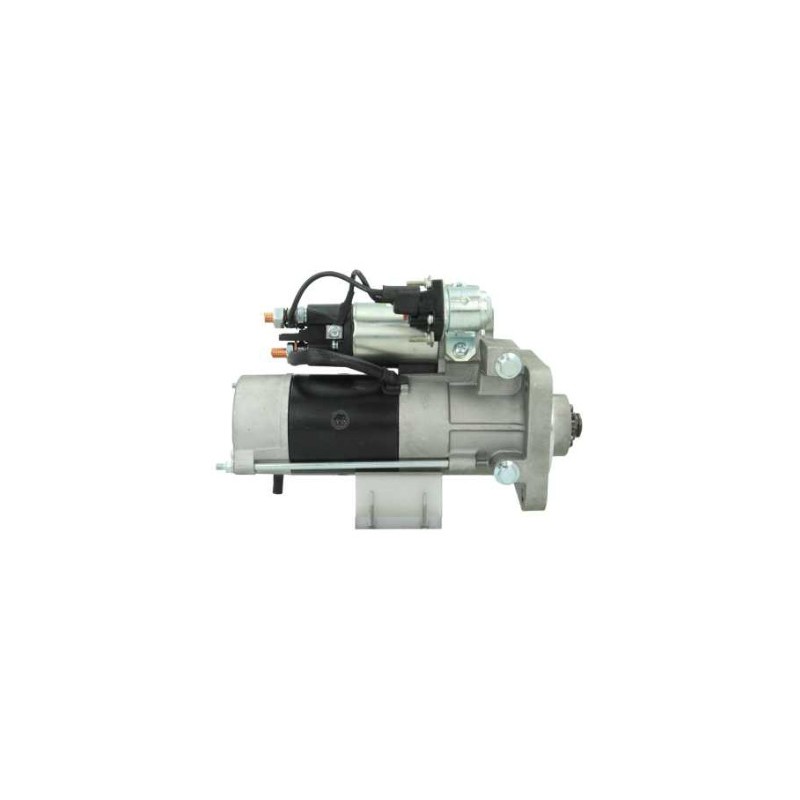

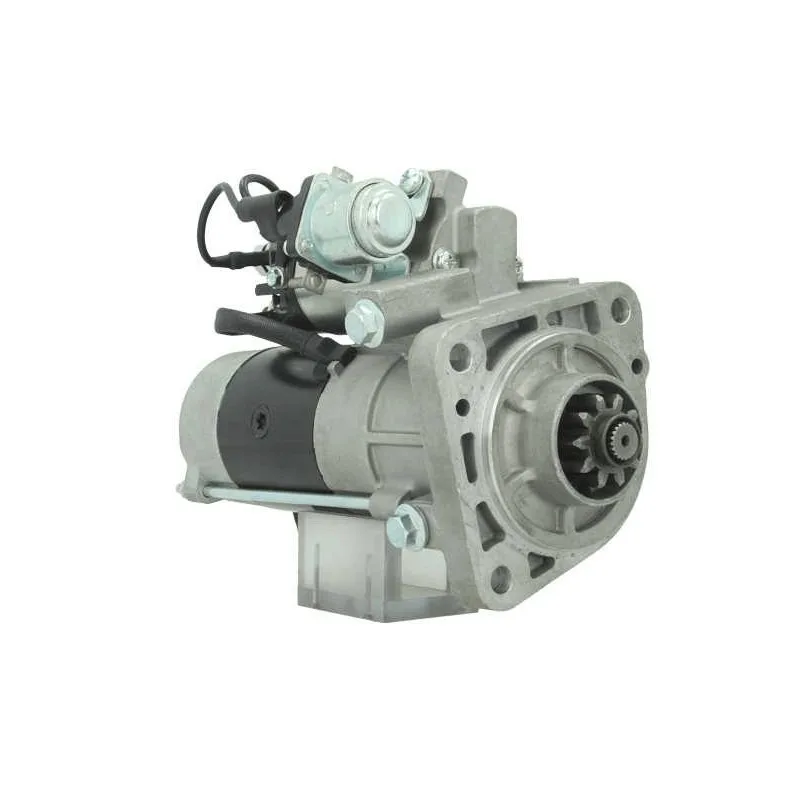

Starter replacing MITSUBISHI M008T62471 / M8T62471 / M8T62471AM
Starter replacing MITSUBISHI M008T62471 / M8T62471 / M8T62471AM
= LRS02528 / DRS0392
= KHD 01182195 / 01182758 / 1183209
= VOLVO 20938971 / 20997663 / 85000750
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |
| KW | 5.0 | |
Physical Information | ||
|---|---|---|
| A | Mount flange | 89.00 |
| E | Mounting holes | 11.00 |
| E | Mounting holes 2 | 11.00 |
| E | Mounting holes 3 | 11.00 |
| B | Drive distance | 26.50 |
| F | Distance / Back | 255.00 |
| G | Distance / Front | 34.00 |
| H | Nbr of teeth | 10 |
| I | B+ | M10 |
| N | Gear type | Gr |
| O | Distance mm | 127.00 |
| O | Distance 2 | 89.80 |
| O | Distance 3 | 89.80 |
| P | Rotation | CW |
| R | Total length mm | 295.00 |
Replacing | |
|---|---|
| 01182195 | KHD |
| 01182758 | KHD |
| 01183209 | DEUTZ-FAHR |
| 01183209 | KHD |
| 1182195 | KHD |
| 1182758 | KHD |
| 1183209 | KHD |
| 20938971 | VOLVO |
| 20997663 | VOLVO |
| 7420997664 | RENAULT |
| 7485003033 | RENAULT |
| 85000750 | VOLVO |
| M008T62471 | MITSUBISHI |
| M8T62471 | MITSUBISHI |
| M8T62471AM | MITSUBISHI |
generic brand
Mounted on :
| Brand | Model | Typ | Year |
| DENNIS | 240 7.1 | [D7E240] | 01/05/03 |
| DENNIS | 240 MS 7.1 | [D7E240] | 01/10/07 |
| DENNIS | 240 RS 7.1 | [D7E240] | 01/10/07 |
| RENAULT | Lander 320.18 7.2 | 01/02/09 | |
| VOLVO | FE 240-22 7.1 | [D7E240] | 01/05/06 |
| VOLVO | FE 240-26 7.1 | [D7E240] | 01/05/06 |
| VOLVO | FE 240-26 7.1 | [D7E240] | 05.2006-12.2006 |
| VOLVO | FE 240-26 7.1 | [D7E240] | 01/05/12 |
| VOLVO | FLH 240-12 7.1 | [D7E240] | 01/05/13 |
| VOLVO | FLH 240-12 7.1 | [D7F240] | 01/05/13 |
| VOLVO | FLH 240-18 7.1 | [D7E240] | 01/05/13 |
| VOLVO | FE 260-18 7.1 | [D7F260] | 01/05/12 |
| VOLVO | FLH 240-18 7.1 | [D7F240] | 01/05/13 |
| VOLVO | FLH 260-12 7.1 | [D7F260] | 01/05/13 |
| VOLVO | FE 260-26 7.1 | [D7F260] | 01/05/12 |
| VOLVO | FLH 260-18 7.1 | [D7F260] | 01/05/13 |
| VOLVO | FE 280-18 7.1 | [D7E280] | 01/05/12 |
| VOLVO | FLH 280-12 7.1 | [D7E280] | 01/05/13 |
| VOLVO | FLH 280-18 7.1 | [D7E280] | 01/05/13 |
| VOLVO | FE 280-26 7.1 | [D7E280] | 01/05/12 |
| VOLVO | FLH 290-12 7.1 | [D7F290] | 01/05/13 |
| VOLVO | FLH 290-18 7.1 | [D7F290] | 01/05/13 |
| VOLVO | FE 300-18 7.1 | [D7F300] | 01/05/12 |
| VOLVO | FLL 240-14 7.1 | [D7E240] | 01/05/13 |
| VOLVO | FL 240-12 7.1 | [D7E240] | 01/05/06 |
| VOLVO | FLL 240-14 7.1 | [D7F240] | 01/05/13 |
| VOLVO | FE 300-26 7.1 | [D7F300] | 01/05/12 |
| VOLVO | FLL 240-15 7.1 | [D7E240] | 01/05/13 |
| VOLVO | FL 240-14 7.1 | [D7E240] | 01/06/09 |
| VOLVO | FLL 240-15 7.1 | [D7F240] | 01/05/13 |
| VOLVO | FE 320-18 7.1 | [D7E320] | 01/05/12 |
| VOLVO | FLL 240-16 7.1 | [D7E240] | 01/05/13 |
| VOLVO | FL 240-15 7.1 | [D7E240] | 01/05/06 |
| VOLVO | FLL 240-16 7.1 | [D7F240] | 01/05/13 |
| VOLVO | FL 240-16 7.1 | [D7E240] | 01/05/06 |
| VOLVO | FLL 260-14 7.1 | [D7F260] | 01/05/13 |
| VOLVO | FE 320-26 7.1 | [D7E320] | 01/05/12 |
| VOLVO | FL 240-16 7.1 | [D7E240] | 01/06/09 |
| VOLVO | FLL 260-15 7.1 | [D7F260] | 01/05/13 |
| VOLVO | FLL 260-16 7.1 | [D7F260] | 01/05/13 |
| VOLVO | FL 240-18 7.1 | [D7E240] | 01/05/06 |
| VOLVO | FLL 280-14 7.1 | [D7E280] | 01/05/13 |
| VOLVO | FE 340-18 7.1 | [D7F340] | 01/05/12 |
| VOLVO | FLL 280-16 7.1 | [D7E280] | 01/05/13 |
| VOLVO | FLL 290-14 7.1 | [D7F290] | 01/05/13 |
| VOLVO | FE 340-26 7.1 | [D7F340] | 01/05/12 |
| VOLVO | FLL 290-16 7.1 | [D7F290] | 01/05/13 |
| VOLVO | FE 240-18 7.1 | [D7E240] | 01/05/06 |
| VOLVO | FE 240-18 7.1 | [D7E240] | 01/05/12 |
| VOLVO | FE 240-18 7.1 | [D7F240] | 01/05/12 |
