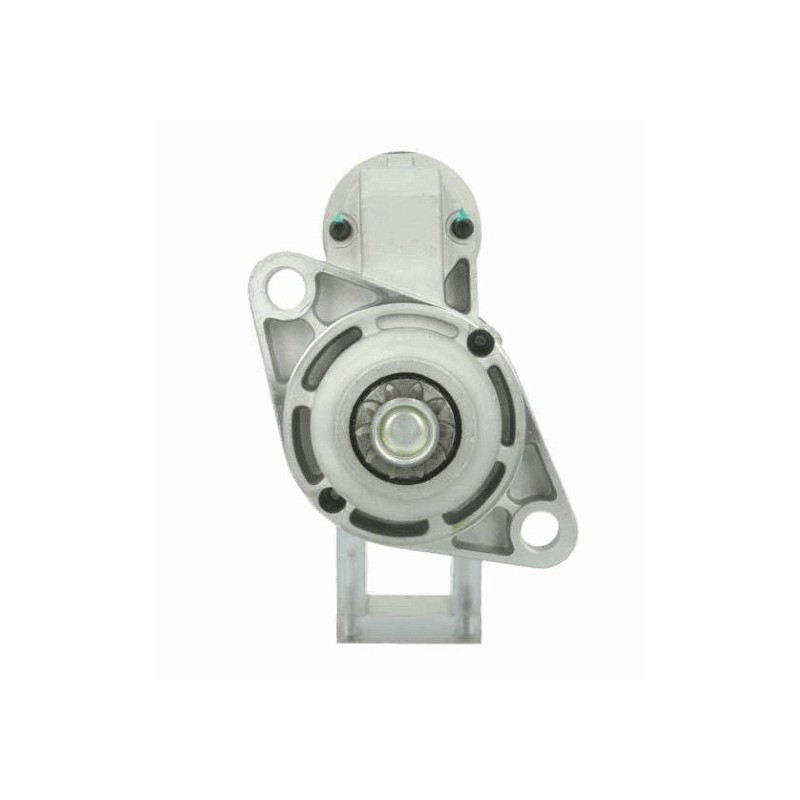

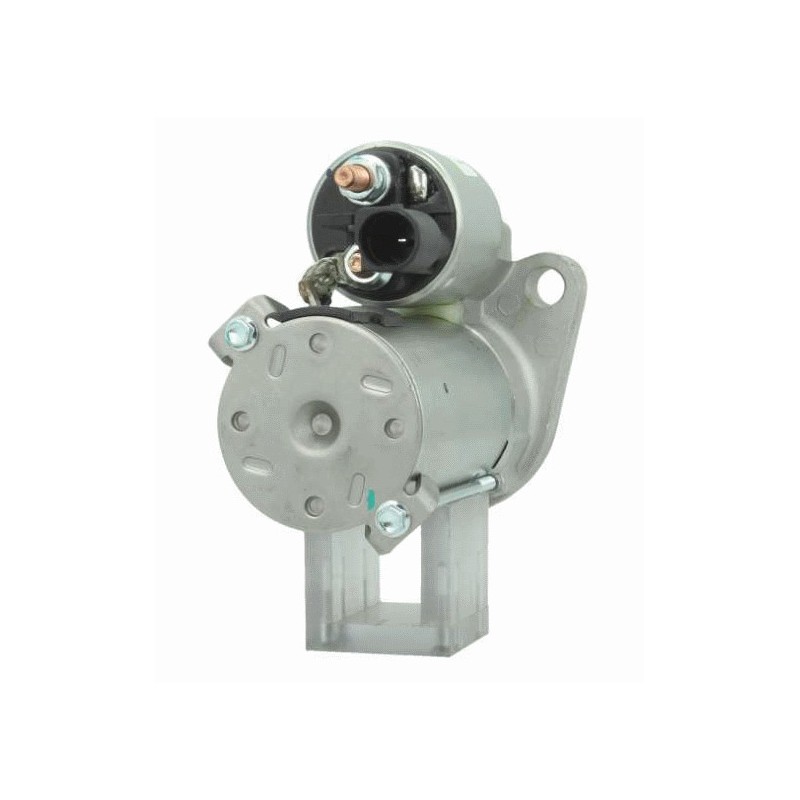

Starter replacing BOSCH 0001120409 / 0001120408
Starter for Audi, SEAT, SKODA, VW
replacing : 02T-911-023M, 02T-911-023MX, 02T-911-023T, 02T-911-023TX
D6GS13, D6GS13M
NO CORE EXCHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 1.0 | |
Physical Information | ||
|---|---|---|
| H | Nbr of teeth | 10 |
| P | Rotation | COUNTER CLOCKWISE |
| N | Gear type | Gr |
| A | Mount flange | 76.00 |
| I | B+ | M8 |
| B | Drive distance | 52.00 |
| E | Mounting holes | 12.50 |
| E | Mounting holes 2 | 12.50 |
| F | Distance / Back | 142.00 |
| G | Distance / Front | 57.50 |
| M | Mount. bracket | Non |
| O | Distance mm | 111.00 |
| R | Total length mm | 213.00 |
generic brand
Replacing | |
|---|---|
| 0001120408 | BOSCH |
| 0001120409 | BOSCH |
| 02T911023M | VOLKSWAGEN |
| 02T911023T | VOLKSWAGEN |
| 02T911024Q | VOLKSWAGEN |
| CS1324 | HC-PARTS |
| D6GS13 | VALEO |
| D6GS13M | VALEO |
| 0001120408 | BOSCH |
| 0001120409 | BOSCH |
| 0001121420 | BOSCH |
| 02T911023M | VW |
| 02T911023MX | VW |
| 02T911023T | VW |
| 02T911024Q | VW |
| 0986020220 | BOSCH |
| 11020220 | EuroTec |
| 120460 | PIC |
| 12065 | EAI |
| 202151 | VALEO |
| 253294 | Elstock |
| 300566102 | PSH |
| 32735 | Lester |
| 32735N | WAI |
| 32735R | WAI |
| 438173 | VALEO |
| 442012 | VALEO |
| 458215 | VALEO |
| 4772SP | Spidan |
| 738166001 | HELLA |
| 8020220F | Friesen |
| 920220 | EDR |
| A20220 | ATL |
| CS1324 | HC |
| D6GS | VALEO |
| D6GS13 | VALEO |
| drt0220 | DELCO REMY |
| HCS1324 | HC |
| KTR601132204 | KTR |
| LRS01735 | LUCAS |
| STM580 | Rolling Components |
| STR0065sa | Electrolog |
| STR1401sa | Electrolog |
fits:
| Brand | Model | Tipo | Year |
| AUDI | A3 1.6 E-Power | [CCSA] | 01.2011-08.2012 |
| AUDI | A3 1.6 E-Power | [CMXA] | 01.2011-08.2012 |
| AUDI | A3 1.6 Sportback E-Power | [CCSA] | 01.2011-03.2013 |
| AUDI | A3 1.6 Sportback E-Power | [CMXA] | 01.2011-03.2013 |
| SEAT | Altea 1.6 Multifuel | [BSE] | 01/10/06 |
| SEAT | Altea 1.6 Multifuel | [BSF] | 01/10/06 |
| SEAT | Altea 1.6 Multifuel | [CCSA] | 01/10/06 |
| SEAT | Altea XL 1.6 | [CCSA] | 01/10/06 |
| SEAT | Leon 1.6 | [BSE] | 01/01/05 |
| SEAT | Leon 1.6 | [BSF] | 01/01/05 |
| SEAT | Leon 1.6 | [CHGA] | 01.2009-12.2012 |
| SEAT | Leon 1.6 MultiFuel | [CMXA] | 01/11/10 |
| SEAT | Leon 2.0 FSi | [BLR] | 01/01/05 |
| SEAT | Leon 2.0 FSi | [BLY] | 01/01/05 |
| SEAT | Leon 2.0 FSi | [BVY] | 01/01/05 |
| SEAT | Leon 2.0 FSi | [BVZ] | 01/01/05 |
| SKODA | Octavia 1.6 | [BGU] | 01/06/04 |
| SKODA | Octavia 1.6 | [BSE] | 01/06/04 |
| SKODA | Octavia 1.6 | [BSF] | 01/06/04 |
| SKODA | Octavia 1.6 | [CCSA] | 01/06/04 |
| SKODA | Octavia 1.6 | [CCSA] | 01/01/08 |
| SKODA | Octavia 1.6 | [CMXA] | 01/06/04 |
| SKODA | Octavia 1.6 | [CMXA] | 01/01/08 |
| SKODA | Octavia 1.6 LPG | [CHGA] | 01/08/09 |
| VW | Golf Plus 1.6 | [BSE] | 01/05/05 |
| VW | Golf Plus 1.6 | [BSF] | 01/05/05 |
| VW | Golf Plus 1.6 | [CCSA] | 01/11/07 |
| VW | Golf Plus 1.6 | [CMXA] | 01/05/05 |
| VW | Golf Plus 1.6 BiFuel | [CHGA] | 01/05/09 |
| VW | Golf Plus 1.6 Multifuel | [CCSA] | 01/11/07 |
| VW | Golf Plus 1.6 Multifuel | [CMXA] | 01/11/07 |
| VW | Golf V 1.6 | [BGU] | 06.2007-07.2009 |
| VW | Golf V 1.6 Multijet | [CCSA] | 01/10/07 |
| VW | Golf VI 1.6 | [BSE] | 10.2008-11.2012 |
| VW | Golf VI 1.6 | [BSF] | 10.2008-11.2012 |
| VW | Golf VI 1.6 | [CCSA] | 10.2008-11.2012 |
| VW | Golf VI 1.6 | [CMXA] | 10.2008-11.2012 |
| VW | Golf VI 1.6 | [CMXA] | 07.2009-07.2013 |
| VW | Golf VI 1.6 Multijet | [CMXA] | 07.2009-07.2013 |
| VW | Golf VI 1.6 Multijet | [CMXA] | 05.2010-11.2012 |
| VW | Jetta 1.6 | [BSE] | 01/10/05 |
| VW | Jetta 1.6 | [BSF] | 01/10/05 |
| VW | Jetta 1.6 | [CCSA] | 01/10/05 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
