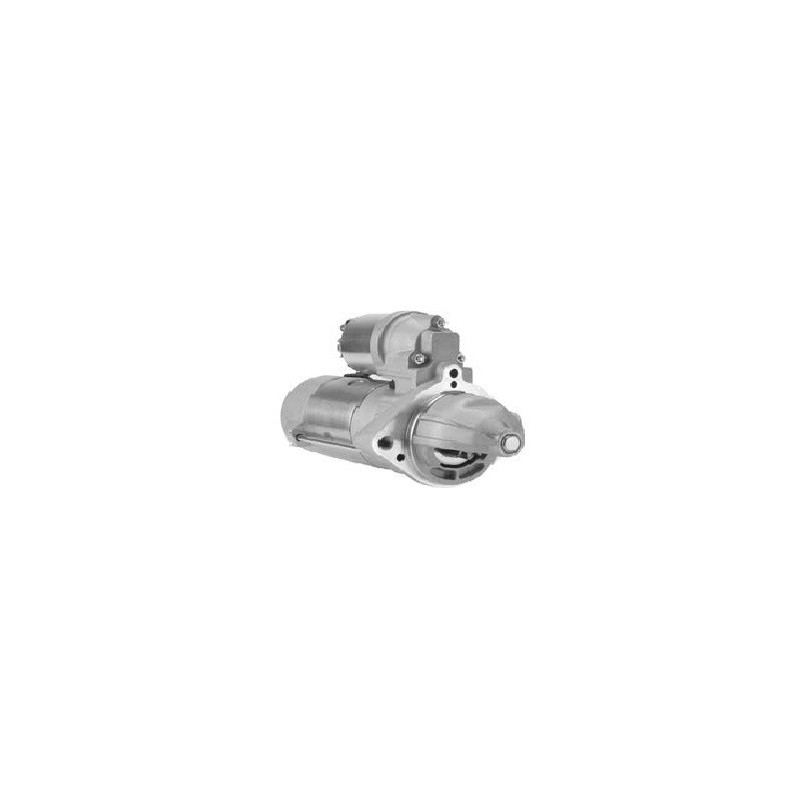

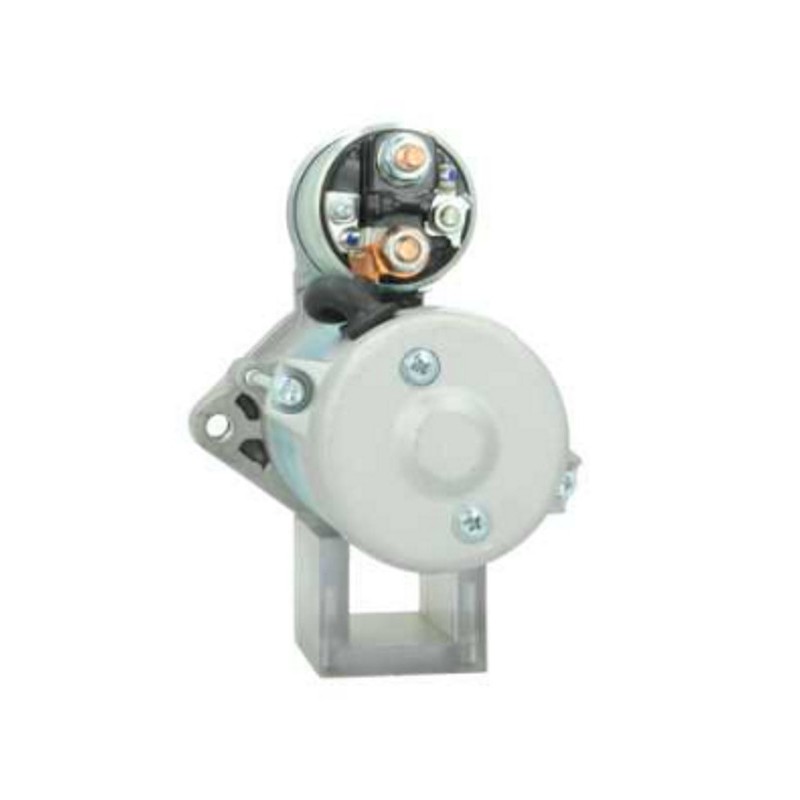

Starter replacing BMW 12417788680 / 7788680
Starter for BMW
= BMW 12417788680 / 12417788682 / 7788680
= DENSO 7788680 / 428000-0660
= MAGNETI MARELLI 63280071
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Information:
Voltage 12
KW 2.0
A = Mount flange 76.00
B = Drive distance 21.00
F = Distance / Back 169.00
G = Distance / Front 57.00
H = Nbr of teeth 11
B+ M8
Gear type Gr
O = Distance 105.00
Rotation Cr
Nbr of mounting holes 2 (2)
Plug type 30h M5
R = Total length mm 232.00
Generic Brand
= BMW 12417788680 / 12417788682 / 7788680
= DENSO 7788680
= MAGNETI MARELLI 63280071
fitsBMW :
3 | 330 | 3.0 | Diesel | 2003 03 | - | M57D30(306D2) | Diesel | 150 | 204 | Coupé | 2993 | 6 | E46 | |
3 | 330 | 3.0 | Diesel | 2003 03 | 2005 02 | M57D30(306D2) | Diesel | 150 | 204 | 2993 | 6 | E46 | ||
3 | 330 | 3.0 | Diesel | 2003 03 | 2005 02 | M57D30(306D2) | Diesel | 150 | 204 | Break | Xdrive | 2993 | 6 | E46 |
3 | 330 | 3.0 | Diesel | 2005 08 | - | M57D30(306D2) | Diesel | 150 | 204 | Décapotable | 2993 | 6 | E46 | |
3 | 330 | 3.0 | Diesel | 2003 03 | 2005 02 | M57D30(306D2) | Diesel | 150 | 204 | Xdrive | 2993 | 6 | E46 | |
3 | 330 | 3.0 | Diesel | 2003 03 | 2005 02 | M57D30(306D2) | Diesel | 150 | 204 | Break | 2993 | 6 | E46 | |
5 | 525 | 2.5 | Diesel | 2004 06 | - | M57N256D4 | Diesel | 130 | 177 | Break | 2497 | 6 | E61 | |
5 | 525 | 2.5 | Diesel | 2004 06 | - | M57D25TU | Diesel | 130 | 177 | Break | 2497 | 6 | E61 | |
5 | 530 | 3.0 | Diesel | 2004 06 | - | M57D30 (306D2) | Diesel | 160 | 218 | Break | 2993 | 6 | E61 | |
5 | 525 | 2.5 | Diesel | 2004 06 | - | M57N256D4 | Diesel | 130 | 177 | 2497 | 6 | E60 |
5 | 535 | 3.0 | Diesel | 2004 09 | - | M57D30 (306D4) | Diesel | 200 | 272 | Break | 2993 | 6 | E61 |
5 | 525 | 2.5 | Diesel | 2004 06 | - | M57N256D4 | Diesel | 130 | 177 | 2497 | 6 | E60 | |
5 | 525 | 2.5 | Diesel | 2004 12 | - | M57N256D4 | Diesel | 120 | 163 | Break | 2497 | 6 | E61 |
5 | 530 | 3.0 | Diesel | 2003 07 | 2010 03 | M57D30 (306D2) | Diesel | 155 | 211 | 2993 | 6 | E60 | |
5 | 530 | 3.0 | Diesel | 2003 07 | 2010 03 | M57D30 (306D3) | Diesel | 155 | 211 | 2993 | 6 | E60 | |
5 | 525 | 2.5 | Diesel | 2004 06 | - | M57D25TU | Diesel | 130 | 177 | 2497 | 6 | E60 | |
5 | 535 | 3.0 | Diesel | 2004 09 | - | M57D30 (306D4) | Diesel | 200 | 272 | 2993 | 6 | E60 | |
5 | 530 d | 3.0 | Diesel | 2003 07 | - | M57D30 (306D2) | Diesel | 160 | 218 | 2993 | 6 | E60 | |
7 | 730 | 3.0 | Diesel | 2002 10 | - | M57D30 (306D3) | Diesel | 155 | 211 | 2993 | 6 | E65, E66 | |
7 | 730 | 3.0 | Diesel | 2002 10 | - | M57D30 (306D2) | Diesel | 160 | 218 | 2993 | 6 | E65, E66 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
