Starter BOSCH 0001261041 for Renault VI 410.25 / Volvo FM9 / FMX 410
Replacing | |
---|---|
0001261041 | Bosch |
20397219 | Volvo |
5001866702 | Renault |
7420732977 | Renault |
7421598449 | Renault |
85000148 | Volvo |
860822 | Butec |
CS1495 | HC-PARTS |
M009T61471 | Mitsubishi |
M9T61471AM | Mitsubishi |
Features

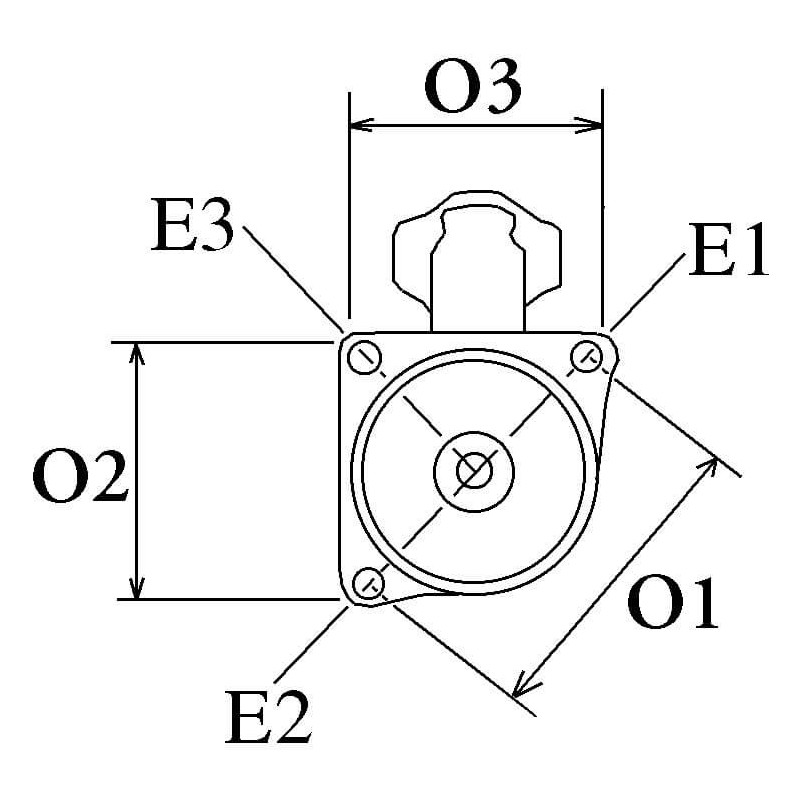

Physical information | ||
---|---|---|
H | No./teeth | 11,13 |
P | Rotation | CW |
N | Gear type | GR |
A | Mount. flange | 89.00 |
I | B+ | M10 |
No./mount. holes | 3 (0) | |
B | Drive dist. | 47.50 |
E | Mount. holes | 11.00 |
E | Mount. hole 2 | 11.00 |
E | Mount. hole 3 | 11.00 |
F | Dist./back | 260.50 |
G | Dist./front | 52.25 |
S | B- | M10 |
K | Thread length mm | 21.50 |
M | Mount. bracket | No |
O | Dist. mm | 89.80 |
O | Dist. 2 | 89.80 |
O | Dist. 3 | 127.00 |
R | Total length mm | 344.00 |
Source | Bosch |
Electrical information | ||
---|---|---|
Voltage | 24 | |
Kw | 5.5 |
for :
Brand | Model | Tipo | Year |
RENAULT | 370.18 10.8 | [DXi11] | 01/10/05 |
RENAULT | 370.26 10.8 | [DXi11] | 01/10/05 |
RENAULT | 370.32 10.8 | [DXi11] | 01/10/05 |
RENAULT | 380.18 10.8 | [DXi11] | 01/02/13 |
RENAULT | 410.18 10.8 | [DXi11] | 01/10/05 |
RENAULT | 410.24 10.8 | [DXi11] | 01/10/05 |
RENAULT | 410.25 10.8 | [DXi11] | 01/10/05 |
RENAULT | 410.26 10.8 | [DXi11] | 01/10/05 |
RENAULT | 410.32 10.8 | [DXi11] | 01/10/05 |
RENAULT | 450.18 10.8 | [DXi11] | 01/10/05 |
RENAULT | 450.24 10.8 | [DXi11] | 01/10/05 |
RENAULT | 450.25 10.8 | [DXi11] | 01/10/05 |
RENAULT | 450.26 10.8 | [DXi11] | 01/10/05 |
RENAULT | 450.32 10.8 | [DXi11] | 01/10/05 |
VOLVO | 260 9.4 | [D9B260] | 01/06/06 |
VOLVO | 310 9.4 | [D9B310] | 01/06/06 |
VOLVO | 360 9.4 | [D9B360] | 01/06/06 |
VOLVO | B 9 9.4 | [D9B310] | 01/09/05 |
VOLVO | B 9 9.4 | [D9B360] | 01/09/05 |
VOLVO | FM 300 9.4 | [D9A300] | 01/09/05 |
VOLVO | FM 300 9.4 | [D9B300] | 01/09/05 |
VOLVO | FM 330 10.8 | [D11C330] | 01/04/12 |
VOLVO | FM 330 10.8 | [D11K330] | 01/04/12 |
VOLVO | FM 370 10.8 | [D11C370] | 01/04/12 |
VOLVO | FM 370 10.8 | [D11K370] | 01/04/12 |
VOLVO | FM 410 10.8 | [D11C410] | 01/04/12 |
VOLVO | FM 410 10.8 | [D11K410] | 01/04/12 |
VOLVO | FM 450 10.8 | [D11C450] | 01/04/12 |
VOLVO | FM 450 10.8 | [D11K450] | 01/04/12 |
VOLVO | FM 9/260 9.4 | [D9A260] | 12.2001-09.2005 |
VOLVO | FM 9/300 9.4 | [D9A300] | 12.2001-09.2005 |
VOLVO | FM 9/340 9.4 | [D9A340] | 12.2001-09.2005 |
VOLVO | FM 9/340 9.4 | [D9A340] | 12.2001-08.2005 |
VOLVO | FM 9/380 9.4 | [D9A380] | 12.2001-09.2005 |
VOLVO | FMX 330 10.8 | [D11C330] | 01/09/13 |
VOLVO | FMX 330 10.8 | [D11K330] | 01/09/13 |
VOLVO | FMX 370 10.8 | [D11C370] | 01/09/13 |
VOLVO | FMX 370 10.8 | [D11K370] | 01/09/13 |
VOLVO | FMX 410 10.8 | [D11C410] | 01/09/13 |
VOLVO | FMX 410 10.8 | [D11K410] | 01/09/13 |
VOLVO | FMX 450 10.8 | [D11C450] | 01/09/13 |
VOLVO | FMX 450 10.8 | [D11K450] | 01/09/13 |
