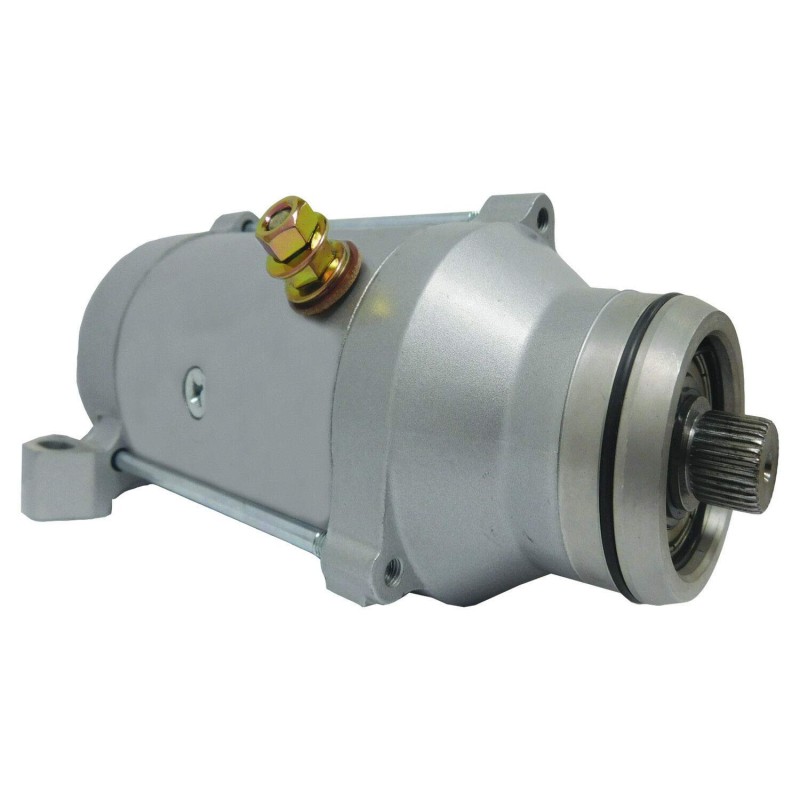

Starter
CAUTION 13-TOOTH MODEL
Replacing |
||
|---|---|---|
| 31200-371-005 | HONDA | |
| 31200-371-505 | HONDA | |
| 31200-463-008 | HONDA | |
| 31200-463-405 | HONDA | |
NO CORE EXCHANGE NEEDED
Information:
Electrical Information |
||
|---|---|---|
| Voltage | 12 | |
| KW | 0.6 | |

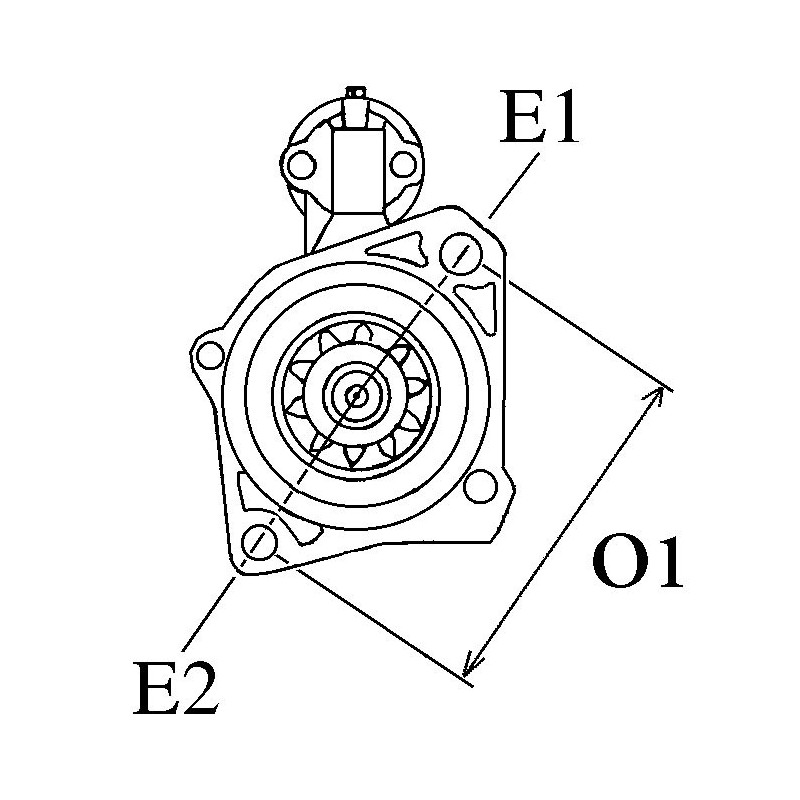

Physical Information |
||
|---|---|---|
| A | Mount flange | 46.00 |
| E | Mounting holes | 6.82 |
| E | Mounting holes 2 | 6.82 |
| B | Drive distance | 47.00 |
| F | Distance / Back | 140.00 |
| G | Distance / Front | 47.00 |
| H | Nbr of teeth | 13 |
| I | B+ | M6 |
| N | Gear type | Gr |
| O | Distance mm | 143.00 |
| P | Rotation | CW |
| R | Total length mm | 188.00 |
Replacing |
|
|---|---|
| 31200-371-005 | HONDA |
| 31200-371-505 | HONDA |
| 31200-463-008 | HONDA |
| 31200-463-405 | HONDA |
generic brand
Mounted on :
| GL | GL1100 | 1.0 | Unleaded | - | - | 0 | 0 | Gold Wing | 1084 |
| HONDA | GL1100 Gold Wing 82-80 1084CC Misuba System |
| HONDA | GL1100A Gold Wing Aspencade 83-82 1084CC MITSUBA System |
| HONDA | GL1100l Gold Wing Interstate 83-80 1084CC MITSUBA System |
| HONDA | GL1000 Gold Wing MITSUBA System |
| HONDA | GL1000LTD Gold Wing MITSUBA System |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
